CH4HS

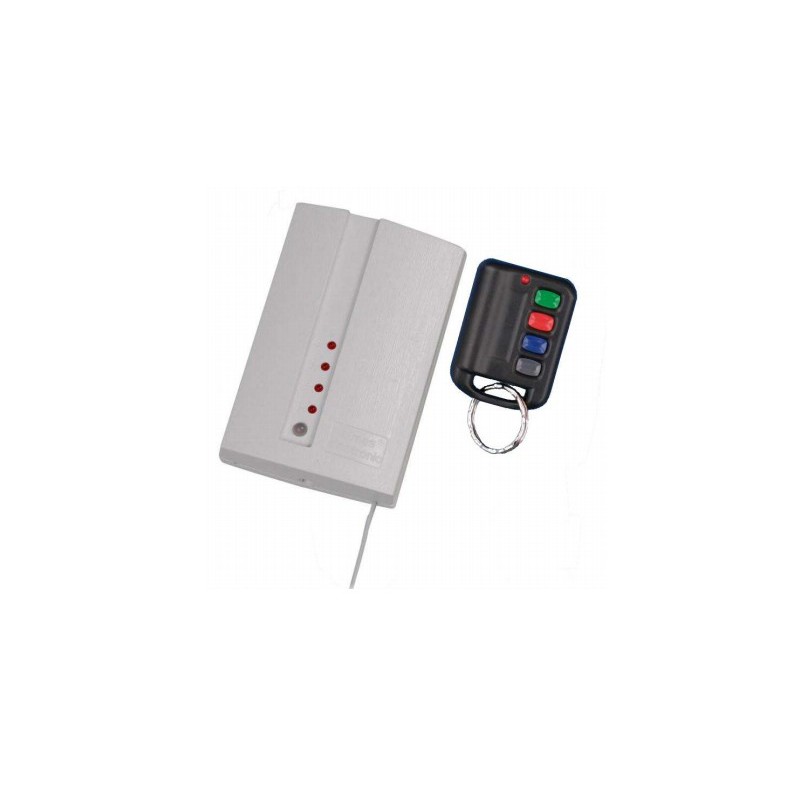

ELMES Wireless System

Product reference: ELU4HS

Four channel wireless control set;
transmitter: 1 unit;
receiver: 1 unit;
operating range: up to 200m.

Read more

At stores prices may vary

Price:

€40.47

€33.45 tax excl.

We have 3 qty.
Delivery in 1-2 business days

Product information

Transmitter:

EU standards compliant 433,92MHz transmitter;
powered by miniature 12V GP23A type battery (CH4H) or 9V alkaline battery (CH4H200);
external dimensions: (L/W/D)50/39/14mm (CH4H), 113/33/21mm (CH4H200)

Receiver:

receiver super regenerative (CH4HR) or super heterodyne (CH4HRhet);
power supply 12VDC ±15%, standby current 20mA plus 40mA on relays set;
four relay outputs NO/NC handling 60VA (128VAC/1A) each;
outputs' relay set on time in time-lapse mode 0,5s up to 4 hours;
anti-sabotage TAMPER switch with wire terminals;
operating temperature range: 0 do +40ºC (-20 to +40ºC for CH4HRhet);
transmitter's external dimensions: (L/W/D) 96/63/28mm.
