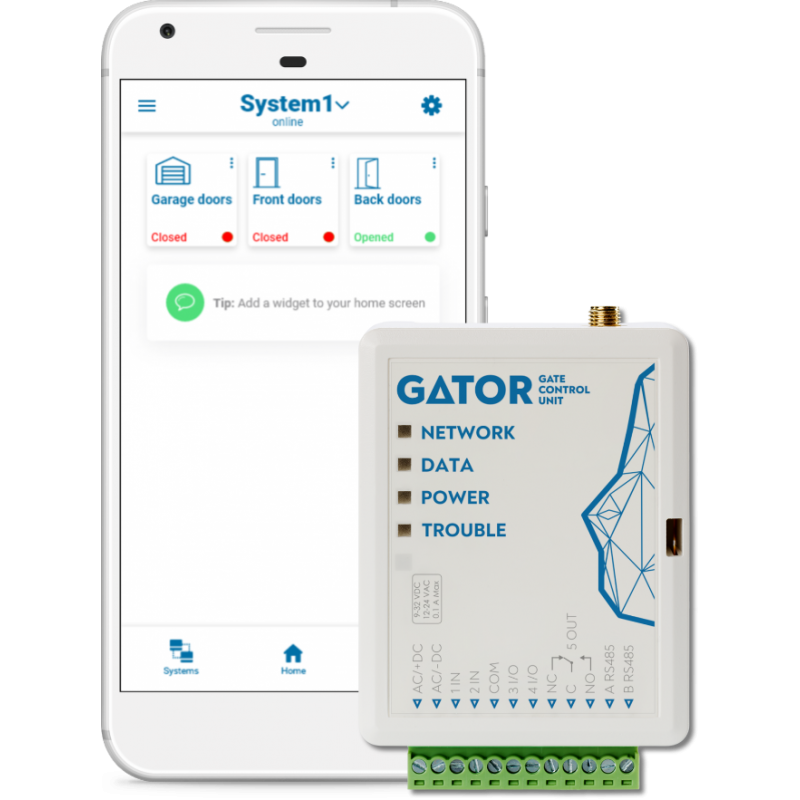

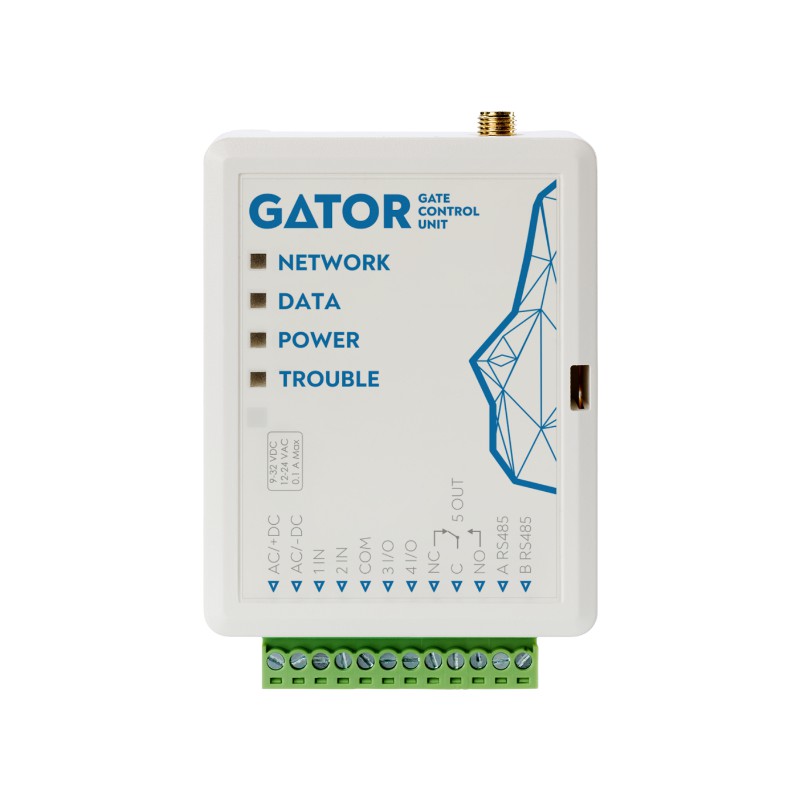

Gate controller (GV17) GATOR

Gate controllers
Product reference: PCGV17
  • Gate controller;
  • Antenna included;
  • Control of switching relay outputs remotely via GSM network or Protegus app;
  • 1 Relay for equipment control;
Read more
At stores prices may vary
Price:
€98.42
€81.34 tax excl.
Favourite

Product information

Remotely control gates and other equipment with Protegus app, phone call or SMS.

Features:

  • One 1A relay and two PGM outputs to control
    any device.
  • Free user management and event history in Protegus app.
  • Remote control with:
    • Protegus app (iOS, Android, Web)
    • Phone call (cost-free, device rejects incoming calls)
    • SMS messages
  • Remote setup – add users, and change settings with:
    • TrikdisConfig
    • Protegus app
    • SMS commands
  • Easy installation – insert a SIM and connect the controller to device you want to control.



Specifications

Power supply voltage

9-32 V DC, 12-24 V AC

Current consumption

50 mA (standby)

Up to 200 mA (transmitting)

Relay

1 (1A 30 V DC, 0.5A 125 V AC)

Number of inputs and outputs

2 inputs

2 double purpose contacts for setting to either input or output (50mA) mode

Input type

NC, NO or EOL=10kΩ (settable)

Buffer for unsent events

Up to 60 events

Event log memory

Up to 5000 events

Users, who can control

Up to 997 users

Users, who can receive events by SMS

Up to 7 users

2G GSM modem frequencies

850 / 900 / 1800 / 1900 MHz

3G UMTS modem frequencies

800 / 850 / 900 / 1900 / 2100 MHz

Operating environment

Temperature from -20 °C to 50 °C, relative humidity up to 80% at +20 °C

Dimensions

65 x 77 x 25 mm



Features

Type GSM

Sertificates
