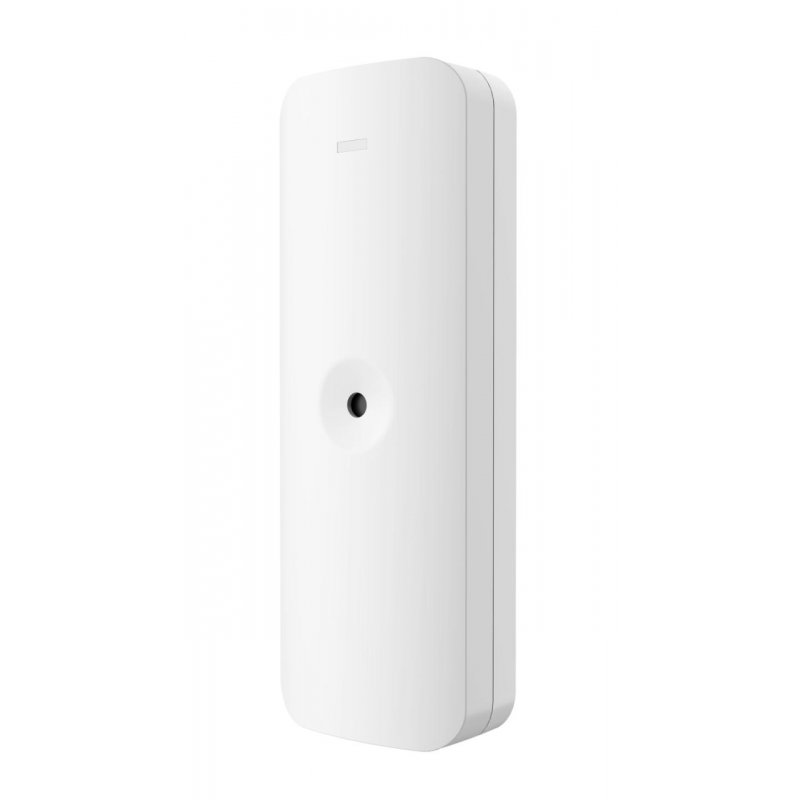

Wired Glass Break Detector Ellipse DS-PDBG8-EG2

Product reference: SDDSPDBG8EG2

At stores prices may vary

Price:

€12.96

€10.71 tax excl.

Product information

Specifications:

Detection Performance
Detection Method	Acoustic Sensor
Detection Range	8m
Detection Angle	120°
Glass Break Sensitivity	Potentiometer Adjustment
Glass Type	Float; Plate; Tampered; Wired; Laminated Leaded; Double Glazing
Glass Thickness	2.4mm to 6.4mm
Glass Size	0.3m x 0.3m to 3m x 3m
Feature
Digital Processing	Support
Tamper Protection	Front
Interface
Alarm Output	Normally Closed
LED Indicator	Red(High Frequency Trigger) Green(Low Frequency Trigger) Blue(Alarm)
Transmission
Transmission Method	Wired
Electrical Characteristics
Power Supply	9 to 16 VDC
Typical Voltage	12V
Power Consumption	Maximum current：25mA @12VDC Quiescent current：25mA @12VDC
General
Operation Temperature	-10°C to 55°C
Storage Temperature	-20°C to 60°C
Operation Humidity	10% to 90%
Dimension(WxHxD)	38.8 mm × 107 mm × 22.5 mm
Weight	49.5g
Mounting Method	Wall; Ceiling
Application Scenario	Indoor
