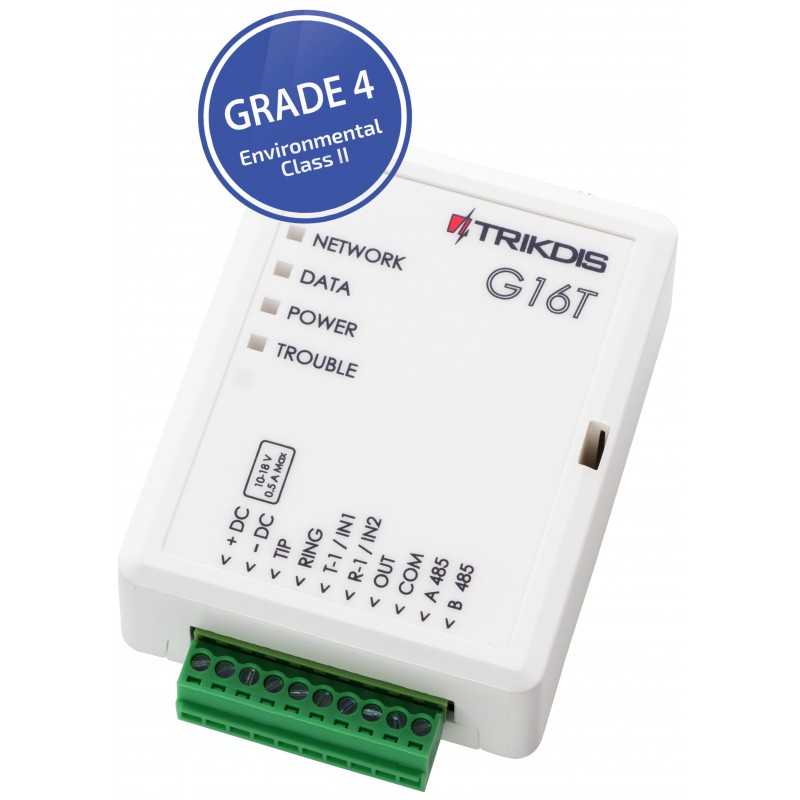

GSM communicator G16T (2G) with antenna

Product reference: CEG16T

The communicator is designed to transmit alarm control panel notifications to a monitoring station via GSM communication channels.

At stores prices may vary

Price:

€115.63

€95.56 tax excl.

Product information

GSM communicator G16T connects to any alarm control panel that has a telephone communicator.

It transmits full event information to the monitoring station.

It works with the Protegus app. Users can arm/disarm their security system remotely and receive event notifications.

Features

Connects to the control panel telephone communicator:

Connects to the alarm control panel telephone communicator using 2 or 4 wires.
When connected with 4 wires, the phone line between the panel and communicator is monitored.

Sends events to the monitoring station receiver:

Sends events to TRIKDIS software or hardware receivers that work with any monitoring software.
Can send events to SIA DC-09 receivers.
The first and second communication channels can operate in parallel, allowing the communicator to send events to two receivers at the same time.
Backup channel used when the primary channel connection is lost.
Event transmission to the station via SMS messages. This is especially useful because it works even when IP communication fails in the mobile operator’s network.
Sends events to the monitoring station receiver and operates with the Protegus app simultaneously. Event transmission to the station has priority.

Works with the Protegus app:

Push notifications and special sound alerts for events
Remote arming/disarming
Control of connected devices (lights, gates, air conditioning, heating, garden watering, etc.)
Temperature monitoring (with iO or iO-WL expander)
Different user permissions for administrator, installer, and invited user
Users can also receive event notifications via SMS or phone call

Easy to install:

Controllable outputs and inputs:

1 output controlled via Protegus app / SMS
2 selectable input types: NC; NO; NC/EOL; NO/EOL; NC/DEOL; NO/DEOL
Add additional inputs and controllable outputs using wired and wireless iO expanders

Parameter	Description
2G modem frequencies	850 / 900 / 1800 / 1900 MHz
3G modem frequencies	800 / 850 / 900 / 1900 / 2100 MHz
4G modem frequencies	Depends on the region
Power supply voltage	DC 10–18 V
Operating current	60–100 mA (idle) Up to 250 mA (during data transmission)
Transmission protocols	TRK, DC-09_2007, DC-09_2012
Message encryption	AES 128
Memory	Up to 60 messages
Inputs	2, selectable type: NC; NO; NC/EOL; NO/EOL; NC/DEOL; NO/DEOL
Output	1, OC type, up to 0.15 A DC, max 30 V
Configuration	Via TrikdisConfig PC software over USB Mini-B or remotely Remotely via SMS messages
Operating conditions	Temperature: -10 °C to 50 °C, relative humidity up to 80% at +20 °C
Dimensions & weight	92 × 65 × 26 mm; 80 g

Type

GSM
