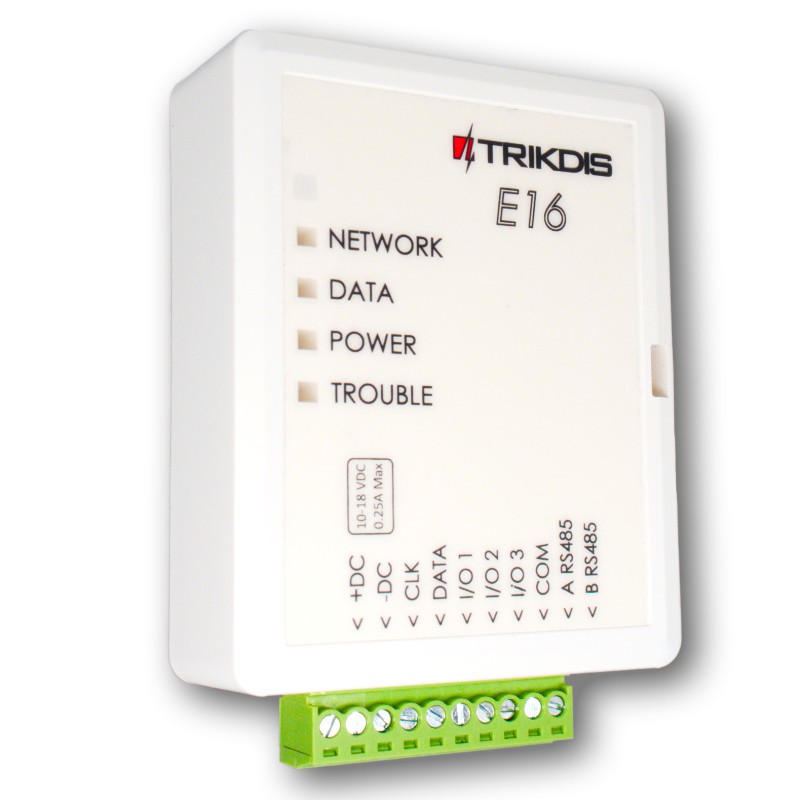

Ethernet communicator E16

GSM Comunicators and Transmitters

Product reference: PC E16

Sends events to TRIKDIS software or hardware receivers that work with any monitoring software.
Can send event messages to SIA DC-09 receivers.
Connection supervision by polling to IP receiver every 30 seconds (or by user-defined period).
The backup channel, that will be used if connection with the primary channel is lost.
With parallel communication channels events can be sent to two receivers at the same time.
When Protegus service is enabled, events are first delivered to CMS, and only then are sent to app users.

At stores prices may vary

Price:

€72.60

€60.00 tax excl.

Product information

Parameter	Description
Dual purpose terminals [IN/OUT]	3, can be set as either NC; NO; NC/EOL; NO/EOL; NC/DEOL; NO/DEOL (2,2 kΩ) type inputs or open collector (OC) type outputs with current up to 0,15 A, 30 VDC max. Expandable with iO series expanders.
Power supply voltage	10-18 V DC
Current consumption	100 mA (on standby) Up to 250 mA (while sending data)
Ethernet connection	IEEE802.3, 10 Base-T, RJ45 socket
Transmission protocols	TRK, DC-09_2007, DC-09_2012
Memory	Up to 60 messages
Changing settings	With TrikdisConfig computer program remotely or locally via USB Mini-B port
Operating environment	Temperature from -10 °C to 50 °C, relative humidity – up to 80% at +20 °C
Communicator dimensions	88 x 65 x 26 mm
Weight	80 g
