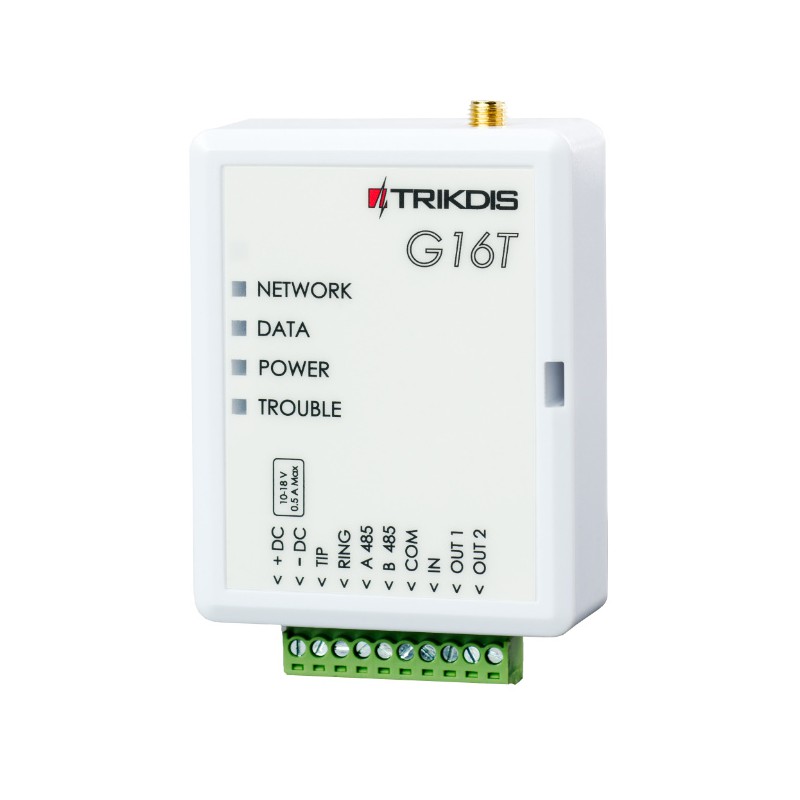

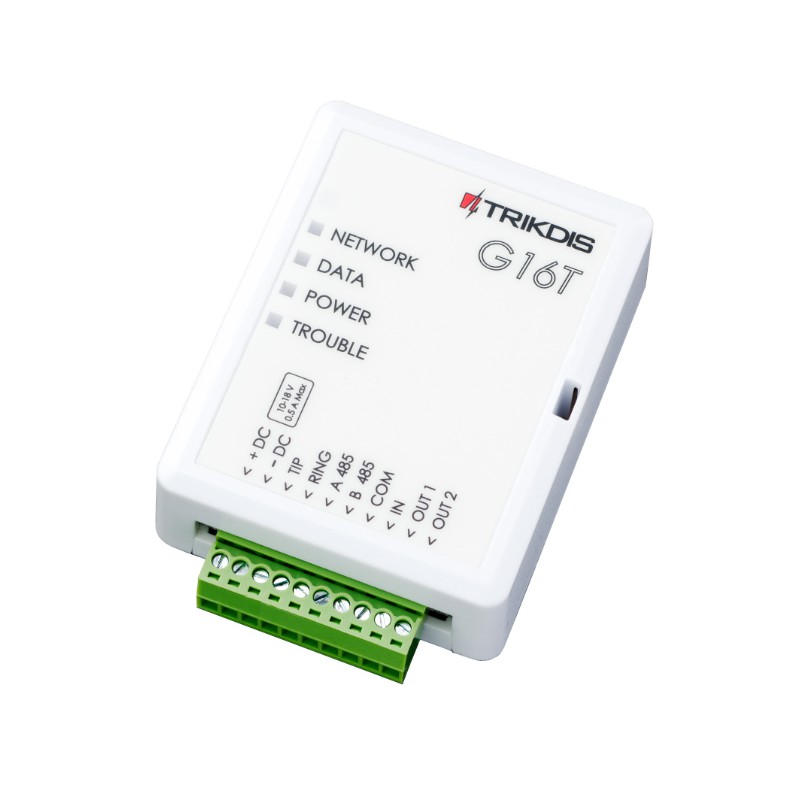

GSM module G16T (4G) with antenna

GSM Comunicators and Transmitters

Product reference: PCG16T4G/ANT04

Connects to any alarm panel which has a landline dialer.
Transmits full event information to the security company’s monitoring station.
Works with Protegus app. Users can arm/disarm their alarm system remotely and receive notifications about events.
With 4G modem.

At stores prices may vary

Price:

€185.72

€153.49 tax excl.

Favourite

We have 5 qty.
Delivery in 1-2 business days

Product information

Cellular communicator G16T can be connected to any alarm panel that has a landline dialer and supports dialing in Contact ID protocol with DTMF tones.

The communicator can transmit full event information to the security company’s monitoring station receiver.

The communicator works with the Protegus 2 app. Users can control their alarm system remotely and receive notifications about events. Protegus2 app works with all security alarm panels to which the communicator is connected to, regardless of manufacturer. The communicator can transmit event notifications to the Central Monitoring Station and work with Protegus 2 simultaneously.

Cellular communicators G16T are certified to the highest EN50131 Grade 4 security rating.

Features

Connects to panel’s landline dialer:

Communicator can be connected to the control panel’s landline dialer with 2 or 4 wires.
When connected with 4 wires, the landline between the panel and the communicator will be monitored.

Sends events to monitoring station receiver:

Sends events to TRIKDIS software or hardware receivers that work with any monitoring software.
Can send event messages to SIA DC-09 receivers.
Can send event messages to SUR-GARD receivers. The annex has a table for converting Contact ID codes to SIA codes.
Connection supervision by polling to IP receiver every 30 seconds (or by user-defined period).
Backup channel, that will be used if connection with the primary channel is lost.
Events can be reported to CMS with SMS messages. SMS will be sent even if the data connection stops working in the mobile operator network.
With parallel communication channels events can be sent to two receivers at the same time.
When Protegus 2 service is enabled, events are first delivered to CMS, and only then are sent to app users.

Works with Protegus 2 app:

“Push” and special sound notifications informing about events.
Remote system Arm/Disarm.
Remote control of connected devices (lights, gates, ventilation systems, heating, sprinklers, etc.).
Different user rights for administrator, installer and user.
Users can also be informed about events via SMS and phone calls.

Notifies users:

Users can be notified about events not only with Protegus 2 app, but also with SMS messages and a call.

Controllable outputs and inputs:

3 double I/O terminals that can be set either as input (IN) or controllable output (OUT) terminals.
Outputs controlled by the Protegus 2 app and SMS.
Add additional inputs and controllable outputs with iO-8.

Quick setup:

Settings can be saved to file and quickly written to other communicators.
Two access levels for configuring the device for CMS administrator and for installer.
Remote configuration and firmware updates.

Specifications

Parameter	Description
Connects to panel	Landline dialer (TIP RING contacts)
Dual purpose terminals [IN/OUT]	2, can be set as either NC; NO; NC/EOL; NO/EOL; NC/DEOL; NO/DEOL (10 kΩ) type inputs or open collector (OC) type outputs with current up to 0,15 A, 30 VDC max. Expandable with iO series expanders
Output	1, OC type, up to 0,15 A, 30 V max Expandable with iO series expanders
LTE FDD	B1/B2/B3/B4/B5/B8/B12/B13B18/B19/B20/B25/B28
LTE TDD	B39 (only Cat M1)
Cat M1/Cat NB1	B1/B2/B3/B4/B5/B8/B12/B13B18/B19/B20/B25/B28
GSM	850 / 900 / 1800 /1900MHz
Power supply voltage	10-18 V DC
Current consumption	60-100 mA (on standby) Up to 250 mA (while sending data)
Transmission protocols	TRK, DC-09_2007, DC-09_2012, TL150
Message encryption	AES 128
Changing settings	With TrikdisConfig computer program remotely or locally via USB Mini-B port Remotely with SMS messages
Operating environment	Temperature from -10 °C to 50 °C, relative humidity – up to 80% at +20 °C
Communicator dimensions	92 x 65 x 26 mm
Weight	80 g
