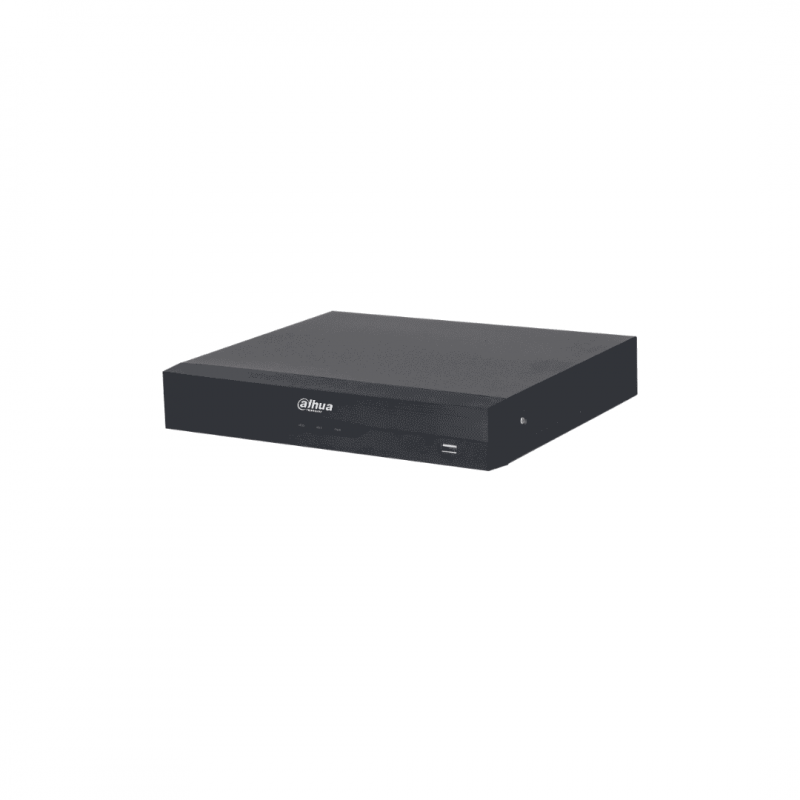

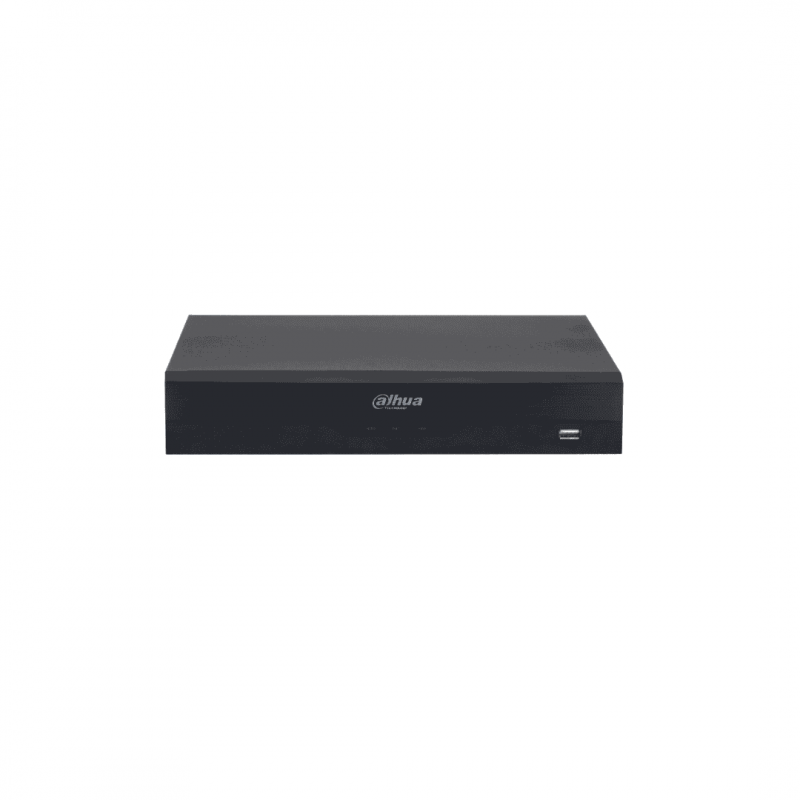

Digital Video Recorder XVR5108HS-4KL-I3/T, 8ch. 1HDD

Product reference: MUXVR5108HS-4KL-I3/T

8CH Penta-brid 4K/5MP Compact 1U WizSense Digital Video Recorder.

Supports HDCVI, AHD, TVI, CVBS and IP camera inputs.
Two-way talk over coaxial cable enables communication between the camera, recorder and client.
Includes AI functions such as AcuPick target search, perimeter protection (tripwire and intrusion detection), face recognition and SMD Plus for accurate human and vehicle detection.
AI Coding helps reduce storage and bandwidth while keeping important video details.
Supports up to 16 IP cameras with resolutions up to 8 MP and 128 Mbps incoming bandwidth.
Also supports Wi-Fi cameras and Smart H.265+ / H.265 dual-stream video compression.

At stores prices may vary

Price:

€396.88

€328.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

Digital Video Recorder XVR5108HS-4KL-I3/T, 8ch. 1HDD

Series Overview
The XVR5000-4KL-I3/T series raises the standard for video recorders with its advanced high-resolution design, offering flexibility for a wide range of applications and projects with different scales and budgets. Its strong compatibility with 5 MP cameras ensures clear and vivid live video, making it highly recommended for use with 5 MP cameras. Equipped with multiple AI functions such as AcuPick, EPTZ and privacy protection, this series helps streamline operations and reduce labor and operational costs, lowering the overall Total Cost of Ownership (TCO).

Key Functions

Two-way Talk
Enables seamless communication between the camera, client and recorder over coaxial cable, providing instant voice intercom and timely audio alerts.

Face Recognition
Dahua Face Recognition technology extracts facial features from captured images and compares them with those stored in the face database.
Note: Face Recognition conflicts with SMD Plus and Perimeter Protection.

Perimeter Protection
Automatically filters false alarms caused by animals, leaves, bright lights and other environmental factors, enabling more accurate target detection and alarm triggering.

AcuPick
An advanced search technology that uses back-end intelligence to quickly locate targets in large volumes of video data with high precision.

SMD Plus
Dahua Smart Motion Detection technology identifies humans and vehicles among motion detection events and filters out irrelevant triggers to provide more accurate alarms.

Enhanced Encoding
Encoding Enhancement mode optimizes video encoding in real time to produce smoother video and improved scene rendering.

Additional Features

8-channel two-way talk over coaxial cable
8-channel AcuPick for analog channels
8-channel AI perimeter protection (tripwire and intrusion detection)
4-channel face recognition for analog channels
8-channel SMD Plus or up to 16-channel SMD by camera
AI Coding for reduced storage and bandwidth usage while preserving video details
Supports HDCVI, AHD, TVI, CVBS and IP video input
Supports up to 16 IP cameras (up to 8 MP) with 128 Mbps incoming bandwidth
Supports Wi-Fi camera access
Smart H.265+ and H.265 dual-stream video compression

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

AcuPick

AcuPick AI by Recorder (Number of Channels)

8 channels

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

8 channels, 10 IVS rules for each channel

Face Detection

Face Attributes

6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)

4 channels (up to 12 face images/s each channel)

Privacy Protection

Privacy Protection Performance of AI by Recorder (Number of Channels)

1 channel

Face Recognition

Face Database Capacity

Up to 10 face databases with 20,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels)

4 channels

SMD

SMD Plus by Recorder

8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD by Camera

16 channels

AI Video Quality Analytics

AI Video Quality Analytics by Recorder

8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white.

Scene Changing

Scene Changing by Recorder

1 channel

Irregular Black Block Masking

Irregular Black Block Masking by Recorder

1 channel

EPTZ

EPTZ by Recorder

1 channel

Audio and Video

Analog Camera Input

8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 4K@25/30 fps; [email protected]/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
2. TVI: 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 16 channels of IPC access
8 IP channels by default + 8 channels (analog channels are converted to IP channels)
Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used.

Encoding Capacity

Encode Enhancement disabled:
Main stream:
the 1st channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);
the 1st channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);
the 1st channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);
the 1st channel 4 MP/3 MP@(1 fps–25/30 fps), others 4 MP/3 MP@(1 fps–15 fps);
4K@(1 fps–8 fps); 4K-N/5 MP@(1 fps-15 fps); 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps)
Sub stream:
960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)
Encode Enhancement enabled:
Main stream:
the 1st, 5th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);
the 1st, 5th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);
the 1st, 5th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);
the 1st, 5th channel 4 MP/3 MP@(1 fps–25/30 fps), others 4 MP/3 MP@(1 fps–15 fps);
4K/6 MP@(1 fps–10 fps); 4K-N/5 MP@(1 fps-15 fps); 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps)
Sub stream:
960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)
*When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used.

Dual-stream

Yes

Video Bit Rate

32 kbps–6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16

Third-party Camera Access

Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 25.06 (Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Record Mode

General; alarm; motion detection; intelligent; POS

Recording Playback

1/4/9

Backup Method

USB device and network

Playback Mode

Instant playback; general playback; event playback; tag playback; smart playback

Alarm

General Alarm

Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm

Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

Face detection; face recognition; perimeter protection; SMD Plus

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

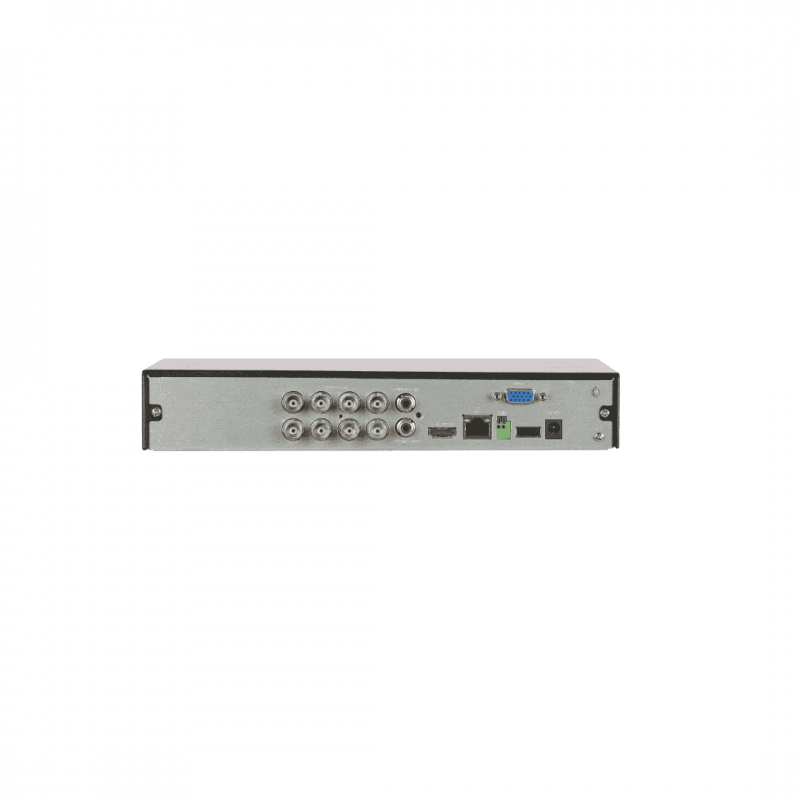

Ports

Audio Input

1-channel RCA
8-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Coaxial two-way talk: 8-channel BNC
Local and network user two-way talk: Shares the same audio input with the first channel

Disk Interface

1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.

RS-485

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI

VGA

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 2 A

Power Consumption

< 10 W (without HDD)

Net Weight

1.23 kg (2.71 lb)

Gross Weight

1.54 kg (3.40 lb)

Product Dimensions

260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H)

Packaging Dimensions

344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30") (W × D × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Installation

Desktop

Certifications

CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

Features

Chanels	8
Internal HDD	1 HDD
Incoming Bandwidth	128 Mbps
AI functionality	Lite AI
