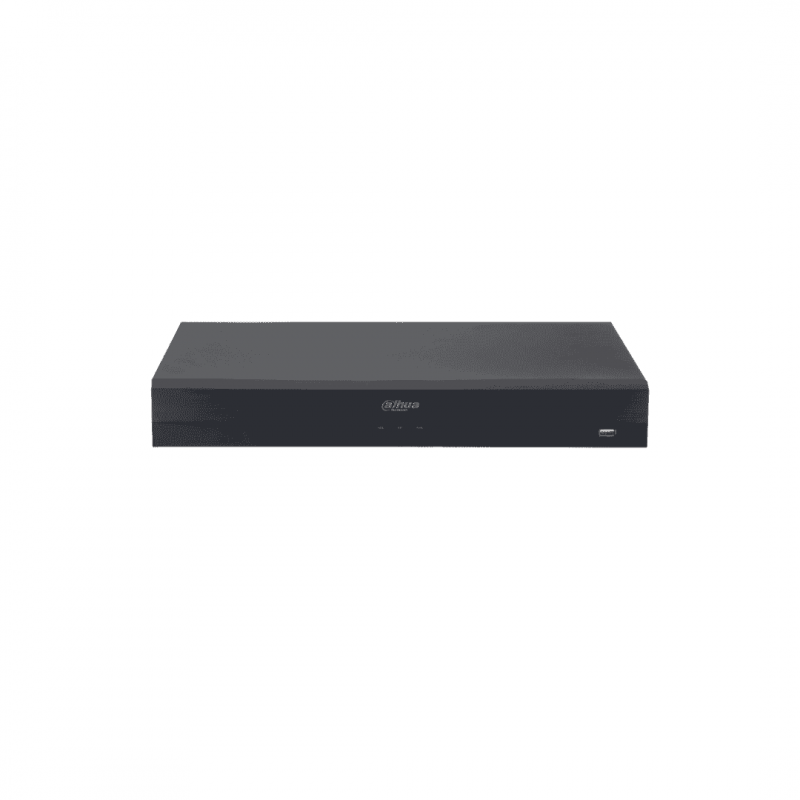

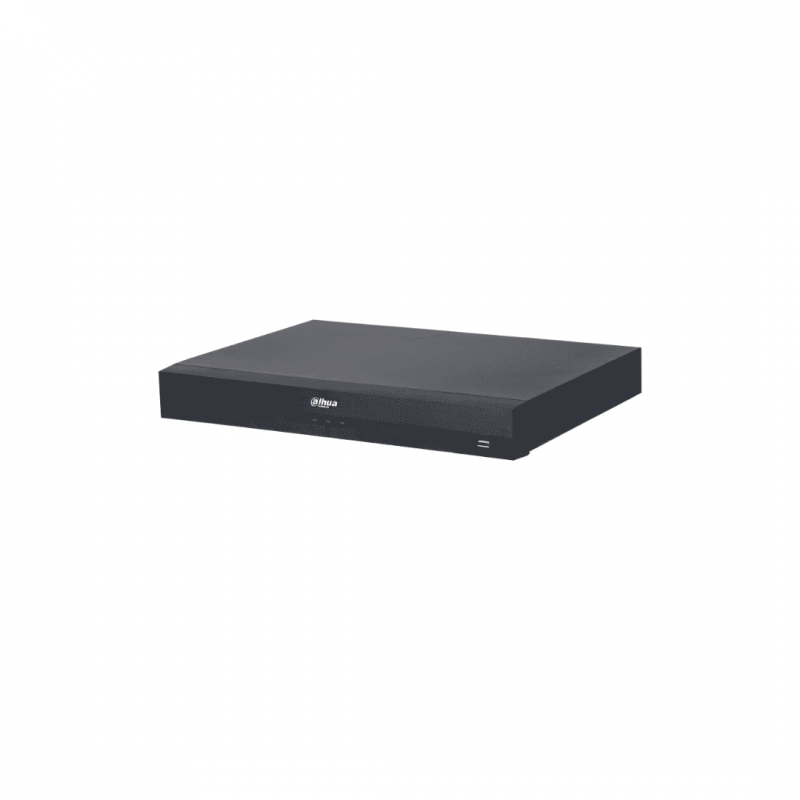

Digital video recorder XVR5216AN-4KL-I3/T, 16ch, 2HDD

Product reference: MUXVR5216AN-4KL-I3/T

16-channel digital video recorder with 1U chassis and 2 HDDs.
Dolynk cloud version: DMSS 2.3.0+ and Dolynk Care 2.53.00+.
16-channel two-way talk over coaxial cable between camera, client, and recorder.
8-channel AcuPick for analog channels improves target retrieval.
8-channel AI perimeter protection supports tripwire and intrusion detection.
4-channel face recognition for analog channels.
16-channel SMD Plus or 32-channel SMD per camera detects humans and vehicles.
16-channel AI Coding saves storage and bandwidth.
Supports HDCVI, AHD, TVI, CVBS, and IP video input.
Supports up to 32 IP cameras, each up to 8 MP.
Supports Wi-Fi cameras.
Smart H.265+ and H.265 dual-stream video compression.

At stores prices may vary

Price:

€786.50

€650.00 tax excl.

Favourite

We have 1 qty.
Delivery in 1-2 business days

Product information

Digital video recorder XVR5216AN-4KL-I3/T, 16ch, 2HDD

Series Overview
The XVR5000-4KL-I3/T series raises the standard for video recorders with advanced high-resolution design. It provides versatility for various applications and projects of different scales and budgets. Strong compatibility with 5MP cameras ensures clear and vivid live video, making it highly recommended for 5MP camera use. The series includes multiple AI features such as AcuPick, EPTZ, and privacy protection, which streamline operations and reduce time and labor costs, contributing to lower Total Cost of Ownership (TCO).

Functions

Two-way talk: enables seamless communication between camera, client, and recorder over coaxial cable with instant voice intercom and timely audio alerts.
Face Recognition: Dahua technology extracts face features and compares them with the face database. Face Recognition conflicts with SMD Plus and Perimeter Protection.
16-channel two-way talk over coaxial cable.
8-channel AcuPick for analog channels improves target retrieval efficiency.
8-channel perimeter protection for analog channels with AI tripwire and intrusion detection.
4-channel face recognition for analog channels.
16-channel SMD Plus or 32-channel SMD per camera provides accurate alarms for humans and vehicles.
16-channel AI Coding saves storage and bandwidth while preserving target details.
Supports HDCVI, AHD, TVI, CVBS, and IP input.
Supports up to 32 IP cameras, each up to 8 MP, with 128 Mbps incoming bandwidth.
Supports Wi-Fi cameras.
Smart H.265+ and H.265 dual-stream video compression.

Perimeter Protection: automatically filters false alarms caused by animals, leaves, bright lights, etc., improving accuracy.

AcuPick: industry-leading search technology quickly locates targets in large video datasets.

SMD Plus: intelligent algorithm categorizes motion-triggered targets and filters non-concerned triggers for effective alarms.

Enhanced Encoding: optimizes video in real-time for smoother playback and better scene rendering.

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

AcuPick

AcuPick AI by Recorder (Number of Channels)

8 channels

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

8 channels, 10 IVS rules for each channel

Face Detection

Face Attributes

6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)

4 channels (up to 12 face images/s each channel)

Privacy Protection

Privacy Protection Performance of AI by Recorder (Number of Channels)

1 channel

Face Recognition

Face Database Capacity

Up to 10 face databases with 20,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels)

4 channels

SMD

SMD Plus by Recorder

16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD by Camera

32 channels

AI Video Quality Analytics

AI Video Quality Analytics by Recorder

16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white.

Scene Changing

Scene Changing by Recorder

1 channel

Irregular Black Block Masking

Irregular Black Block Masking by Recorder

1 channel

EPTZ

EPTZ by Recorder

1 channel

Audio and Video

Analog Camera Input

16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 4K@25/30 fps; [email protected]/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
2. TVI: 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 32 channels of IPC access
16 IP channels by default + 16 channels (analog channels are converted to IP channels)
Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used.

Encoding Capacity

Encode Enhancement disabled:
Main stream:
the 1st, 9th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);
the 1st, 9th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);
the 1st, 9th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);
the 1st, 9th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps);
4K@(1 fps–8 fps); 4K-N/5 MP@(1 fps-15 fps);4M-N/1080p/720p/960H/D1/CIF@(1 fps–25/30 fps)
Sub stream:
960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)
Encode Enhancement enabled:
Main stream:
the 1st, 5th, 9th, 13th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);
the 1st, 5th, 9th, 13th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);
the 1st, 5th, 9th, 13th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);
the 1st, 5th, 9th, 13th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps);
4K/6 MP@(1 fps–10 fps); 4K-N/5 MP@(1 fps-15 fps); 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps)
Sub stream:
960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)
*When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used.

Dual-stream

Yes

Video Bit Rate

32 kbps–6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36

Third-party Camera Access

Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 25.06 (Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Record Mode

General; alarm; motion detection; intelligent; POS

Recording Playback

1/4/9/16

Backup Method

USB device and network

Playback Mode

Instant playback; general playback; event playback; tag playback; smart playback

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm

Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

Face detection; face recognition; perimeter protection; SMD Plus

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

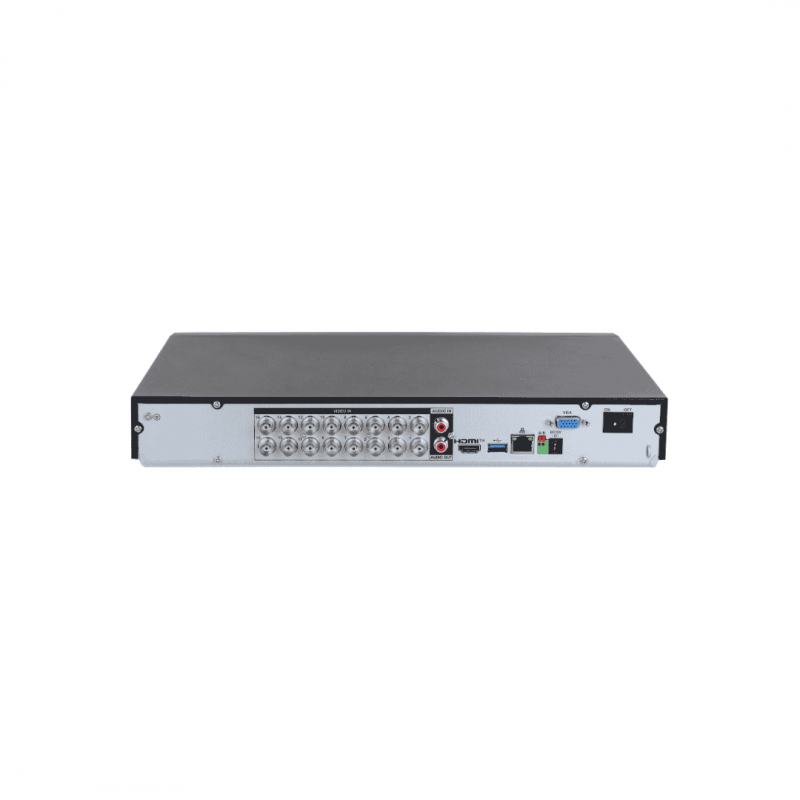

Ports

Audio Input

1-channel RCA
16-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Coaxial two-way talk: 16-channel BNC
Local and network user two-way talk: Shares the same audio input with the first channel

Disk Interface

2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.

RS-485

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI

VGA

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 5 A

Power Consumption

< 15 W (without HDD)

Net Weight

1.75 kg (3.86 lb)

Gross Weight

2.90 kg (6.39 lb)

Product Dimensions

375.0 mm × 289.6 mm × 53.0 mm (14.76" × 11.40" × 2.09") (W × D × H)

Packaging Dimensions

427.0 mm × 137.0 mm × 356.0 mm (16.81" × 5.39" × 14.02") (W × D × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Installation

Desktop

Certifications

CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

Features

Chanels	16
Internal HDD	2 HDD
AI functionality	Lite AI
