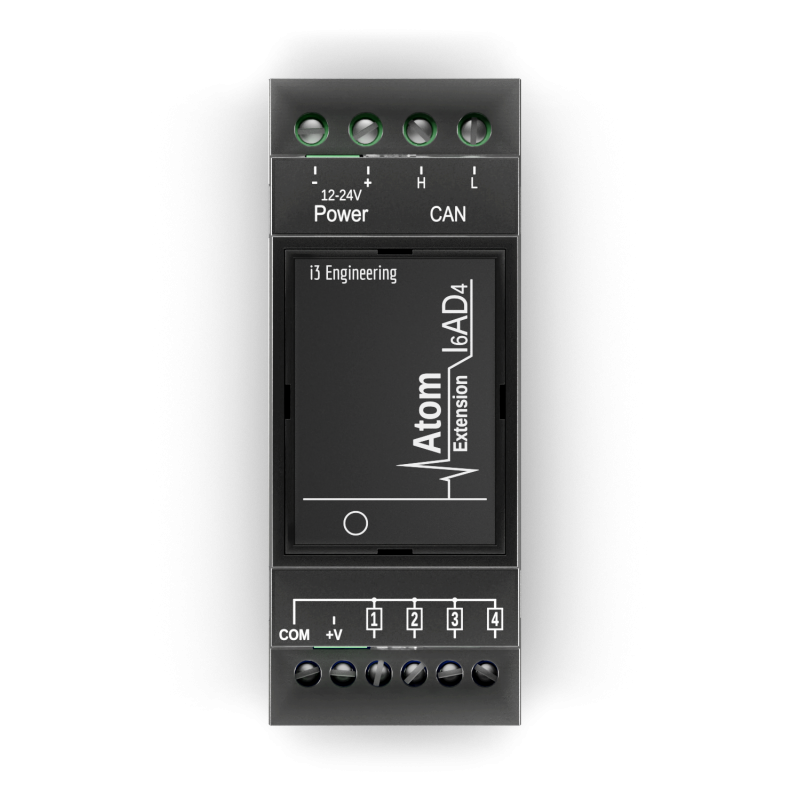

Extension module Atom Extension I6AD4

i3Engineering

Product reference: EP2UAtomI6AD4

Atom Extension module I6AD4 is designed to control 4pcs low-voltage DC loads(strips, lamps).

At stores prices may vary

Price:

€261.36

€216.00 tax excl.

Favourite

We have 3 qty.
Delivery in 1-2 business days

Product information

Module Atom Extension DALI Interfaces:

CAN bus ensures synchronized operation of all Atom series devices
6 inputs for temperature, air quality, water leakage sensors and switches connection
4x200W Leading edge dimming capabilities to control AC loads

Technical Specifications:

Outputs 1-4
AC switching voltage	230V AC
Max switching power	4 x 4A
Max inrush current	40A
Dimming capabilities	✔ (up to 30kHz)
Inputs 1-6
Inputs voltage	0-3.3V
Inputs mode	digital/analog/1-wire
Analog input ADC resolution	12 bit

Power supply

Device power supply voltage (with protection against reverse polarity connection) 12 - 24V DC
Consumption (max) 5W

Other

Mounting type DIN rail (EN 60715) / 2 / 35х90х65mm
Width, DIN units 2 DIN modules
Type of connectors / Recommended wire cross section inputs w/ screws, detachable / 2,5mm2

Features

Module type

Atom 2U

Manufacturer

Control all devices and systems in your home.

Turn regular devices into smart. i3Engineering solution is an ecosystem into which you can integrate lots of “regular” devices and engineering systems, and it is us who make them smart. Any electrician will be able to install the system and configure it using the i3 Home app. And the intuitive interface allows users to change settings in minutes.
