6U Extension module Atom R4DD8

i3Engineering

Product reference: EP6UAtomR4DD8

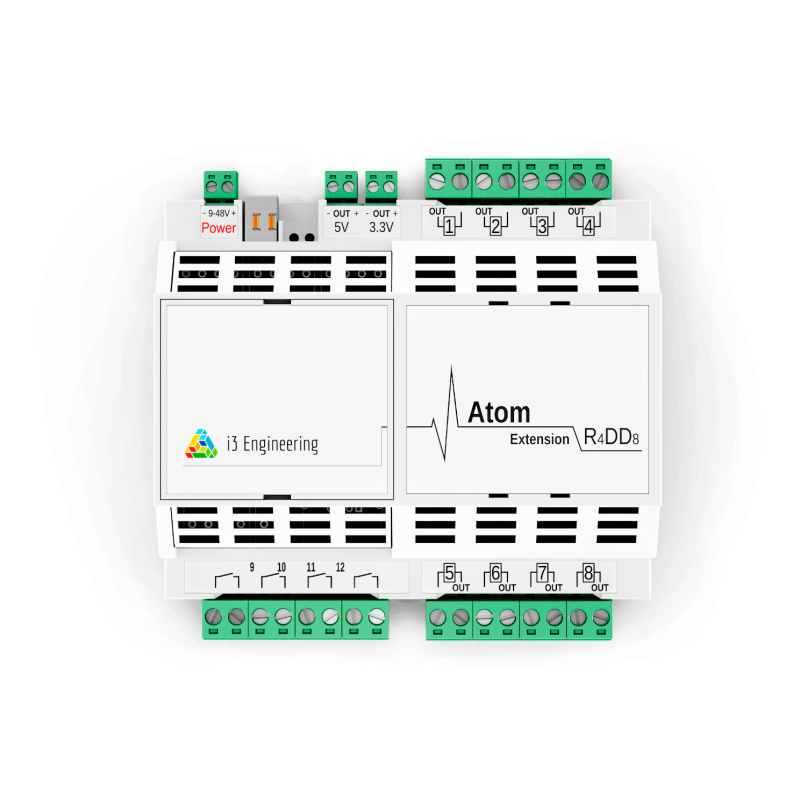

Extension module Atom R4DD8 is designed to control LED strips (single color, RGB, RGBW) and other low-voltage DC loads.

At stores prices may vary

Price:

€573.54

€474.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

6U Extension module Atom R4DD8 features:

CAN bus ensures synchronized operation of all Atom series devices
5V and 3.3V connectors for sensors power supply
4 x 5A relay for connecting electrical appliances
8 x MOSFET-based dimmers with built-in load control sensors to control DC loads

Technical Specifications:

Outputs 1-8
DC switching voltage	0 - 48V
Max switching current	5A
Max inrush current	40A
Built-in current sensors to monitor load operation	✔
Dimming capabilities	PWM / up to 30 kHz
Inputs 9-12
Number of built-in normally opened relays / Active load	4 x 5А 250V AC / 30V DC
Max inrush current	50A

Power supply

Device power supply voltage (with protection against reverse polarity connection) 9 - 48V DC
Output voltage to power the sensors 3.3V (200mА), 5V (200mА)
Consumption (max) 15W

Other

Mounting type DIN rail (EN 60715)
Width, DIN units 6 DIN modules
HxWxL 59х88х105mm
Type of connectors / Recommended wire cross section inputs w/ screws, detachable / 2,5mm2

SERIES ATOM EXTENSION 6U COMPARISON:

Module	IN	OUT	QUANTITIES AND TYPES OF OUTPUTS
R4DD8	-	12	4 relays 8 dim	5A 250V AC / 30V DC 0–48V DC / 5A
R8	-	8	2 relays 6 relays	5A 250V AC / 30V DC 16A 250V AC
R6A12	-	18	6 relays 12 SSR	5A 250V AC / 30V DC 100W 250V AC
AD8A9	-	17	3 SSR 6 SSR 8 dim	100W 250V AC 80W 250V AC 100W 250V AC
R4AD6	-	10	4 relays 6 dim	5A 250V AC / 30V DC 180–250V AC / 300W
I21	21	-	-	-
