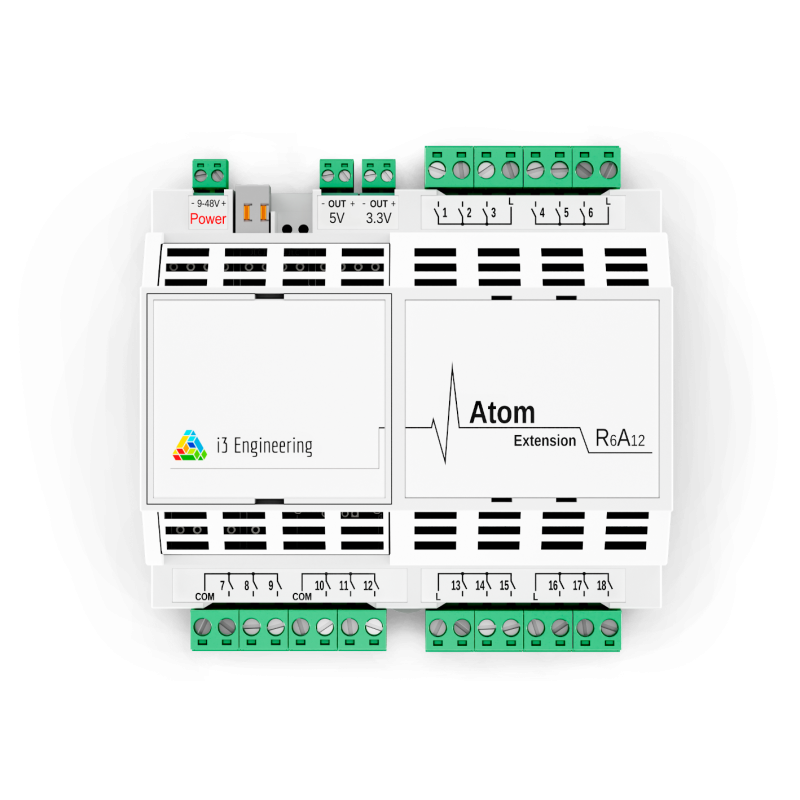

Extension module Atom R6A12 18OUT, 12 SSR

i3Engineering

Product reference: EP6UAtomR6A12

Extension module Atom R6A12 is designed to connect up to 18 devices with the possibility of silent switching of 12 of them. The ideal solution for heating and lighting control.

At stores prices may vary

Price:

€573.54

€474.00 tax excl.

Favourite

Product information

6U Extension module Atom R6A12 features:

CAN bus ensures synchronized operation of all Atom series devices
5V and 3.3V connectors for sensors power supply
6 x 5A relay for connecting electrical appliances
12 x solid-state relays for connecting electrical appliances (up to 100W per channel)

Technical Specifications:

Outputs 1-6, 13-18
AC switching voltage	180 - 250VAC
Number of outputs / Maximum switching power per output	12 x 100W
Outputs 7-12
Number of relay outputs NO / active load	6 x 5А 250V AC / 30V DC
Max inrush current	50A

Power supply

Device power supply voltage (with protection against reverse polarity connection) 9 - 48V DC
Output voltage to power the sensors 3.3V (200mА), 5V (200mА)
Consumption (max) 15W

Other

Mounting type DIN rail (EN 60715)
Width, DIN units 6 DIN modules
HxWxL 59х88х105mm
Type of connectors / Recommended wire cross section inputs w/ screws, detachable / 2,5mm2

SERIES ATOM EXTENSION 6U COMPARISON:

Module	IN	OUT	QUANTITIES AND TYPES OF OUTPUTS
R4DD8	-	12	4 relays 8 dim	5A 250V AC / 30V DC 0–48V DC / 5A
R8	-	8	2 relays 6 relays	5A 250V AC / 30V DC 16A 250V AC
R6A12	-	18	6 relays 12 SSR	5A 250V AC / 30V DC 100W 250V AC
AD8A9	-	17	3 SSR 6 SSR 8 dim	100W 250V AC 80W 250V AC 100W 250V AC
R4AD6	-	10	4 relays 6 dim	5A 250V AC / 30V DC 180–250V AC / 300W
I21	21	-	-	-
