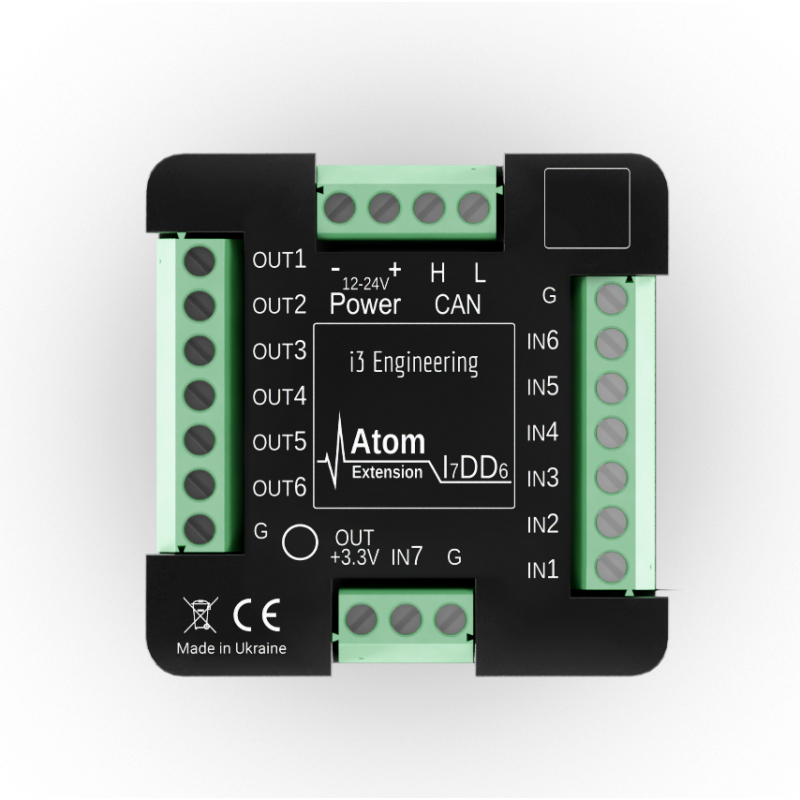

Extension module Atom Socket device i7DD6

i3Engineering

Product reference: EPAtomi7DD6

The Atom Extension I7DD6 is a compact expansion module designed for installation in a wiring box. It can be used to connect 6-button switches with status indication, as well as to control LED strips, furniture lamps, and low-voltage LED lamps.

At stores prices may vary

Price:

€136.73

€113.00 tax excl.

Favourite

We have 2 qty.
Delivery in 1-2 business days

Product information

Atom Socket device i7DD6 features:

CAN bus ensures synchronized operation of all Atom series devices
6x1A dimming outputs built on MOSFET bases to control DC loads
3.3V output for sensors connection
1 inputs with digital, analog, 1-wire interfaces
6 inputs with digital interfaces

Technical Specifications:

Outputs 1-6
DC switching voltage	0-24V DC
Max switching power	6 x 1A
Dimming capabilities	PWM (up to 30kHz)
Inputs 1-6
Inputs voltage	0-3.3V
Inputs mode	digital
Inputs 7
Inputs voltage	0-3.3V
Inputs mode	digital/analog/1-Wire
Analog input ADC resolution	12 bit

Power supply

Device power supply voltage (with protection against reverse polarity connection) 12-2V DC
Consumption (max) 15W

Other

Type of connectors / Recommended wire cross section inputs w/ screws, detachable / 2,5mm2

Manufacturer

Control all devices and systems in your home.

Turn regular devices into smart. i3Engineering solution is an ecosystem into which you can integrate lots of “regular” devices and engineering systems, and it is us who make them smart. Any electrician will be able to install the system and configure it using the i3 Home app. And the intuitive interface allows users to change settings in minutes.
