IDTECK iTDC-X 2-Door Access Control Panel, Expandable to 4 Doors, 26-bit Wiegand

Product information

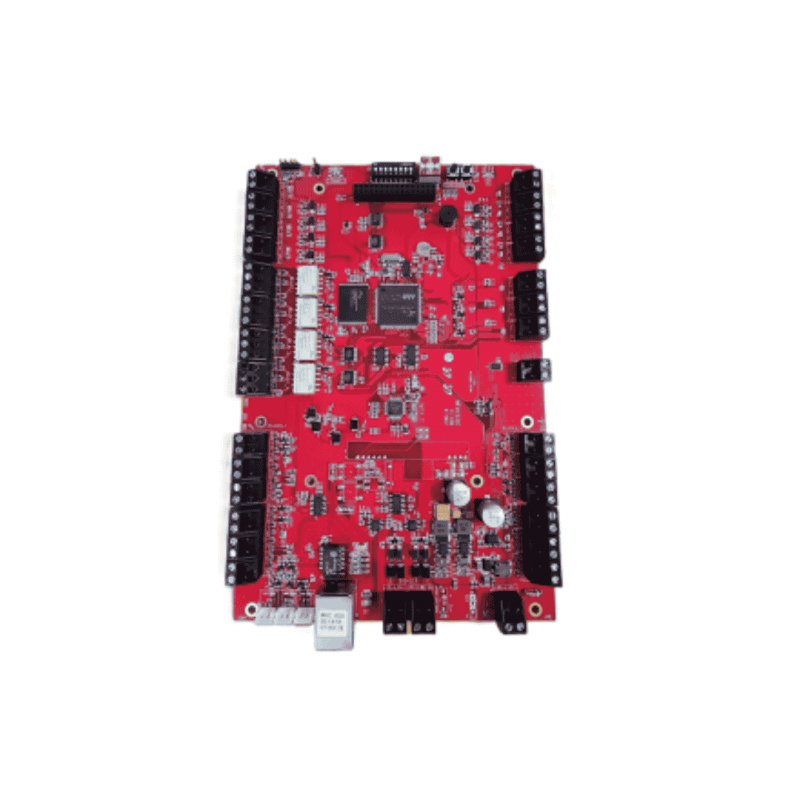

IDTECK iTDC-X – Professional Access Control Panel for Up to 4 Doors

IDTECK iTDC-X is a professional access control panel designed to manage secure entry to buildings and restricted areas. In its standard configuration, the controller supports up to 2 doors, while an optional EIO88-X expansion board increases its capacity to 4 doors.

Supporting up to 100,000 users and 100,000 event records, the iTDC-X is suitable for offices, commercial buildings, warehouses and other facilities requiring reliable access management.

Up to 4 Doors – Flexible System Expansion

The IDTECK iTDC-X provides a scalable access control solution, allowing installations to start with two doors and expand when required.

By adding the EIO88-X expansion board, which provides 8 additional inputs and 8 outputs, the controller can manage up to four doors.

This flexibility makes it possible to expand an existing access control system without replacing the main controller.

100,000 Users and 100,000 Event Records

The controller supports a large user database and extensive event storage.

With capacity for up to 100,000 user IDs and 100,000 event records, it enables administrators to manage access permissions and review historical security events.

26-bit Wiegand Reader Compatibility

The iTDC-X supports access control readers using the 26-bit Wiegand interface.

This allows integration with compatible card readers and other access identification devices used in professional security installations.

Advanced Security – Anti-Passback and Duress Functions

The controller includes multiple security features designed to improve access management:

• Anti-Passback – helps prevent improper repeated use of the same access credential.

• Duress Mode – provides a dedicated function for access under coercion.

• 2-Men Operation – allows access to require authorization from two individuals.

• Arm/Disarm – supports arming and disarming functions.

These capabilities make the controller suitable for areas requiring additional access security.

Door Status Monitoring and Security Alerts

The iTDC-X monitors door opening and closing conditions and can detect abnormal access events.

It supports alerts for forced door opening and when a door remains open longer than the configured time.

With compatible management software, administrators can monitor door status, user access activity and alarm conditions in real time.

Configurable Door Opening Time per User

The controller allows different door unlocking durations to be configured for individual users.

This provides greater accessibility for elderly users, people with mobility limitations and individuals who may require additional time to pass through a doorway.

Time Schedules and Access Permissions

Configurable time schedules allow administrators to control when authorized users can enter specific areas.

This helps organizations manage access according to working hours, staff schedules and other security requirements.

Ethernet, RS232 and RS422 Communication

The iTDC-X supports Ethernet, RS232 and RS422 communication interfaces for integration into different access control environments.

It is compatible with IDTECK STANDARD access control management software.

Manual configuration is also available for standalone operation.

Watchdog Function and Reliable Operation

The integrated Watchdog self-diagnosis function automatically monitors system operation and can reset the controller when required.

The controller is also designed to withstand electrostatic discharge (ESD), supporting reliable operation in professional security installations.

Key Features

• 2-door access control in standard configuration

• Expandable to 4 doors with EIO88-X

• Up to 100,000 users

• Up to 100,000 event records

• 26-bit Wiegand reader compatibility

• Anti-Passback function

• Duress Mode and 2-Men Operation

• Arm/Disarm function

• Door status monitoring

• Forced door and door-held-open alerts

• Configurable door opening time per user

• Access time schedules

• Ethernet, RS232 and RS422 interfaces

• Watchdog self-diagnosis

• IDTECK STANDARD software compatibility

Package Contents

• IDTECK iTDC-X Access Control Panel

Note: The EIO88-X expansion board is required for controlling doors 3–4. Its inclusion in the standard package has not been confirmed by the manufacturer.
