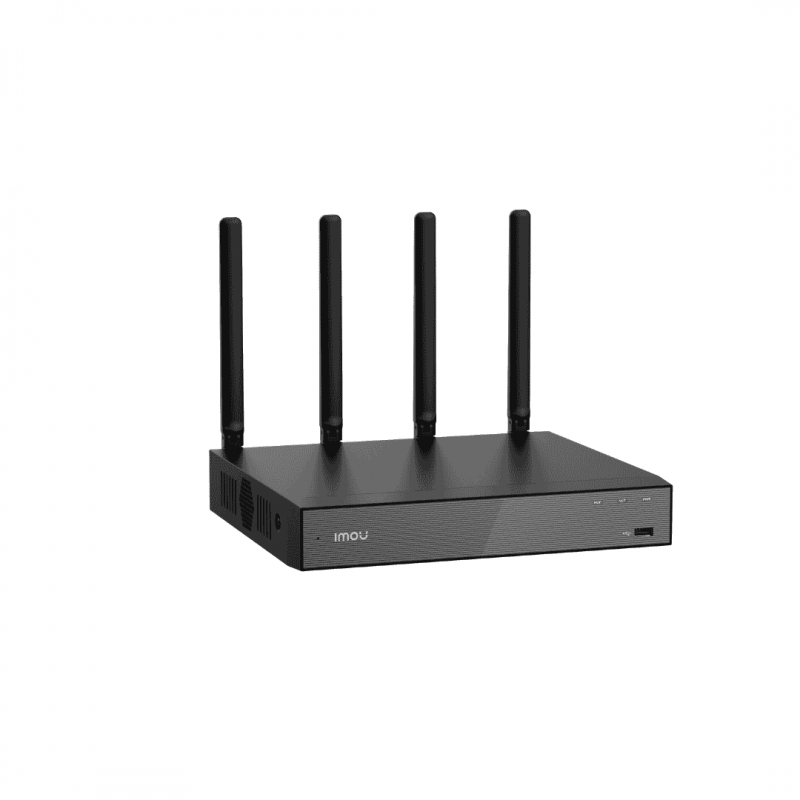

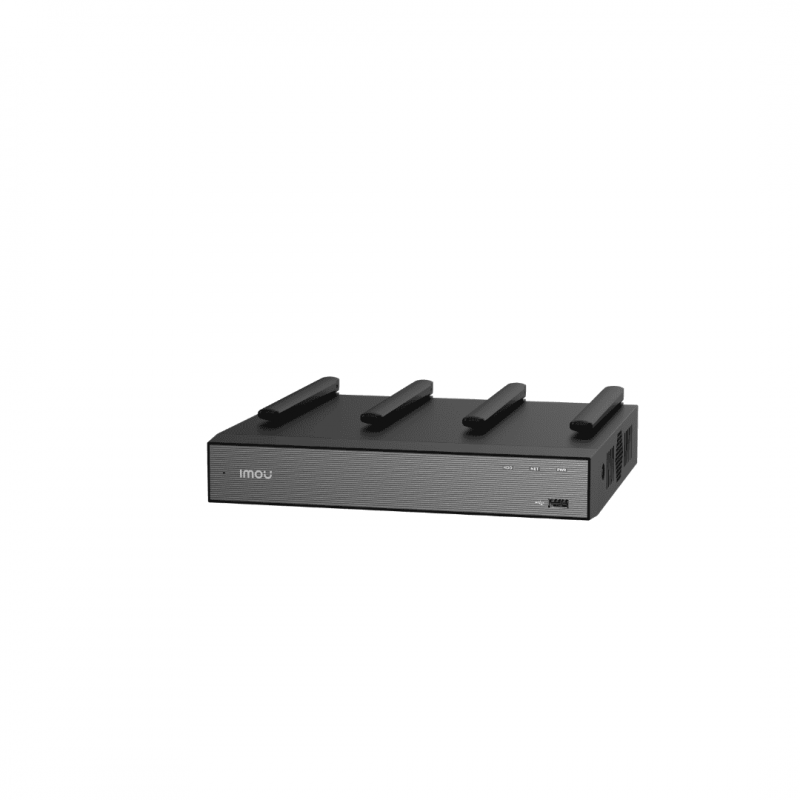

Wi-Fi NVR IMOU N118W-8A0E-P, 18ch.

Imou cameras and smart home
Product reference: MUIMOUN118-8A0E-P

  • Supports 18-channel access

  • Supports Ethernet and Wi-Fi connections

  • Built-in microphone and speaker enable two-way audio without additional devices

  • HDMI and VGA outputs provide clearer and more detailed visuals

  • Supports up to 16 TB HDD for extended data storage

  • Supports H.265 and H.264 compression, with maximum 4K UHD output resolution

  • Supports 2/4/8/16x playback and intelligent search

  • Supports ONVIF standard and is compatible with third-party devices

  • Provides access to NVR video via mobile app anytime and anywhere

  • Four external Wi-Fi antennas maximize wireless coverage

  • Dual-band Wi-Fi 6 (2.4/5 GHz). 2.4 GHz band supports up to 8 channels, 5 GHz band supports up to 12 channels

Read more
At stores prices may vary
Price:
€95.59
€79.00 tax excl.
Favourite

Product information

Wi-Fi NVR IMOU N118W-8A0E-P, 18ch.

N118W supports 18-channel access; it has 4 high-gain antennas and supports dual-band Wi-Fi 6, allowing the Wi-Fi signal of N118W to cover every corner; N118W built-in MIC and Speaker, allowing voice intercom without the need to purchase additional audio equipment; it supports automatic pair IMOU cameras, make N118W connect to camera more easily; N118W supports HDMI and VGA output, and can be adapted to most displays on the market; N118W supports access to APP, allowing users to manage NVR anywhere.

Specifications
Access Channel 18 channels
WiFi Access 2.4G Max 8 channels / 5G Max 8 channels
Network Bandwidth 90 Mbps
Playback Decoding 4-ch 8MP@15fps / 4-ch 5MP@30fps
Video Compression H.265 / H.264
Audio Compression AAC
Back-up File Format MP4
Live Display 1 / 4 / 8 / 9 / 10
General
Power Supply DC 12V 2A
Power Consumption <9W (Average with HDD) / <19W (Peak with HDD)
Working Temperature -10°C ~ +45°C
Working Humidity <95% RH
Dimensions 241.5 × 260 × 60.2 mm
Weight 890 g (Without HDD)
Certification CE

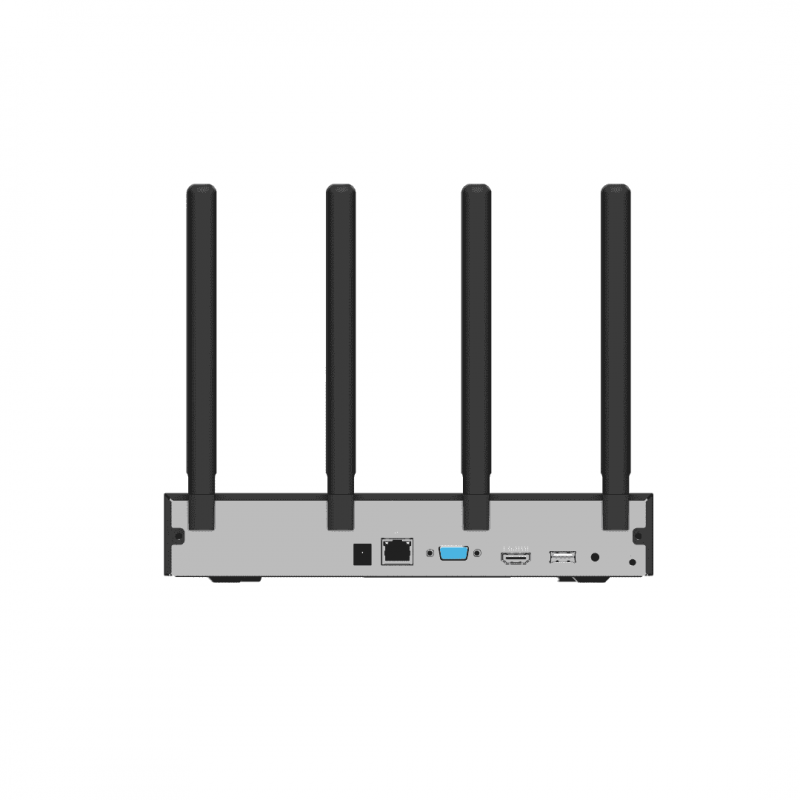

External Interface
Video Output 1× VGA, 1× HDMI
Audio Input Built-in Microphone
Audio Output Built-in Speaker
USB Interface 2× USB
Reset Button Yes
Network Interface 1× RJ-45 (10/100 Mbps)
Network
Wired Network RJ-45 10/100 Mbps Ethernet
Wi-Fi Network IEEE802.11b/g/n/ax, Wi-Fi 6, 2.4GHz & 5GHz
Compatible APP IMOU APP (iOS & Android)
Third Party Support ONVIF
Storage
Hard Drive Capacity 1 SATA port, up to 16 TB
Backup Media USB Flash Drive
Special Features
IPC Connection Automatic connection to IMOU cameras
Smart Detection Motion / Person / Vehicle
Remote Upgrade Yes
Sound Channel Two-Way Audio

What’s in the box:

  • WiFi NVR ×1

  • Power Adapter ×1

  • Mouse ×1

  • SATA Power Cable ×1

  • SATA Data Cable ×1

  • Ethernet Cable ×1

  • Screw Pack ×1

  • Quick Start Guide ×1

  • Regulatory Information ×1

Features

Chanels 18
Internal HDD 1 HDD
Features Build-in Mic
