IMOU NVR118-8P-8A0E-P 18-Channel Network Video Recorder (NVR), 8 PoE, H.265, Up to 16TB HDD

Product information

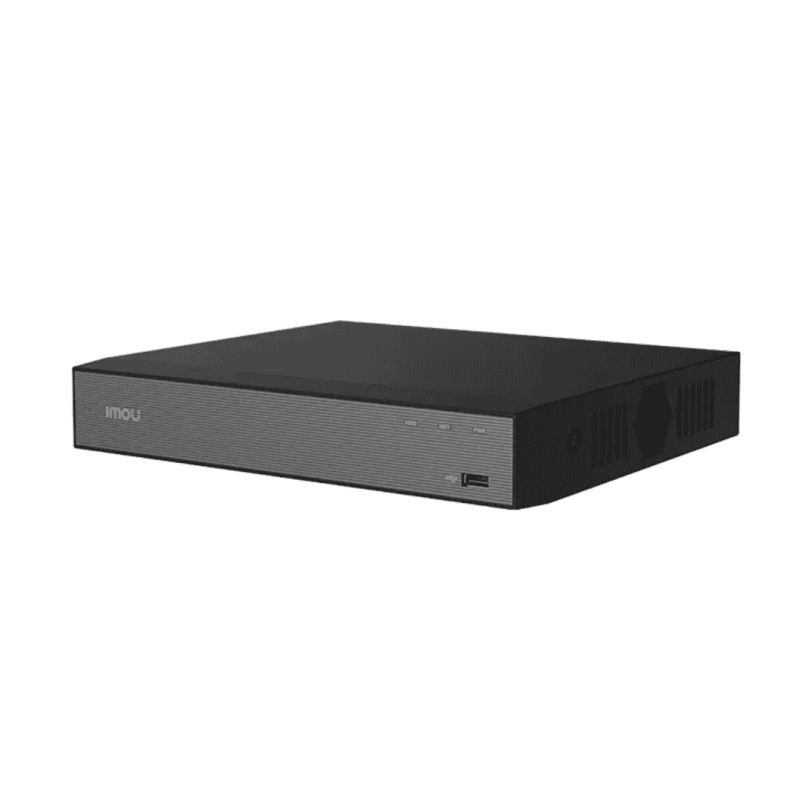

IMOU NVR118-8P – 18-Channel Network Video Recorder with 8 PoE Ports

IMOU NVR118-8P-8A0E-P is a smart 18-channel network video recorder designed for connecting, managing and recording IP security cameras. Featuring 8 built-in PoE ports, support for up to 18 camera channels, H.265 video compression and HDD storage up to 16TB, it offers a flexible solution for residential and small-to-medium business surveillance systems.

The NVR is suitable for homes, retail stores, offices, warehouses and other properties requiring centralized video monitoring and reliable local recording.

Up to 18 Camera Channels – Flexible System Expansion

The IMOU NVR118-8P supports up to 18-channel live viewing, allowing users to monitor multiple cameras through a single system.

Eight compatible PoE cameras can be connected directly to the built-in PoE ports, while additional network cameras can be accessed through the local network.

This provides flexibility for expanding a surveillance system as monitoring requirements grow.

8 Built-in PoE Ports – Simplified Camera Installation

The recorder includes 8 × 10/100 Mbps PoE ports supporting IEEE 802.3af/at standards.

Compatible IP cameras can receive both network connectivity and electrical power through a single Ethernet cable, reducing the need for separate power adapters and additional networking equipment.

The integrated PoE design makes installation more convenient and helps create a cleaner surveillance setup.

Automatic IMOU Camera Pairing

The IMOU IPC Auto-Pair feature enables quick and seamless connection of compatible IMOU cameras to the recorder.

This reduces manual setup and simplifies deployment.

Using the Imou Life app, users can add the NVR and compatible cameras and manage the system remotely.

Smart Search – Find Important Events Faster

Smart Search allows users to search recordings by events, people and vehicles.

Instead of manually reviewing hours of footage, users can quickly locate relevant moments.

According to IMOU, this intelligent search feature does not require an additional subscription or separate purchase.

4K HDMI and 1080p VGA Video Outputs

The NVR features both HDMI and VGA outputs for local video monitoring.

The HDMI interface supports video output up to 4K, while VGA supports up to 1080p.

This allows users to connect compatible monitors and manage the surveillance system directly on-site.

4-Channel Simultaneous Playback

The recorder supports simultaneous playback of up to 4 channels.

Supported playback configurations include:

• 4 channels × 8MP at 15fps

• 4 channels × 5MP at 30fps

Playback speed options include 2×, 4×, 8× and 16×, helping users review recordings and investigate events more efficiently.

H.265 Compression and Up to 16TB HDD Storage

H.265 video compression reduces storage requirements while maintaining efficient video recording.

The NVR supports hard drives up to 16TB, allowing longer recording retention depending on camera settings and usage.

Actual recording duration depends on the number of cameras, video resolution, frame rate, compression settings and recording mode.

Two-Way Audio with Built-in Microphone and Speaker

The IMOU NVR118-8P features a built-in microphone and speaker for real-time two-way audio communication.

This allows users to communicate directly through the recorder when using supported audio functions.

Remote Management with Imou Life and Imou Glow

The recorder supports two IMOU management platforms:

• Imou Life – designed for convenient home surveillance monitoring and management.

• Imou Glow – a platform for business users managing surveillance equipment.

Users can remotely view live video, access recordings and manage compatible cameras.

ONVIF Profile T – Third-Party Camera Compatibility

The IMOU NVR118-8P supports ONVIF Profile T, enabling integration with compatible IP cameras from other manufacturers.

This provides flexibility when building or expanding a surveillance system with different camera brands.

The availability of individual functions depends on the compatibility of each connected camera.

Key Features

• Up to 18 camera channels

• 8 built-in 10/100 Mbps PoE ports

• IEEE 802.3af/at PoE support

• Automatic pairing with compatible IMOU cameras

• Smart Search for events, people and vehicles

• HDMI video output up to 4K

• VGA video output up to 1080p

• Simultaneous playback of up to 4 channels

• 2×, 4×, 8× and 16× playback speeds

• H.265 video compression

• HDD support up to 16TB

• Built-in microphone and speaker

• Imou Life and Imou Glow compatibility

• ONVIF Profile T support

• Suitable for residential and business surveillance systems

What's in the Box?

• 1 × IMOU NVR118-8P Network Video Recorder

• 1 × Power Adapter

• 1 × USB Mouse

• 1 × SATA Power Cable

• 1 × SATA Data Cable

• 1 × Ethernet Cable

• 1 × Screw Pack

• 1 × Quick Start Guide

• 1 × Regulatory Information Document

Note: A hard drive is not listed in the manufacturer's standard package contents.
