IMOU Switch SG105C, 5-port Gigabit

Imou PoE Switches

Product reference: KSIMOUSG105C

5 Gigabit RJ45 ports

10/100/1000Mbps Auto-Negotiation

Auto MDI/MDIX

802.3X Flow Control

Plastic Casing

Desktop/wall-mount design

Plug & Play, East to Use

At stores prices may vary

Price:

€12.10

€10.00 tax excl.

Favourite

We have 4 qty.
Delivery in 1-2 business days

Product information

IMOU Switch SG105C, 5-port Gigabit

Imou 5-Port Gigabit Switch is a compact unmanaged network switch designed to expand wired networks in homes, offices and video surveillance systems. Equipped with five 10/100/1000 Mbps Gigabit Ethernet ports, it provides fast and stable data transmission for computers, routers, NVRs, IP cameras (with separate power supply), and other network devices.

With its unmanaged Plug & Play design, the switch is ready to use straight out of the box—no configuration or technical expertise is required. Its compact housing allows for convenient desktop placement or wall mounting, making it suitable for a wide range of installation environments.

If you are looking for a reliable Gigabit Ethernet switch for everyday networking, this Imou network switch delivers stable performance and seamless connectivity for both residential and business applications.

Key Features

5 × 10/100/1000 Mbps Gigabit Ethernet ports.
Unmanaged Plug & Play operation.
10 Gbps switching capacity.
Compact desktop or wall-mount design.
Ideal for home, office, and video surveillance networks.

Specifications
Hardware
Network Ports	5 × 10/100/1000 Mbps Ethernet ports
PoE Support	No
Operating Temperature	0°C ~ +40°C
Operating Humidity	10–90%
Power Consumption	2.1 W

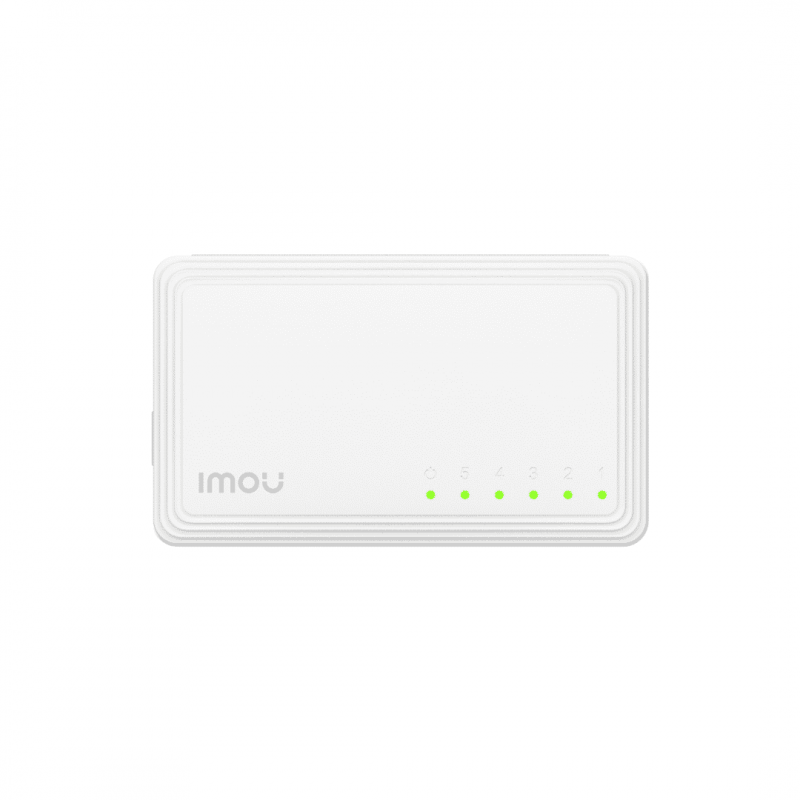

LED Indicators	1 × Power 5 × Link/Ack
Performance
Switch Type	Unmanaged
Switching Capacity	10 Gbps
Packet Forwarding Rate	1.488 Mpps × 5
Packet Buffer Memory	384 Kb
Jumbo Frame	15 KB
MAC Address Table	2K
Surge Protection	Common Mode: 2 kV Differential Mode: 1 kV
Others
Power Adapter	DC 5 V / 1 A
Casing Material	Plastic
Installation Method	Desktop / Wall Mount
Dimensions	82.6 × 48.6 × 20.5 mm
Weight	44 g

Features

Color	White
Incoming Bandwidth	10/100/1000
Ports	5
