IMOU SF110P 10-Port PoE Switch, 8×PoE, 2×Uplink, 65W, 250m

Product information

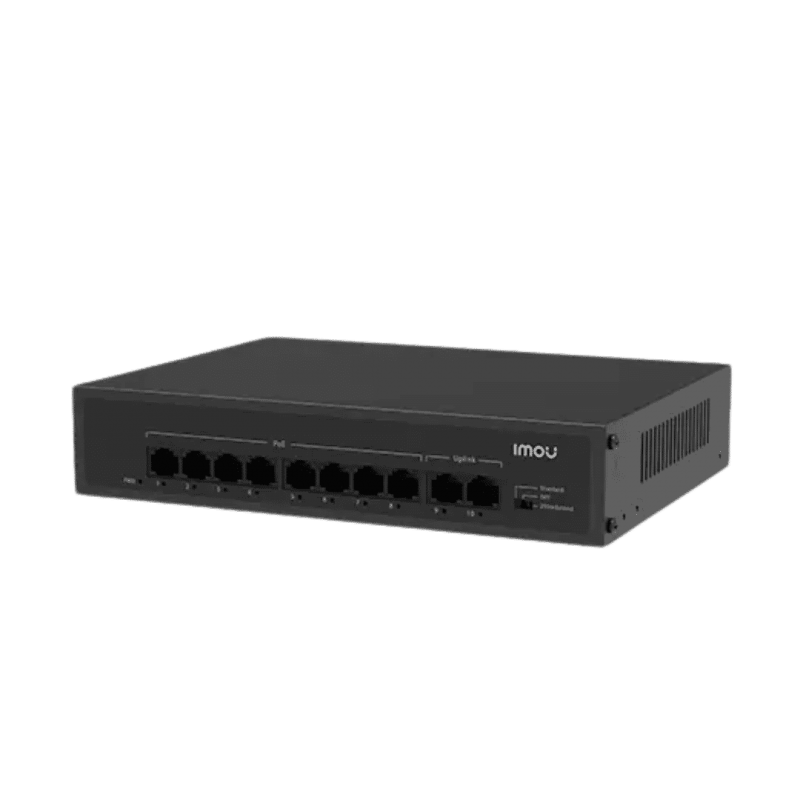

IMOU SF110P – 10-Port PoE Switch with 65W Power Budget

IMOU SF110P is an unmanaged 10-port PoE network switch designed to connect IP security cameras and other PoE-compatible network devices. Featuring 8 PoE ports and 2 dedicated uplink ports, it delivers both power and data over a single Ethernet cable, simplifying network installation.

With a 65W total PoE power budget, up to 30W per port and support for transmission distances of up to 250 meters, the SF110P provides a practical networking solution for small and medium-sized surveillance systems.

8 PoE Ports – Power and Data Over a Single Cable

The switch features 8 × 10/100 Mbps PoE ports supporting IEEE 802.3af/at standards.

Compatible IP cameras and other PoE-powered devices can receive power directly through their Ethernet connections, eliminating the need for separate power adapters.

The total PoE power budget is 65W, with up to 30W available per port. The combined power consumption of connected devices must remain within the 65W total budget.

Extend Mode – Transmission Distance up to 250m

Extend Mode allows the switch to extend PoE power and data transmission up to 250 meters.

This is particularly useful for installing security cameras across larger properties, warehouses, parking areas and other locations where standard Ethernet transmission distances may be insufficient.

The mode can be enabled using the dedicated toggle switch.

2 Uplink Ports – Flexible Network Connections

IMOU SF110P includes 2 × 10/100 Mbps uplink ports for connecting the switch to a router, network video recorder or other networking equipment.

Two dedicated uplink ports provide greater flexibility when setting up surveillance networks and allow simultaneous connections to different network devices.

Plug & Play – Easy Installation

As an unmanaged network switch, the SF110P requires no complicated configuration or software setup.

Simply connect the Ethernet cables and power supply. The switch automatically detects compatible PoE devices and supplies power according to the supported PoE standards.

This makes installation straightforward for both professional installers and smaller surveillance setups.

Metal Housing and Surge Protection

The durable metal housing helps dissipate heat efficiently and supports reliable long-term operation.

Built-in surge protection provides 4kV common-mode and 2kV differential-mode protection, helping protect the network against electrical disturbances.

The switch supports both desktop placement and wall mounting.

Key Features

• 10 × 10/100 Mbps Ethernet ports

• 8 × PoE ports (IEEE 802.3af/at)

• 2 × dedicated uplink ports

• Total PoE power budget: 65W

• Up to 30W per PoE port

• Extend Mode: transmission up to 250m

• Unmanaged switch with Plug & Play operation

• 1.6Gbps switching capacity

• 2K MAC address table

• Durable metal housing

• 4kV / 2kV surge protection

• Desktop or wall-mount installation

• Suitable for IP cameras and other PoE-compatible devices

What's in the Box?

• 1 × IMOU SF110P PoE Switch

• 1 × Power Cord

• 1 × Quick Start Guide

• 1 × Regulatory Information Document
