IR barrier SANDOR QUAD SMA, 4TX+4RX compl. 100 cm height, 100 m

Infrared Barriers

Product reference: DA SANDORQUADSMA8010

2-piece set for perimeter protection Sandor Quad SMA.

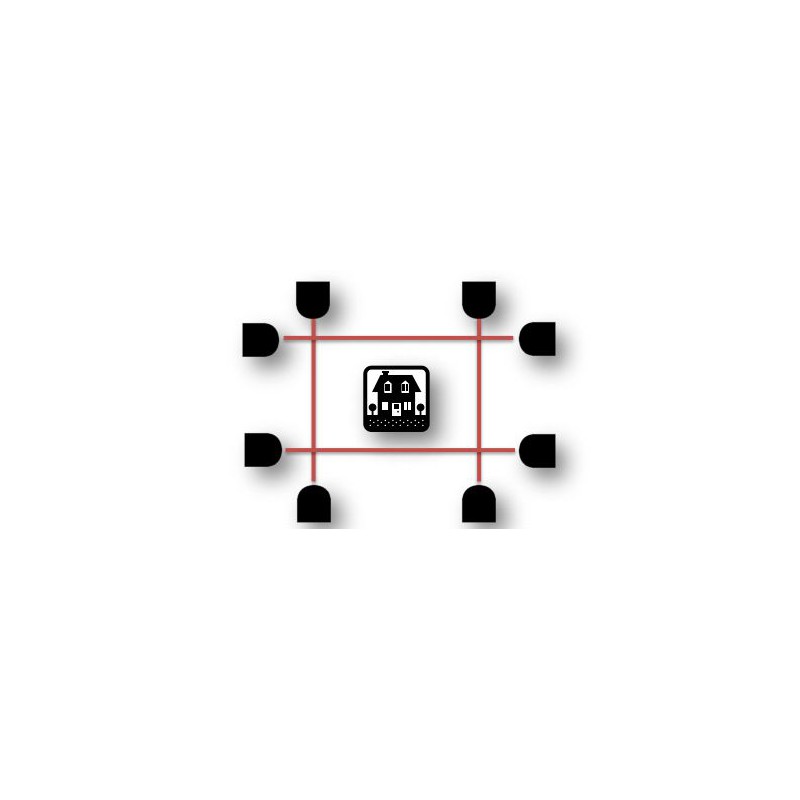

Sandor Quad is especially suitable for the protection of long walls with windows, or for protecting the perimeter of the area.

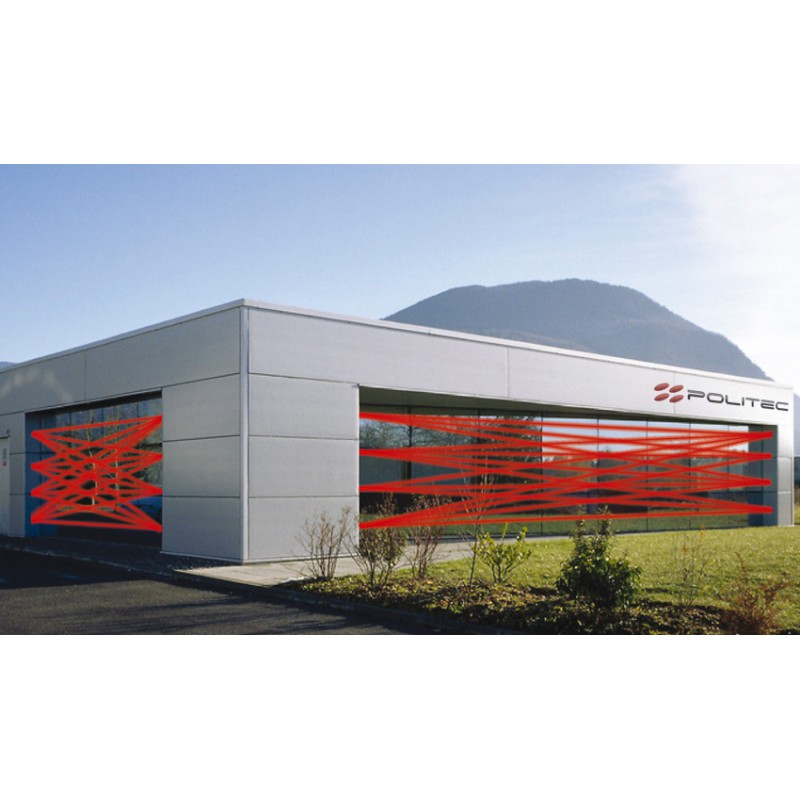

Beams can be set parallel (total 4 beams) or crossed (total 8 beams).
Outdoor distance 100 m;

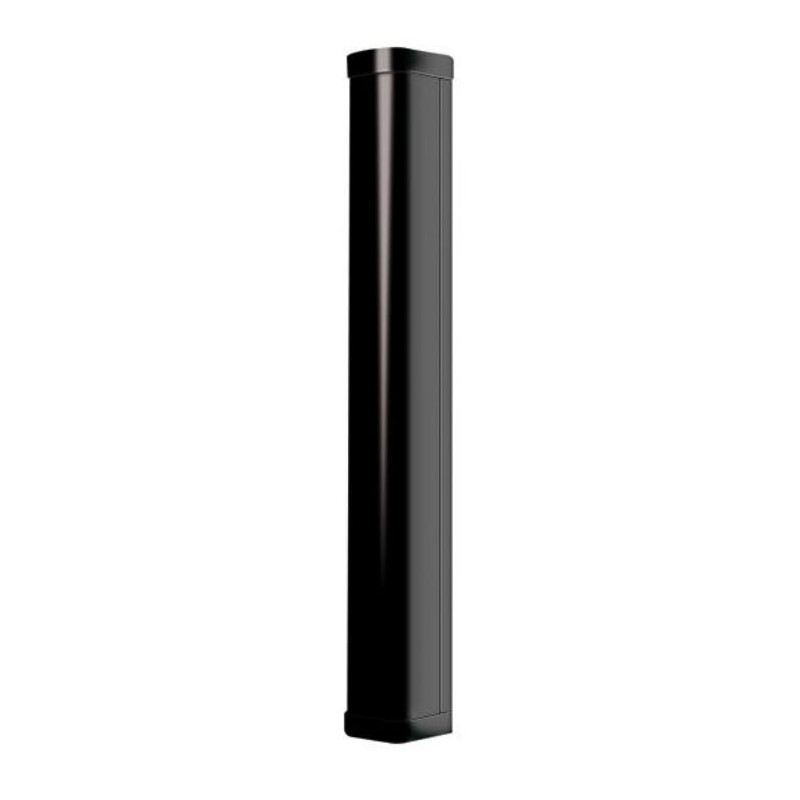

Dimensions: 60x60 mm, height 1000 mm;
Fog protection;
IP65;
Power supply: 10-30 Vdc;
Installation methods: on a pole, fixing to the facade, in window niches.

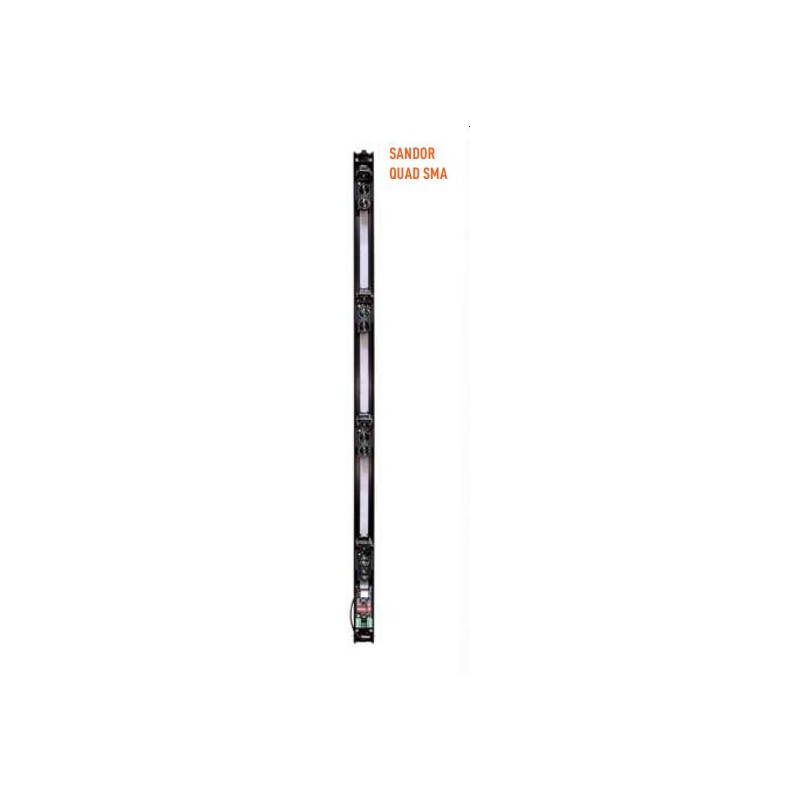

The optics housed inside the barriers have a special swivelling support to orient them and obtain the best possible alignment in any installation position
The possibility of having barriers with two, four or six optics makes the product suitable for any requirement
These devices have a very long range and can therefore be installed far from the property without being conspicuous
Being customised products, their size and optics vary in relation to the protection needs, adapting to any environment.

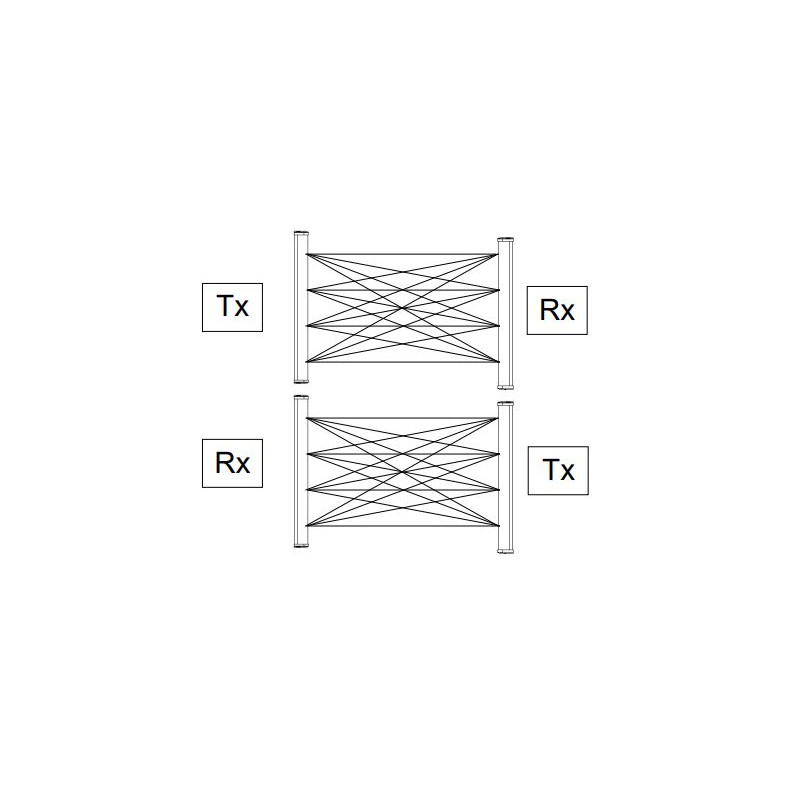

The criss-cross beam technology ensures full protection, thanks to the dual optics that can be oriented according to needs

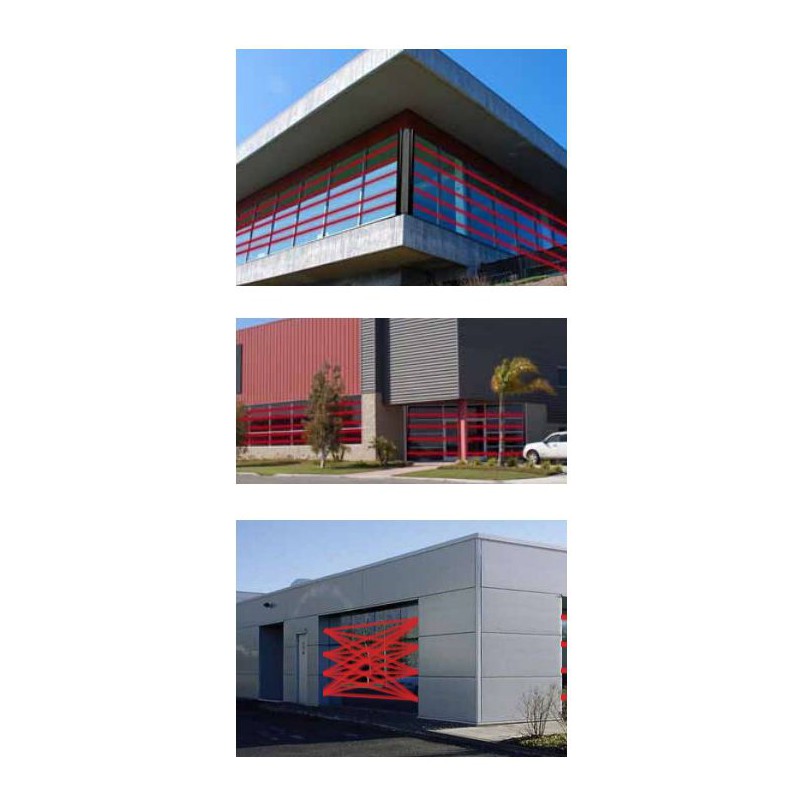

The range of Sandor active infrared barriers can be used to create sophisticated and reliable anti-intrusion solutions for perimeter protection in residential or industrial settings. Thanks to their custom dimensions, they can be rapidly installed to protect glass doors, glass walls or skylights of industrial buildings. Each beam has two independent and separate rays to prevent insects from interrupting the beam and triggering the alarm.

Features

Operating distance	100 m
Height	100 cm
Beams	4TX+4RX

Sertificates

SANDOR QUAD-ESA instal. manual

Anglų k.
