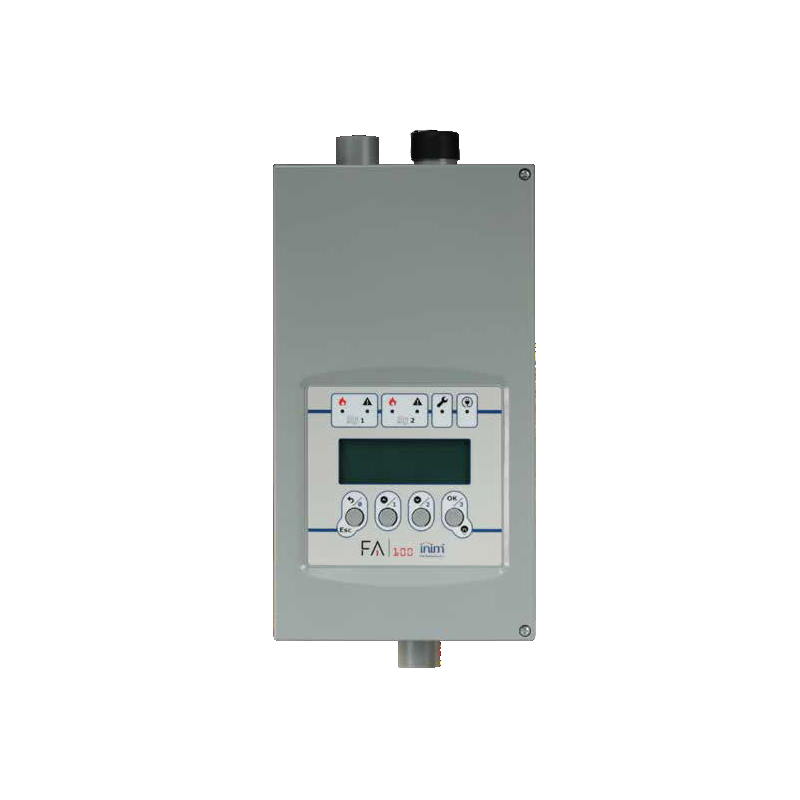

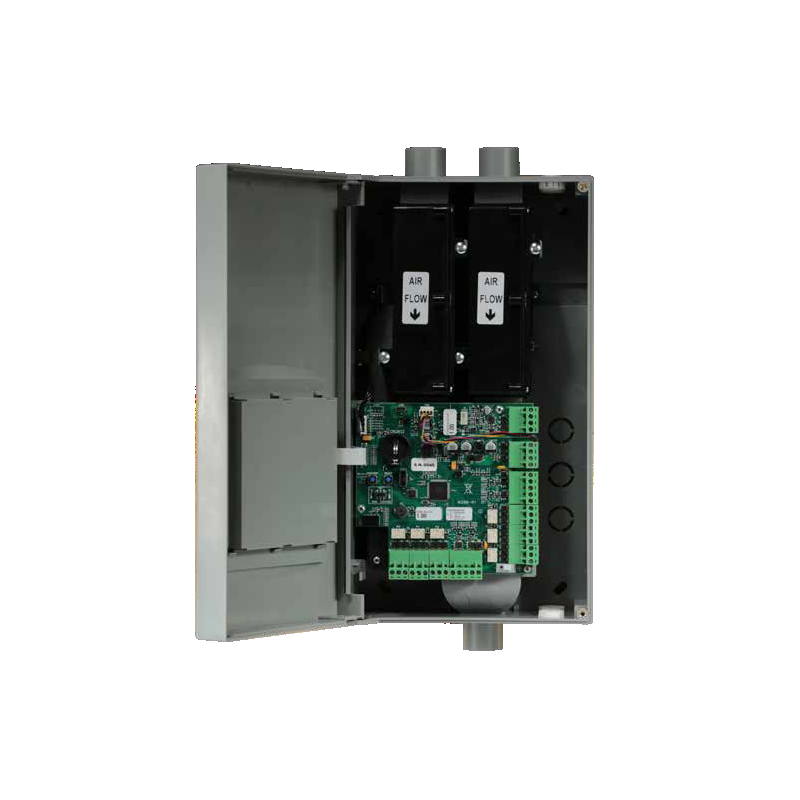

FA100 Aspirating smoke detector

INIM Addressable Fire Detection Systems
Product reference: PSFA100
  • Adressable aspirating smoke detector 1 channel (expandable to 2).
  • Maximum pipe length 100m.
  • 8 hole in class A, 16 hole in class B and 50 hole in class C.
Read more
Favourite

Product information

FA100 is the advanced loop-connectable aspirating smoke detection system, equipped with two independent channels and double light technology. Each sampling channel can be configured independently in class A, B or C and can reach a distance of 100 m, support up to 8 holes in class A, 16 in class B, 50 in class C.

The dual light technology with two distinct light sources, infrared and blue, allows accurate particle analysis and guarantees high rejection of false alarms due to dust or mists.

The FA100 detector can be combined with Inim addressed fire detection control panels via loop connection, in this way all signals and controls are transmitted to the control panel. It can also be combined with conventional control panels via the relay outputs and I/O terminals.

Suction pipes
Number of pipes 2 suction
1 exhaust
Maximum number of sampling holes for each pipe Class A 8 holes
Class B 18 holes
Class C 51 holes
 Maximum overall length of the pipes 160 m
 Maximum distance of a hole from the detector 100 m
Exhaust hose length advised 0.5 m
maximum 10 m
Primary/auxiliary power supply  nominal 24V
interval 20 to 30 V
  from external power supply
Maximum absorption  400mA @ 24V
Suction fan speed  1500 - 4750 RPM
Maximum current of the outputs I/O terminals 15mA @ 30V
relay 2A @ 30V, 30V
Battery for time/date CR2032
Display Graphic LCD, 192 x 64 pixels, backlit
Box material ABS
Degree of protection IP30
Dimensions 190 x 395 x 117 mm
Weight 1.95kg
Environmental operating conditions
Temperature from -10°C to +55°C
Relative humidity  ≤ 93%, non-condensing
