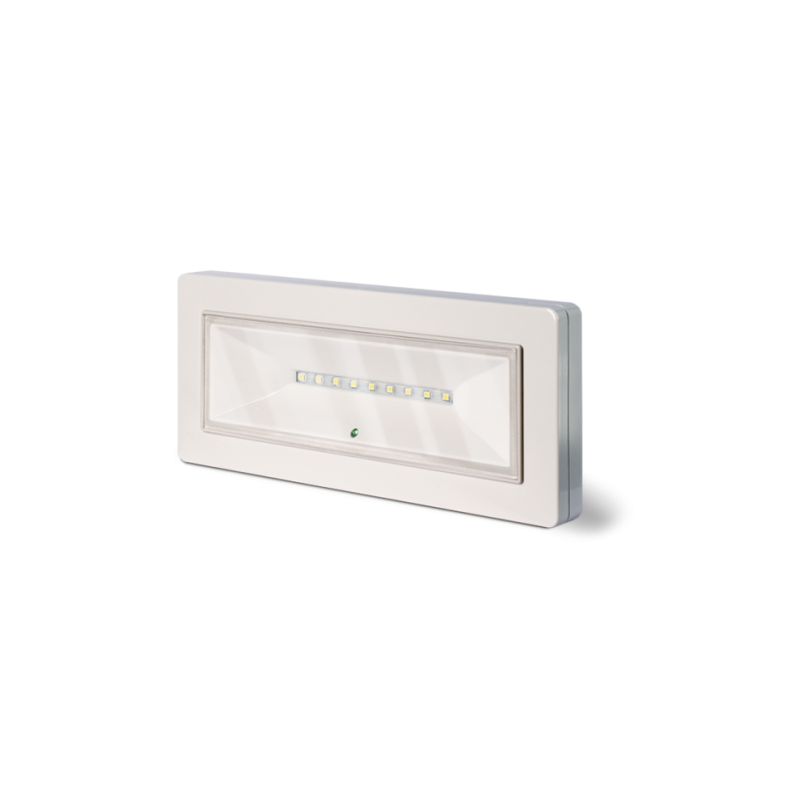

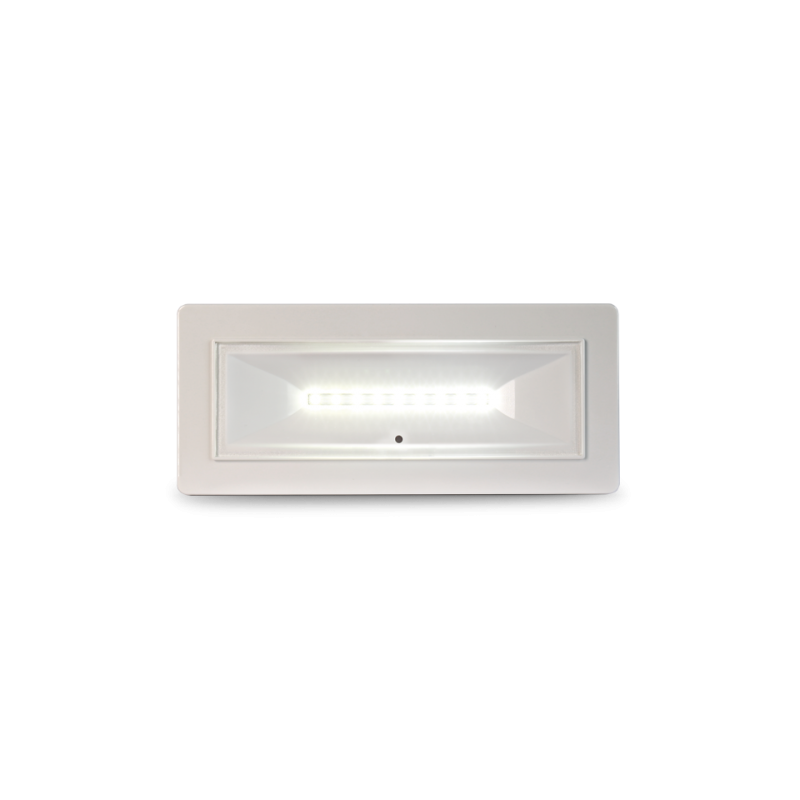

Emergency light with battery (LiFePO4 3.2V) HP100

INIM Evacuation Systems

Product reference: PSDVSE080342

Emergency light with battery (LiFePO4 3.2V), compact and minimalist design;
Suitable for installation on the wall, ceiling;
Different types of lamp are available with different prices, you can find the exact information in the general description of the product;
Can be used for both general and emergency lighting, depending on the model;
Light color 6000K (cold white);
IP42;
Measurements: 230x100x22.5 mm.

Product information

In the event of an emergency, when the power supply goes out, emergency lighting, evacuation lights provide the necessary light and help to find the exit from the building.

description

Product range

HARPER 100

Product type

Emergency lamp

Versions

Standard, Self-Test, Bus-Supervised, Central-battery

Functioning type

Maintained, Non-Maintained

technical specifications

Installation

Wall, ceiling, flush mounting/false ceiling

Power supply

220/230Vac, 50-60Hz

Battery

LiFePO4 3,2V

Insulation class

Color

RAL9003 white

Light source

LED

Color temperature

6000K

Additional info

Dedicated terminal for inhibition function

Dedicated terminal for rest mode

Test button

IP grade

IP40, IP65

IK grade

IK07

Operating temperature

From 0° to 50°C

Compliant to standards

EN 55015, EN 60598-1, EN 60598-2-22,

EN 61000-3-2, EN 61000-3-3, EN 61347-1,

EN 61347-2-7, EN 61547, EN 62471

dimensions (mm)

Width

255

Height

122

Depth

others informations

Guarantee

5 years

Packaging

14 pieces

Sertificates

Manufacturer

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.
