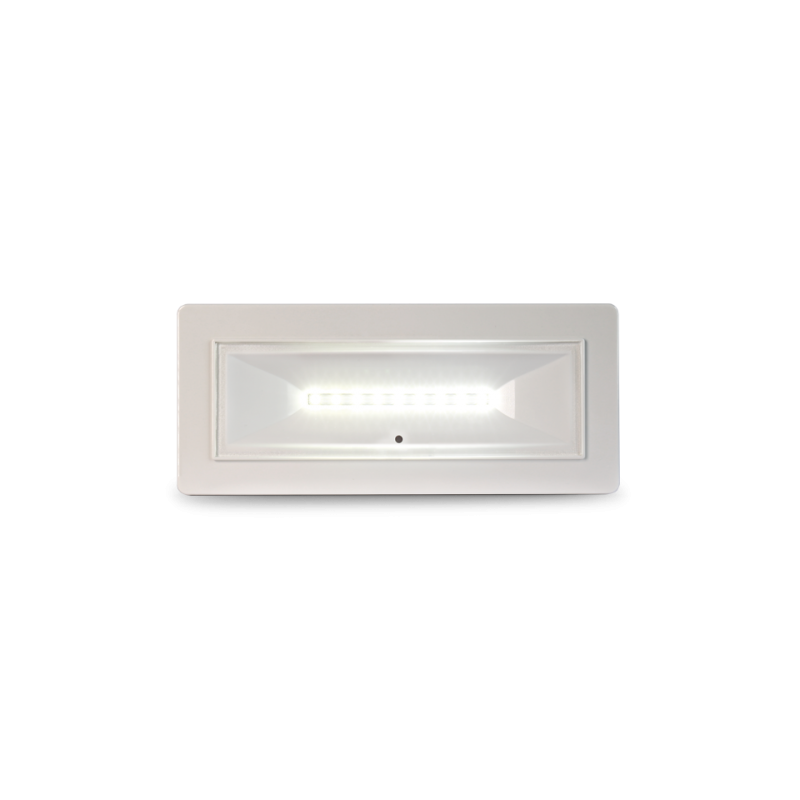

Emergency light with battery (LiFePO4 3.2V)

INIM Evacuation Systems

Product reference: PSDVAA080342

Emergency light with battery (LiFePO4 3.2V), compact and minimalist design;
Suitable for installation on the wall, ceiling;
Different types of lamp are available with different prices, you can find the exact information in the general description of the product;
Can be used for both general and emergency lighting in the event of a general power failure;
Light color 6000K (cold white);
IP42;
Measurements: 230x100x22.5 mm.

Product information

In the event of an emergency, when the power supply goes out, emergency lighting, evacuation lights provide the necessary light and help to find the exit from the building.

Description

Products Range

DIVA

Products Typr

Lighting fixture

Versions

Standard, Self-Test, Bus Supervised, Central-Battery

Type

Maintained, (M) - Non-Maintained (N/M)

Technical specifications

Installation

Wall, ceiling

Power Supply

220/230Vac, 50-60Hz

Battery

LiFePO4 3,2V

Insulation class

Color

White RAL9003

Light source

LED

Color temperature

6000K

Screen

Polycarbonate welded by ultrasound

Additional info

Dedicated terminal for the inhibition function

Dedicated terminal for rest mode

IP Grade

IP IP42

IK Grade

IK IK07

Operating temperature

0° - 40°C

Compliant to standards

EN 55015, EN 60598-1, EN 60598-2-22,

EN 61000-3-2, EN 61000-3-3, EN 61347-1,

EN 61347-2-7, EN 61547, EN 62471

dimension (mm)

Width

230

Height

100

Depth

22,5

Sertificates

Manufacturer

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.
