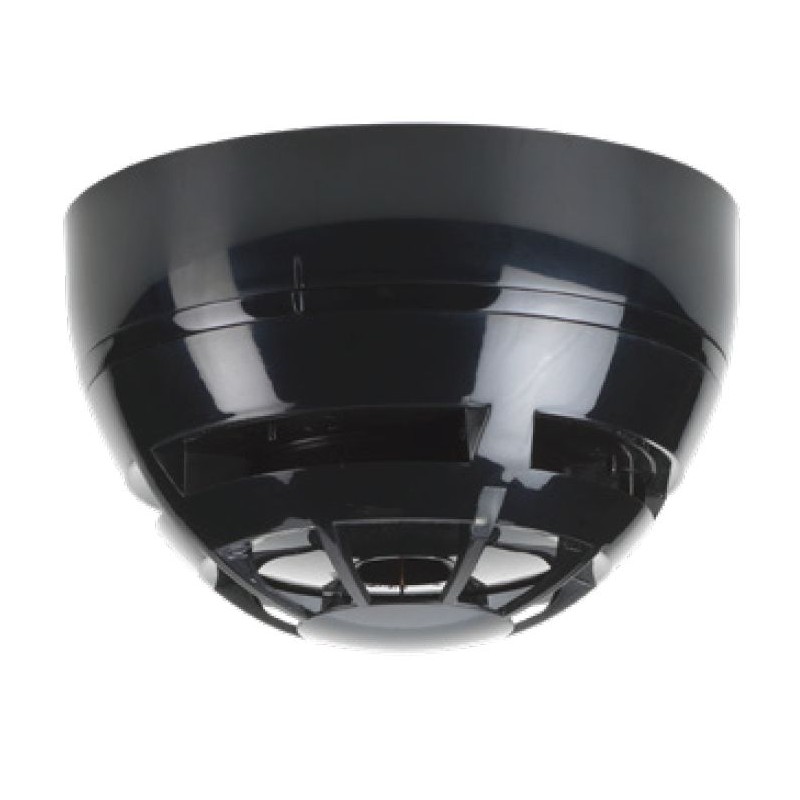

Wireless smoke detector WD100 double infrared detection, BLACK

Product reference: PSBWD100B

The WD100 detector, based on a double infrared detection optics (double reflection angle), provide fast smoke detection and high false alarm rejection. The detector is completely managed by the control panel where detailed information are reported.

Black enclosure.

Read more

Product information

Wireless smoke detector WD100 based on a double infrared detection optics (double reflection angle), provide fast smoke detection and high false alarm rejection.

Specifications

  • Detection based on double detection (double reflection angle)
  • Compensation for contamination of the sample chamber
  • Two-way radio communication
  • Radio communication based on two redundant channels
  • Extended radio communication range (up to 200m)
  • Battery life 10 years
  • Uses low cost standard lithium batteries
  • EN54-25 and EN54-7 certified

Technical specifications

  • Radio Frequency:  868 – 870 MHz
  • Maximum radiated power:  14dBm (25mW)
  • Dimensions: 110mm x 70mm
  • Weight (without batteries) : 155 g
  • Batteries : 2x CR123A
  • Operating temperature : -10°C to +55°C
  • MAX Humidity:  (non condensing) 95% RH
  • IP RATING: IP40

Manufacturer

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.
