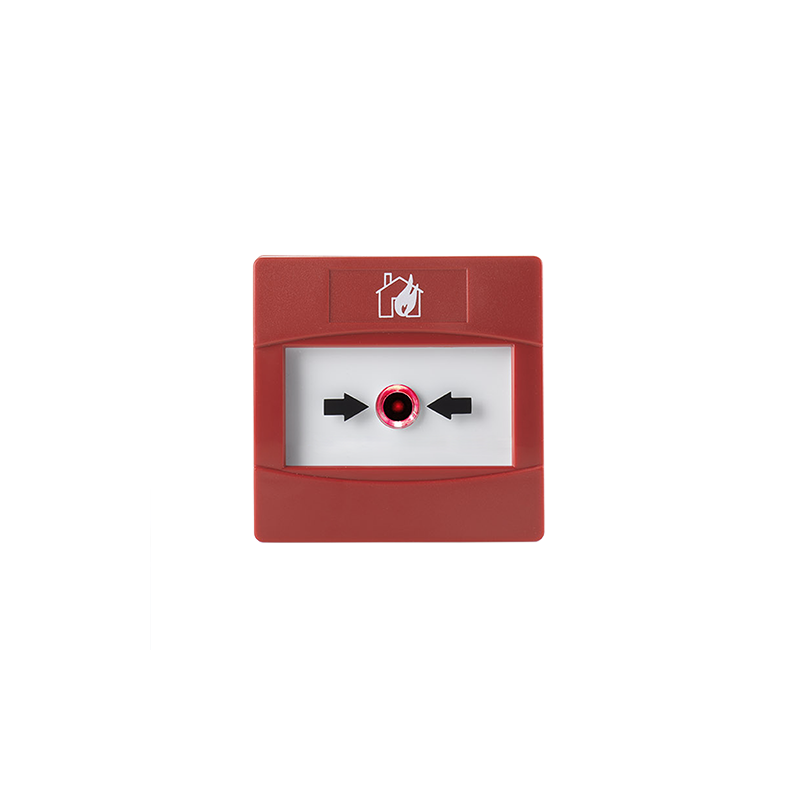

WC0010 wireless manual call point

Product reference: PSBWC0010

The WC00100 wireless alarm manual call point allows the manual signaling of a fire danger condition. Resettable after activation using the provided plastic key, it does not require the replacement of any part after use.

Read more

Product information

The WC00100 alarm manual call point WD300 for FireVibes wireless fire detection system.

Specifications

  • Two-way radio communication
  • Radio communication based on two redundant channels
  • Extended radio communication range (up to 200m)
  • Battery life 10 years
  • Uses low cost standard lithium batteries
  • Certificate EN54-25 and EN54-11

Technical specifications

  • Radio Frequency:  868 – 870 MHz
  • Maximum radiated power:  14dBm (25mW)
  • Dimensions: 88 mm x 87 mm x 61 mm
  • Weight (without batteries)  : 160 g
  • Batteries : 2x CR123A
  • Operating temperature: -10°C to +55°C
  • MAX Humidity:  (non condensing) 95% RH
  • IP Rating: IP42

Manufacturer

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.
