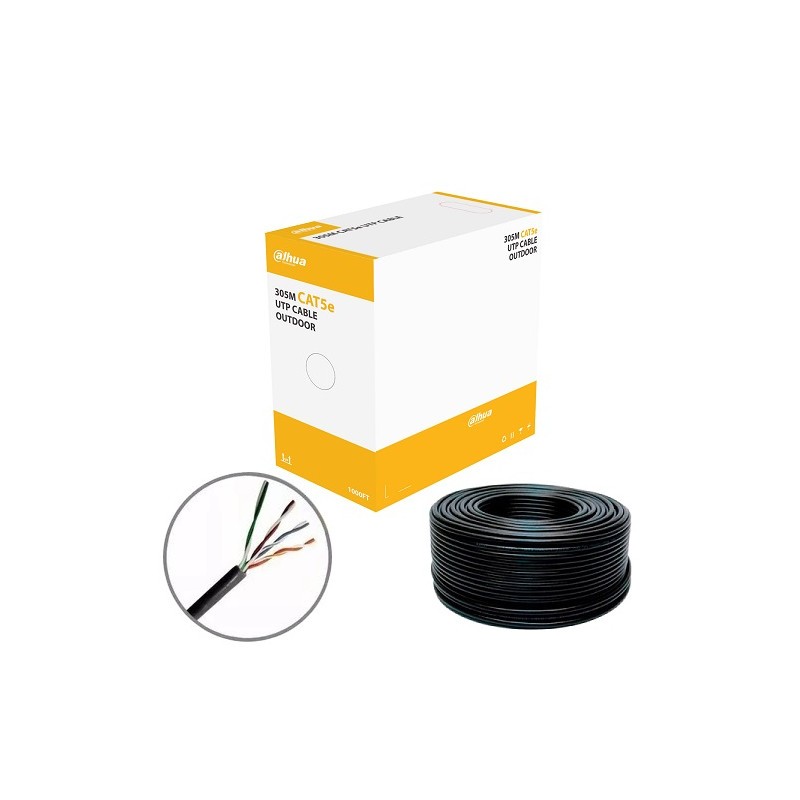

Dahua outdoor cabel UTP CAT5e 305m (PFM920-5EU)

Installation Gear

Product reference: KAT5UTPL

305m/carton outdoor UTP CAT5e cable, Power over Ethernet capable via single cable.
High-purity (99.97%) Oxygen-Free Copper conductor.
Customized MDPE outer sheath; meets ANSI/TIA 568-C.2 flame retardant certification.
Environmentally friendly PVC and all materials are RoHS compliant.

At stores prices may vary

Price:

€114.95

€95.00 tax excl.

Favourite

Product information

Dahua outdoor cabel UTP CAT5e 305m (PFM920-5EU)

Technical Specifications
Conductor material	Oxygen-Free Copper (99.97% purity)
Conductor diameter	0.50 mm ± 0.01 mm
American Wire Gauge (AWG)	24AWG
Insulation material	HDPE
Min. average insulation thickness	0.21 mm
Insulation diameter	0.89 mm ± 0.06 mm
Color coding	8-core: blue/white-blue, orange/white-orange, green/white-green, brown/white-brown
Sheath material	MDPE
Min. average sheath thickness	0.7 mm
Sheath diameter	5.2 mm ± 0.4 mm
Max. DC resistance (single conductor)	9.5 Ohm / 100 m
Min. insulation resistance	5000 MOhm·km
Max. DC resistance unbalance (intra/inter)	2% / 4%
Dielectric strength	No breakdown at 1KV DC for 1 min
Max. attenuation	22 dB / 100 m @ 100 MHz
Characteristic impedance	100 ± 15 Ohm
Near-End Crosstalk (NEXT)	>= 35.30 dB / 100 m @ 100 MHz
Return loss	>= 20.1 dB / 100 m @ 100 MHz
Sheath elongation at break	>= 350%
Insulation elongation at break	>= 300%
Tensile strength (sheath/insulation)	>= 12 MPa / >= 16 MPa
Installation bending radius	> 8 × outer cable diameter
Conductor elongation at break	>= 15%
Insulation shrinkage	<= 5%
Operating temperature	–30°C to +60°C
Installation temperature	–5°C to +50°C
Storage temp / humidity	–10°C to +40°C; Humidity < 60%
Length	305 m ± 1.5 m
Packaging dimensions	406 mm × 404 mm × 216 mm
Packaging method	305m per carton, one protective box with 2 inner cartons
Net weight	8.5 (± 0.6) kg
Weight with packaging	9.3 (± 0.6) kg
Standard compliance	ANSI/TIA 568-C.2
