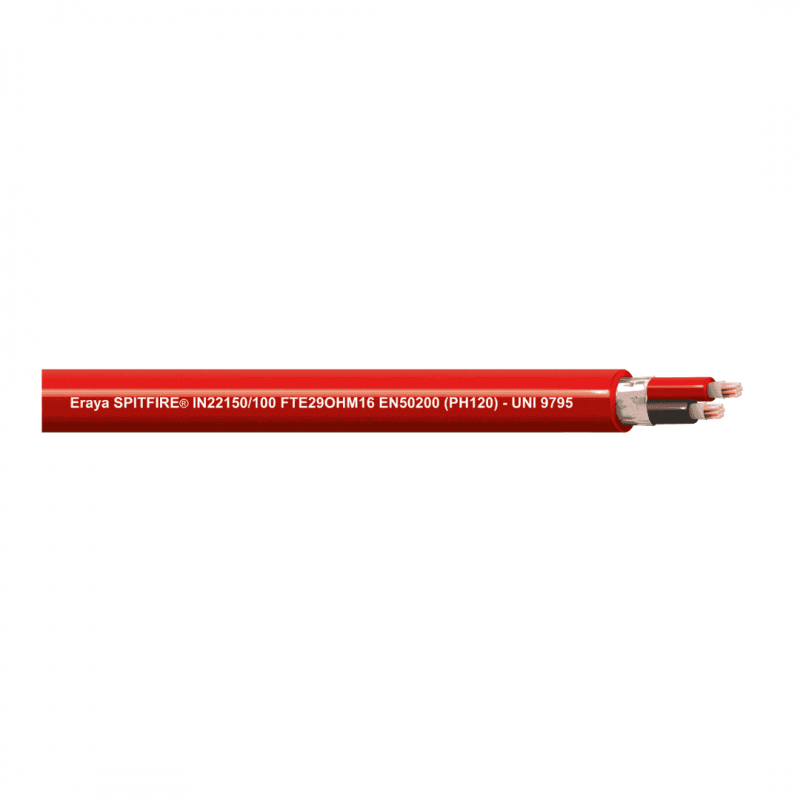

Non-flammable cable 2x1.13 TW+S (2x1.0mm²) PH120 CCA S1a,d0,a1 LSZH Spitfire 100m reel

Installation Gear

Product reference: KAPIN2210R/100

Price per 1 m

100 m reel (other lengths not available)

Fire-resistant cable (PH120), 2 x 1.00 mm², twisted and shielded with aluminum/polyester foil. Insulation – mica tape and XLPE (E29). Outer sheath – LSZH, with 0.8 mm solid drain wire.

The minimum purchase order quantity for the product is 100.

At stores prices may vary

Price:

€1.09

€0.90 tax excl.

Favourite

We have 100+ qty.
Delivery in 1-2 business days

Product information

Non-flammable cable 2x1.13 TW+S (2x1.0mm²) PH120 CCA S1a,d0,a1 LSZH Spitfire 100m reel

Technical Specifications — SPITFIRE IN22100

Property	Description
Application	Cable for fire detection / alarm systems
Model / Code	IN22100 / IN22100/100 / IN22100/500
Construction	2 x 1.00 mm², twisted pair, foil-shielded (aluminum/polyester)
Fire Resistance	PH120 (fire-resistant)
Insulation	Mica tape + XLPE (E29)
Outer Sheath	LSZH (Low Smoke Zero Halogen)
Drain (Earth) Conductor	Rigid drain wire, Ø 0.8 mm
Weight	IN22100/100 ≈ 60 kg/km IN22100/500 ≈ 62 kg/km
Manufacturer	Eraya (Italy)
