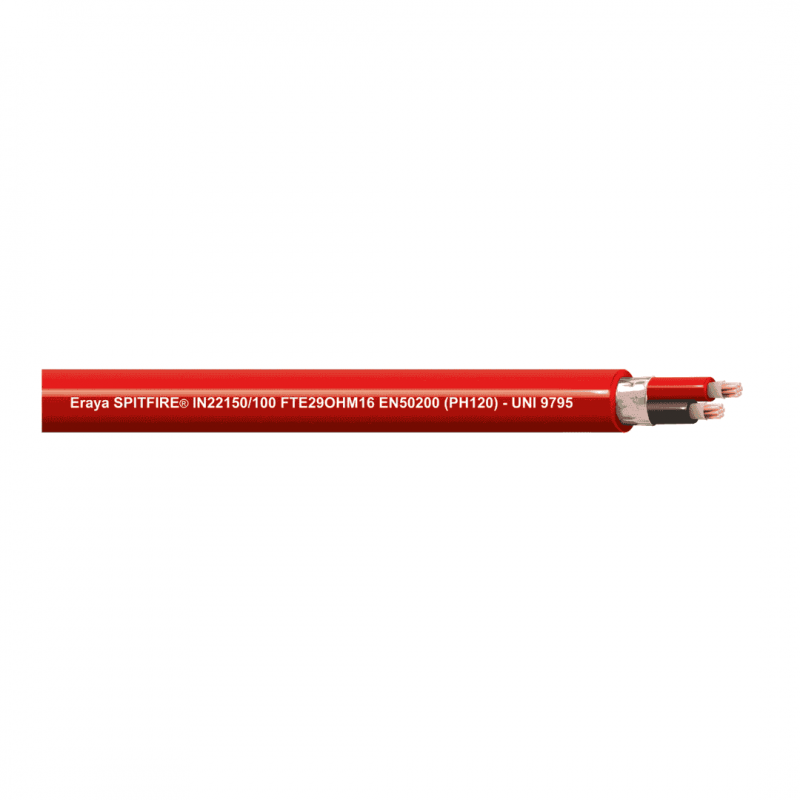

Fire-resistant cable 2x1.35 TW+S (2x1.5mm²) PH120 CCA S1a,d0,a1 LSZH Spitfire 100m reel

Installation Gear

Product reference: KAPIN2215R/100

Fire resistant cable (PH120) 2X1.35 twisted shielded with aluminium foil/polyester, insulation with mica

tape and XLPE (E29) and jacket in LSZH with rigid drain wire 0.5mm.

The minimum purchase order quantity for the product is 100.

At stores prices may vary

Price:

€1.39

€1.15 tax excl.

Product information

Operating temperature: -20°C to +105°C

Bending radius: 14xØ

Characteristic	Value	Characteristic	Value
Capacitance cond./cond.	50 pF/m	Characteristic impedance	120 Ohm/km
Capacitance cond./shield	80 pF/m	Inductance	660 μH/km (loop) c.a.
Conductor resistance DC	20 Ohm/km	Max operating voltage	< 100V
Max current	1.5 A/cond. @20°C	Test voltage (1 min - 50Hz)	1000V
