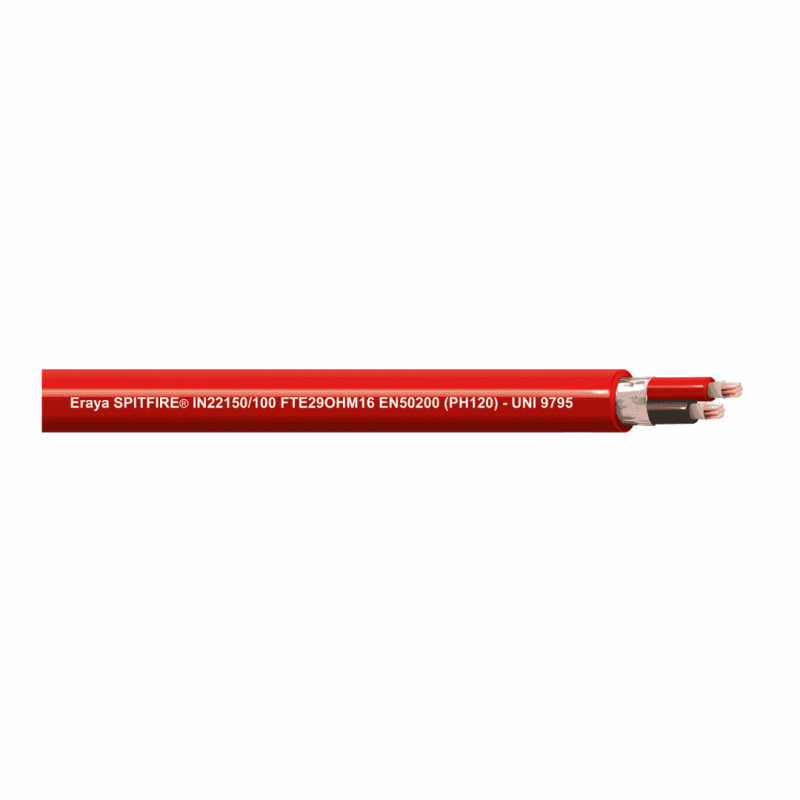

Fire-resistant cable 2x0.8 TW+S (2x0.5mm²) PH120 CCA S1a,d0,a1 LSZH Spitfire 500m reel

Installation Gear

Product reference: KAPIN22080/500

Price for 1 m

500 m reel (we do not cut other lengths)

Fire-resistant cable (PH120) 2X0.8 twisted, shielded with aluminum foil/polyester, insulation made of mica tape and XLPE (E29), jacket made of LSZH with a rigid 0.5 mm drain conductor.

The minimum purchase order quantity for the product is 500.

At stores prices may vary

Price:

€0.79

€0.65 tax excl.

Favourite

Product information

Fire-resistant cable 2x0.8 TW+S (2x0.5mm²) PH120 CCA S1a,d0,a1 LSZH Spitfire 500m reel

Property	Value
Conductor	Bare copper, 85 mm – 12 twist/mt
Conductor diameter	1.60 mm
Insulation	XLPE (E29)
Insulation thickness	> 0.50 mm
Mica tape	Yes
Mica tape thickness	> 0.10 mm
Shielding	Aluminium / polyester 100%
Drain wire	Rigid 0.50 mm conductor
Sheath	LSZH
Sheath thickness	> 0.60 mm
Overall cable diameter	6.60 mm
Weight	41–43 Kg/km

Sertificates

IN22080 Techninė specifikacija

IN22080 Techninė specifikacija
