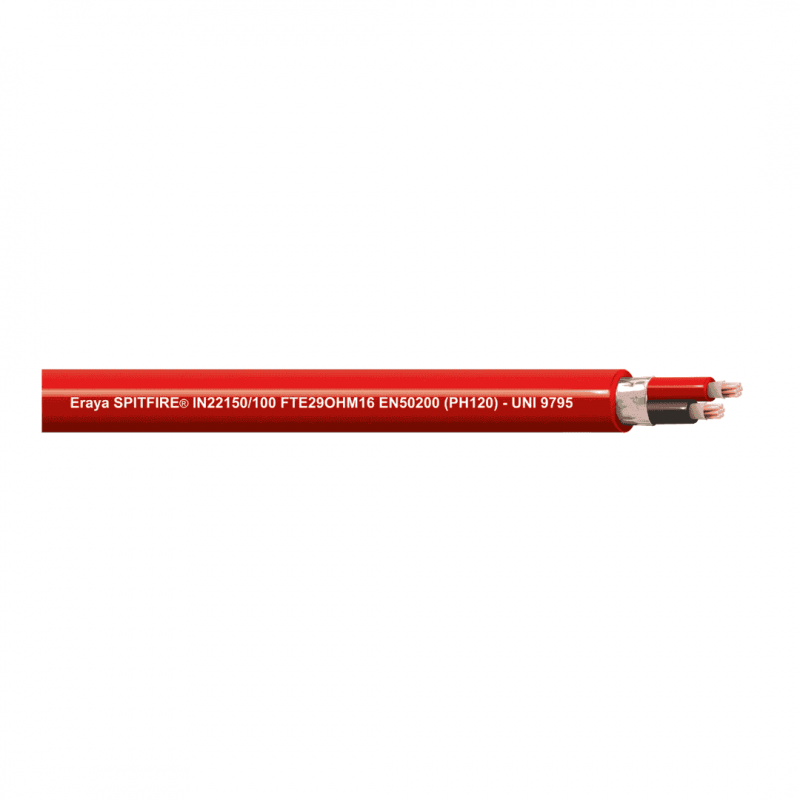

Fire-resistant cable 4x0.8 TW+S (4x0.5mm²) PH120 CCA S1a,d0,a1 LSZH Spitfire 100m reel

Installation Gear
Product reference: KAPIN24080/100

Price for 1 m

100 m reel (we do not cut other lengths)

Read more

The minimum purchase order quantity for the product is 100.

At stores prices may vary
Price:
€1.20
€0.99 tax excl.
Favourite

Product information

Fire-resistant cable 4x0.8 TW+S (4x0.5mm²) PH120 CCA S1a,d0,a1 LSZH Spitfire 100m reel

Mechanical Characteristics

CategoryDetailValue
Conductors Section 1x0.80 mm²
Material Bare copper
Twisting Pitch 85 mm – 12 twists/m
Insulation Material Mica + XLPE (E29)
Thickness / Diameter Mica >0.10 mm, XLPE >0.50 mm, Ø 1.60 mm
Colors Red – Black
Shielding Type / Material / Coverage Foil / Aluminum/polyester / 100%
Drainage Section / Thickness / Material 5/10 / 0.50 mm / Bare copper
Jacket Material / Thickness / Ø / Color LSZH / >0.60 mm / 7.20 mm / Red
Operating temperature -20°C … +105°C
Bending radius 14xØ

Electrical Characteristics

CharacteristicValue
Capacitance cond./cond. 50 pF/m
Capacitance cond./shield 80 pF/m
Characteristic impedance 120 Ω/km
Inductance 660 μH/km (loop)
Conductor resistance DC 40 Ω/km
Max operating voltage < 100 V
Max current 1.5 A/cond. @20°C
Test voltage (1 min, 50Hz) 1000 V

Sertificates
