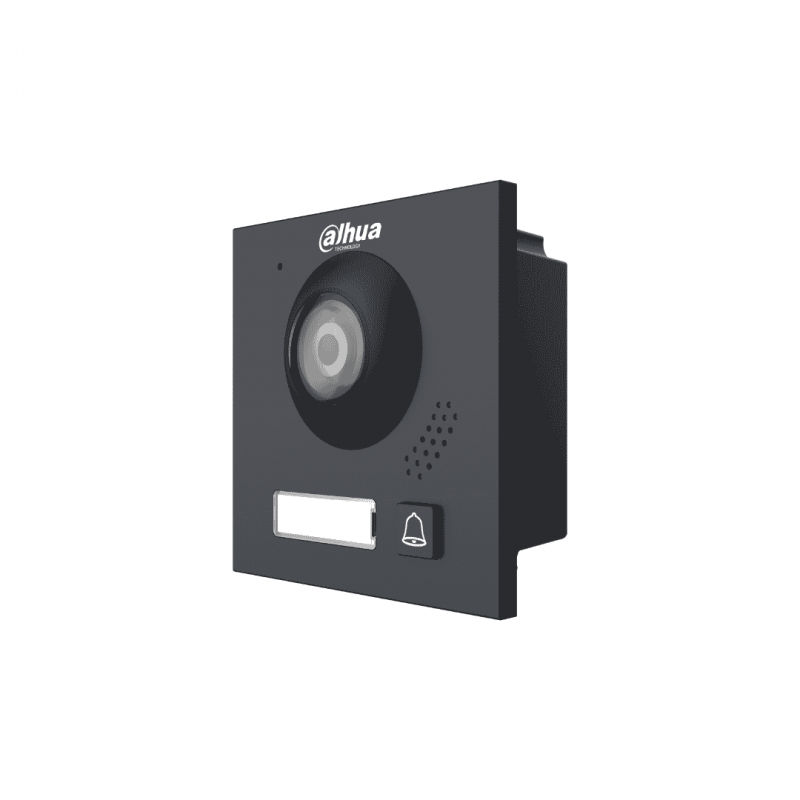

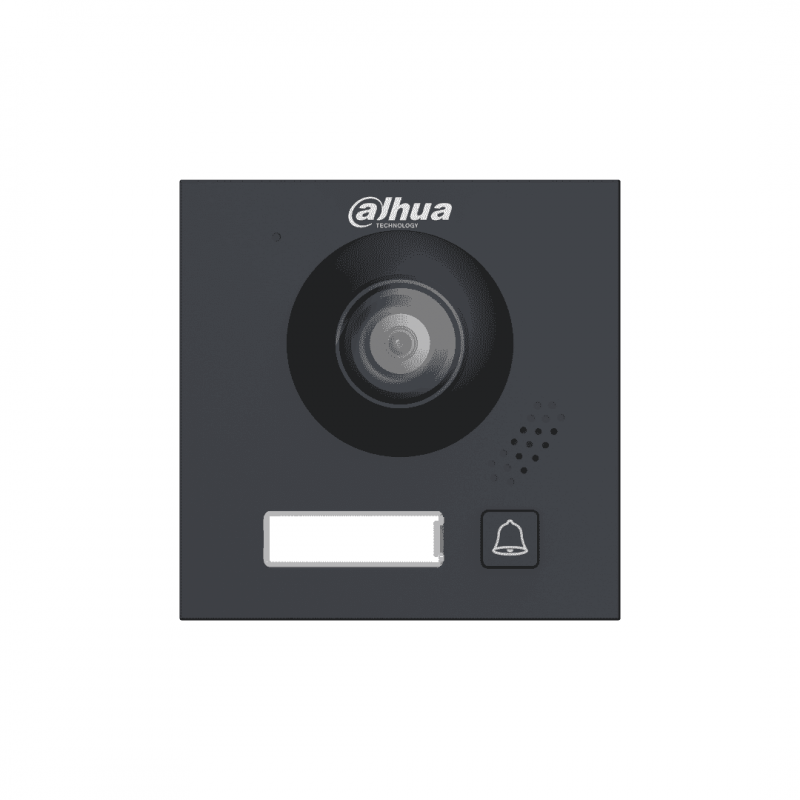

Dahua 2-wire IP Modular Apartment Door Station VTO4202FB-P1, Black

Intercoms

Product reference: VMVTO4202FB-P1

2-wire IP Modular Apartment Door Station

> Anodized aluminum front panel.

> CMOS low illumination 2MP HD colorful 168.6° camera.

> Video intercom function.

> Provides 12 VDC, 600 mA power.

> Mobile phone app, talk to the visitor or unlock the door remotely on your phone.

> IK07 & IP65 rated (silicone sealant is required for the shell, see the quick start guide).

> Support surface and flush mount.

> Support H.265 and H.264.

> Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).

At stores prices may vary

Price:

€313.39

€259.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

Dahua 2-wire IP Modular Apartment Door Station VTO4202FB-P1, Black

System

Main Processor

Embedded Processor

Operating System

Embedded Linux Operation System

Button Type

Mechanical

Number of Buttons

Interoperability

CGI; ONVIF

Network Protocol

UDP; TCP; IPv4; DNS; RTSP; UPnP; SIP; P2P; RTP

Basic

Camera

1/2.9" 2 MP CMOS

Field of View

H: 168.6°; V: 87.1°; D: 176.7°

WDR

120 dB

Noise Reduction

3D NR

Video Compression

H.265; H.264

Video Resolution

Main stream:720p; WVGA; D1; CIF
Sub stream:1080p; WVGA; D1; QVGA; CIF

Video Frame Rate

25 fps

Video Bit Rate

256 Kbps to 8 Mbps

Light Compensation

Auto IR

Day/Night

Auto(ICR)/Color/B/W; Color/B/W

Audio Compression

G.711a; G.711u; PCM

Audio Input

1 channel

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kHz, 16 bits

Function

Communication Mode

Digital 2-wire

Unlock Mode

Remote

Leave Videos

Yes (SD card is inserted in the indoor monitor or door station)

Storage

Supports Micro SD card (up to 256 GB)

Web Configuration

Yes

Performance

Casing Material

Aluminum

Capacity

Card Capacity

3000

Fingerprint Capacity

3000

Port

RS-485

Alarm Output

Power Output

1 port, 12 V/600 mA

Exit Button

Door Status Detection

Lock Control

Network Port

1 × RJ-45 port, 10/100 Mbps network port

Alarm

Tamper Alarm

Yes

General

Appearance Color

Black

Power Supply

Dahua 2-wire switch (max. power supply distance is 50 m)
48 VDC, 1 A; PoE (802.3af/at)

Power Adapter

Optional

Installation

Flush Mount; Surface Mount

Certifications

Accessory

Surface mount box (optional); flush mount box (optional); rain cover (optional)

Product Dimensions

100.0 mm × 100.0 mm × 49.4 mm (3.94" × 3.94" × 1.94")

Protection

IK07; IP65

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Environment

Outdoor

Operating Altitude

0 m–3000 m (0 ft–9842.52 ft)

Power Consumption

≤4 W (standby), ≤5 W (working)

Gross Weight

0.43 kg (0.95 lb)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

30%–75% (RH), non-condensing

Features

Color

Black
