IP video intercom Android monitor SCP3022A-B, 7”, black, Dahua

Intercoms

Product reference: VMSCP3022A-B

2-Wire IP smart control panel with Android 14 system, 4 GB RAM, and 16 GB ROM ensures smooth and fast performance. A 7-inch IPS capacitive touchscreen with Multi-Touch technology provides a wide viewing angle of up to 80°. The full-screen bezel-less design with an ultra-narrow black frame offers a modern and minimalist look. Built-in multi-color status indicators feature a breathing light function. The device automatically wakes up when a person approaches. An integrated light sensor adjusts screen brightness automatically. Temperature and humidity sensors allow real-time environment monitoring. Supports IP, Wi-Fi, and 2-wire IP communication modes.

At stores prices may vary

Price:

€678.81

€561.00 tax excl.

Favourite

We have 3 qty.
Delivery in 1-2 business days

Product information

IP video intercom Android monitor SCP3022A-B, 7”, black, Dahua

This smart control panel with Android 14 is designed for modern IP video intercom and security systems. It supports video intercom, video monitoring, and wireless alarm functions, while also allowing installation of third-party APK applications for extended functionality.

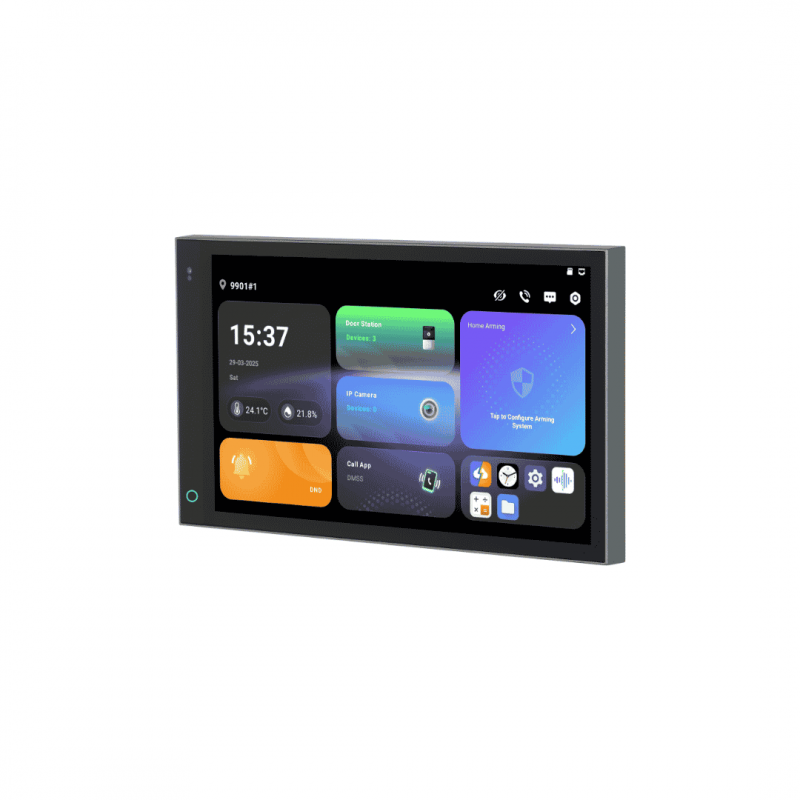

The 7-inch IPS capacitive touchscreen with 1024 × 600 resolution provides clear visuals and up to 80° horizontal and vertical viewing angles. Multi-touch technology ensures smooth and intuitive operation. Its slim bezel-less design with a black frame delivers a modern appearance.

Built-in two-way audio with echo suppression and digital noise reduction ensures clear communication. The device supports IP, Wi-Fi, and 2-wire IP communication modes for flexible system integration.

Additional features include automatic wake-up when a person approaches, a built-in light sensor for automatic brightness adjustment, temperature and humidity monitoring, microSD card recording support (up to 512 GB), DND mode, and elevator control functionality.

It includes 8 alarm input channels and 1 alarm output, RS-485 and USB ports. Suitable for villas, apartments, hotels, communities, and offices.

System

Main Processor

Embedded Processor

Operating System

Android 14

Network Protocol

IPv4;RTSP;UDP;DNS;FTP;RTP;TCP;SIP

Basic

Screen Type

Capacitive Touchscreen

Display Screen

7-inch display screen

Screen Resolution

1024 (H) × 600 (V)

Audio Compression

G.711a; G.711u; PCM

Audio Input

2 channels

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kHz, 16 bit

Function

Communication Mode

Full digital;Digital 2-wire

Information Release

Receive and view the published information from the management center

Elevator Control

Residents can call the elevator through this device to their floor.

Leave Videos

Yes (SD card is inserted in the indoor monitor or door station)

DND Mode

Do not disturb period can be set

Number of Extensions

Villa: 1 main VTH and 9 extensions
Apartment: 1 main VTH and 4 extensions

Storage

Supports micro SD card storage (up to 512 GB)

Network

Wi-Fi

Yes

Wireless Standard

IEEE 802.11b/g/n

Wireless Frequency Range

2.4 GHz

Max. Transmission Power

≤ 20 dBm @ 2400-2483.5 MHz

Port

RS-485

USB

Alarm Input

8 channels

Alarm Output

1 channel

Power Output

1 port (12 V, 200 mA)

Doorbell

Yes (use the alarm input port)

Network Port

1 × 10/100 Mbps Ethernet port

Performance

Casing Material

PC + ABS

General

Appearance Color

Gray

Power Supply

48 VDC, 0.5 A
Standard PoE

Power Adapter

Optional

Installation

Flush Mount

Certifications

Accessory

Included: RS-485 and power output cable, bracket and alarm cable.
Optional: Power cord

Product Dimensions

176.2 mm × 103.1 mm × 32.2 mm (6.94" × 4.06" × 1.27") (H × W × D)

Operating Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–95% (RH), non-condensing

Operating Altitude

Below 3,000 m (9,842.52 ft)

Power Consumption

≤ 10 W (standby), ≤ 14 W (working)

Gross Weight

1,220 g (2.69 lb)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

30%–75%

Operating Environment

Indoor

Features

Color

Black
