SATEL INDIGO Glass Break Detector

Intrusion Detection

Product reference: SDINDIGO

Designed for standard, tempered and laminated glass detection.
Dual-path acoustic analysis minimizes false alarms.
Detection range up to 6 m.
Adjustable sensitivity for different installation environments.
Tamper protection and power supply monitoring ensure reliable operation.

At stores prices may vary

Price:

€16.49

€13.63 tax excl.

Favourite

We have 10 qty.
Delivery in 1-2 business days

Product information

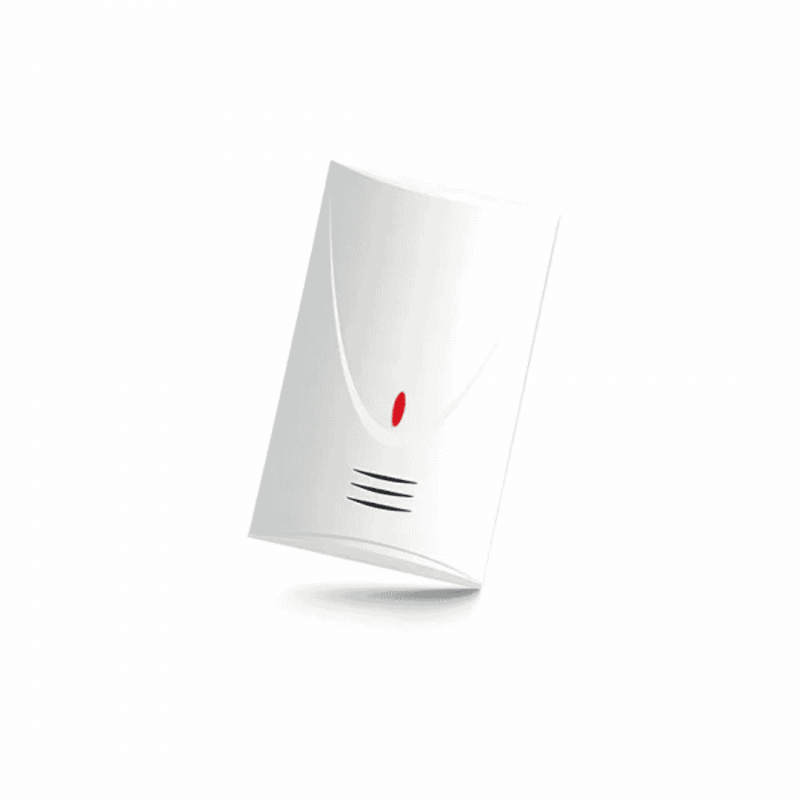

SATEL INDIGO – Acoustic Glass Break Detector

The SATEL INDIGO is a wired acoustic glass break detector designed to protect rooms with large glass surfaces such as windows, glass doors and storefronts. It detects the breaking of standard, tempered and laminated glass, making it ideal for residential, commercial and office security systems.

Advanced Dual-Path Signal Analysis

INDIGO uses advanced dual-path acoustic analysis by detecting the low-frequency impact sound first, followed by the high-frequency glass breaking sound. An alarm is triggered only after both signals are detected, significantly reducing false alarms.

Reliable Protection

The detector features adjustable sensitivity, tamper protection and power supply supervision, allowing reliable operation in a wide range of installation environments.

Easy Installation

With a detection range of up to 6 meters, INDIGO provides effective protection for large glazed areas. SATEL recommends using the INDIGO TESTER during installation to optimize detector placement and sensitivity.

Key Features

Detects standard, tempered and laminated glass breakage.
Advanced dual-path acoustic signal analysis.
Adjustable detection sensitivity.
Tamper protection.
Power supply supervision.
Detection range up to 6 meters.
Ideal for residential and commercial security systems.

Parameter	Specification
Application	Acoustic Glass Break Detector
Supported Glass Types	Plate Glass Tempered Glass Laminated Glass
Detection Technology	Advanced dual-path sound analysis Adjustable sensitivity LED indicator Power supply supervision Tamper protection
Electrical Specifications	Supply Voltage: 12 V DC ±15% Standby Current: 12.5 mA Maximum Current Consumption: 15 mA Relay Contact Rating: 40 mA / 16 V DC
Detection	Detection Range: Up to 6 m Alarm Signaling Time: 2 s
Operating Conditions	Operating Temperature: -10 °C to +55 °C Maximum Humidity: 93 ±3% Environmental Class: II (EN50130-5)
Physical	Dimensions: 48 × 78 × 24 mm Weight: 48 g
