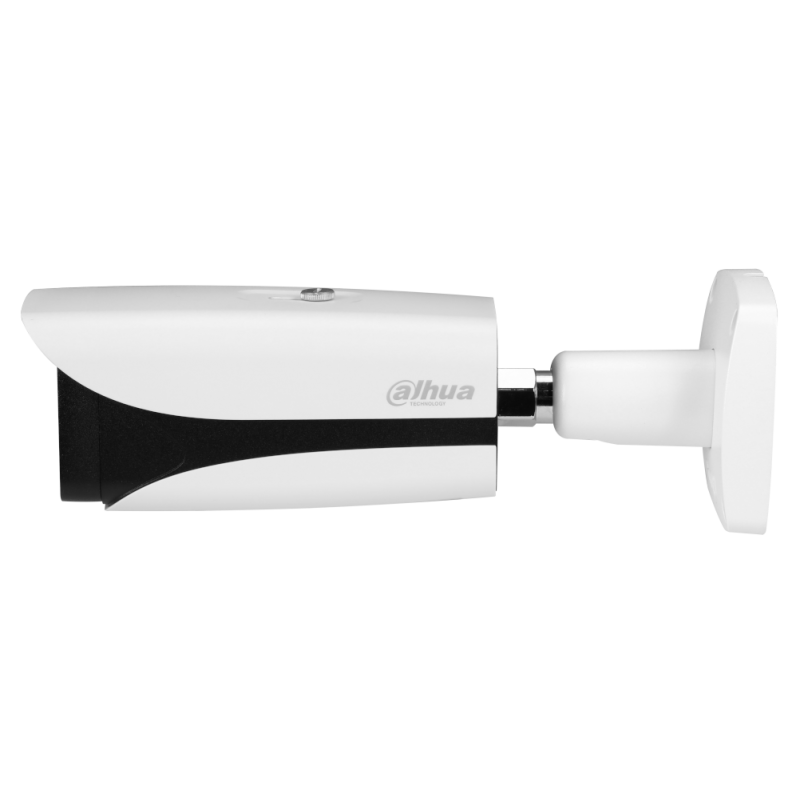

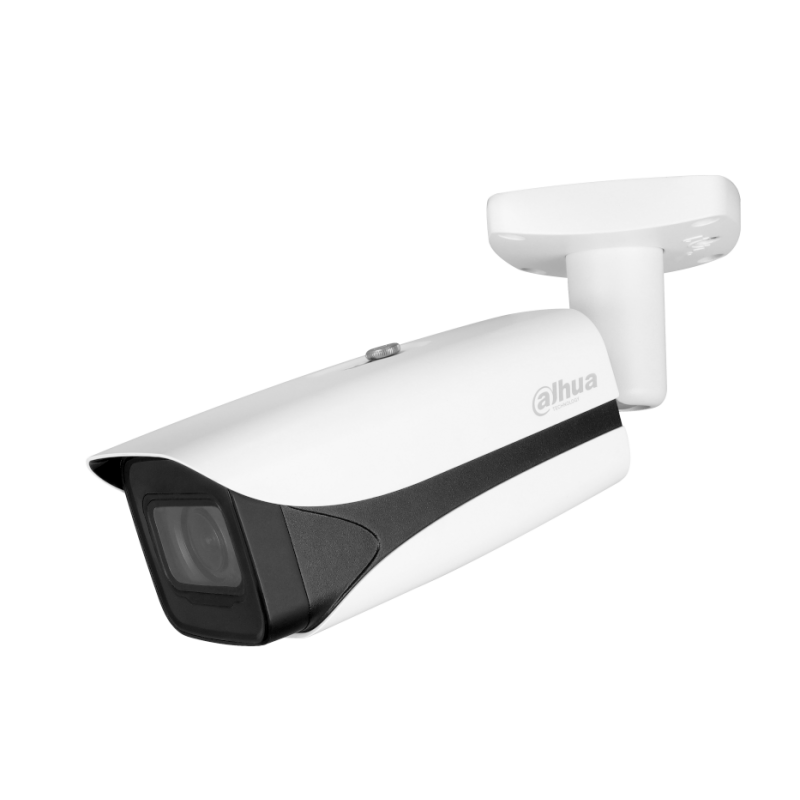

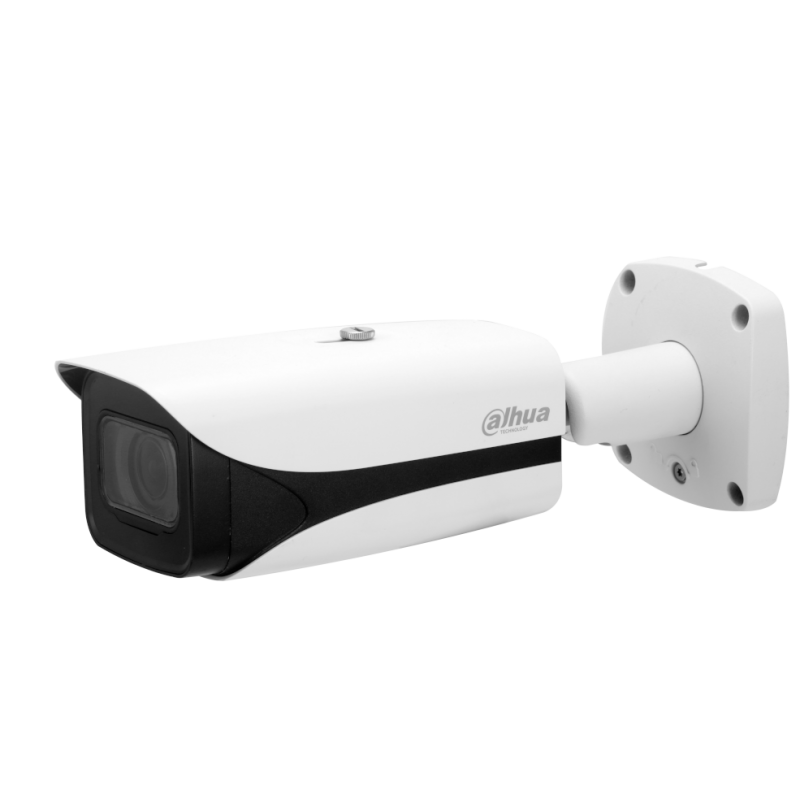

IPC-HFW5541E-ZE-0735-S3 5MP IR Vari-focal 7-35mm Bullet WizMind AcuPick Camera

IP Cameras

Product reference: CAHFW5541E-ZE0735-S3

5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 5MP (2960×1668) @25/30 fps.
Built-in IR LED, and the max. illumination distance is 120 m.
ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
24V AC/12 VDC/PoE power supply; ePoE.
IP67 and IK10 protection.
SMD 3.0.

At stores prices may vary

Price:

€602.58

€498.00 tax excl.

Favourite

We have 2 qty.
Delivery in 1-2 business days

Product information

5MP IR Vari-focal 7-35mm Bullet WizMind Network Camera. With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.

Specifications:

Intelligence
IVS (Perimeter Protection)																		Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Smart Object Detection																		Smart abandoned object; smart missing object
SMD																		SMD 3.0
AcuPick																		Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA																		Yes
Face Detection																		Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting																		Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map																		Yes
Video Metadata																		Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart Search																		Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Smart Sound Detection																		Yes
Port
Audio Input																		1 channel (RCA port)
Audio Output																		1 channel (RCA port)
Alarm Input																		2 channels in: wet contact, 5 mA 3–5 VDC
Alarm Output																		1 channel out: wet contact, 300 mA 12 VDC
Certification
Certifications																		CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14;
Function
Image Setting																		Brightness; Contrast; Sharpness; Saturation; Gamma
OSD Overlay																		Time; channel; location; image; custom title; face statistics; target statistics
Record Mode																		Manual record; video detection record; schedule record; alarm record Record priority: Manual>alarm record>video detection>schedule
Micro SD Card (Max.)																		512 GB
Default																		Support one-click restore
User Management																		Up to 20
Security																		User name and password; MAC address; HTTPS; IEEE802.1x; network access control
Low Illuminance Level																		Deeplight
Video
Video Compression																		H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec																		Smart H.265+; Smart H.264+
AI Coding																		AI H.265; AI H.264
Video Frame Rate																		Main stream: 2960 × 1668@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability																		4 streams
Resolution																		5M (2960 × 1668); 5M (2880 × 1620); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control																		CBR/VBR
Video Bit Rate																		H.264: 32 kbps–16384 kbps; H.265: 12 kbps–11776 kbps
Day/Night																		Auto(ICR)/Color/B/W
BLC																		Yes
HLC																		Yes
WDR																		120 dB
Scene Self-adaptation (SSA)																		Yes
White Balance																		Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control																		Auto
Noise Reduction																		3D NR
Motion Detection																		OFF/ON (4 areas, rectangular)
Default Bit Rate with Default Resolution																		4096 kbps (2880 × 1620)
Region of Interest (RoI)																		Yes (4 areas)
Image Stabilization																		Electronic Image Stabilization (EIS)
Defog																		Yes
Image Rotation																		0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
Mirror																		Yes
Privacy Masking																		8 areas
Language																		English; Traditional Chinese; Italian; Spanish; Japanese; Russian; French; German; Portuguese; Turkish; Polish; Romanian; Hungarian; Korean; Czech; Dutch; Ukrainian; Vietnamese; Arabic; Spanish (Europe); Hebrew; Thai; Bahasa Indonesia
Alarm
Alarm Event																		No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
Network
Network Port																		RJ-45 (10/100 Enhancement Base-T)
SDK and API																		Yes
Network Protocol																		IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability																		ONVIF (Profile S & Profile G & Profile T); CGI
User/Host																		20 (Total bandwidth: 80 M)
Storage																		FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser																		IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later
Management Software																		SmartPSS Lite; DSS; DMSS
Mobile Client																		iOS;Android
Cyber Security																		Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
Environment
Operating Temperature																		–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity																		≤95%
Storage Temperature																		–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity																		10%–95% (RH), non-condensing
Protection																		IP67; IK10
Lens
Lens Type																		Motorized vari-focal
Lens Mount																		Module
Focal Length																		7 mm–35 mm
Max. Aperture																		F1.6
Field of View																		H: 31°–11°; V: 17°–6°; D: 36°–13°
Iris Control																		Auto
Iris Control Type																		P-Iris
Close Focus Distance																		1.5 m (4.92 ft)
DORI Distance																		W: D: 213.6 m; O: 85.4 m; R: 42.7 m; I: 21.4 m (D: 700.79 ft; O: 280.18 ft; R: 140.09 ft; I: 70.21 ft) T: D: 572.8 m; O: 229.1 m; R: 114.6 m; I: 57.3 m (D: 1879.27 ft; O: 751.64 ft; R: 375.66 ft; I: 187.99 ft)
Camera
Appearance																		Bullet
Image Sensor																		1/2.7" CMOS
Pixel																		5 MP
Max. Resolution																		2960 (H) × 1668 (V)
ROM																		4 GB
RAM																		1 GB
Scanning System																		Progressive
Electronic Shutter Speed																		Auto/Manual 1/3 s–1/100,000 s
Min. Illumination																		0.0009 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio																		＞56dB
Illumination Distance																		Up to 120 m (393.70 ft) (IR LED)
Illuminator On/Off Control																		Auto;Manual;Zoomprio
Illuminator Number																		4 (IR LED)
Angle Adjustment																		Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Built-in Battery																		Support 1 mAH rechargeable button lithium battery
Audio
Built-in MIC																		Yes
Audio Compression																		G.711a; G.711Mu; PCM; G.726; G.723
Audio Sampling																		8 kHz; 16 kHz; 32 kHz; 48 kHz; 64 kHz
Structure
Casing Material																		Metal
Product Dimensions																		273.2 mm × 95.0 mm × 95.0 mm (10.76" × 3.74" × 3.74") (L × W × H)
Packaging Dimensions																		369 mm × 148 mm × 139 mm (14.53" × 5.83" × 5.47") (L × W × H)
Net Weight																		1.13 kg (2.49 lb)
Gross Weight																		1.68 kg (3.70 lb)
Installation																		Junction mount; wall mount; ceiling mount; pole mount; in-ceiling mount
Power Adapter																		Optional
Lens																		Included
Power
Operating Voltage																		12 VDC (±30%); PoE (802.3af)
Power Supply																		12 VDC; PoE (802.3af); ePoE
Dual Power Backup																		When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption																		Basic: 3.6 W (12 VDC); 4.7 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 10.4 W (12 VDC); 13.0 W (PoE)

Features

Lens	Motorized lens
Color	White
Resolution	5MP
Camera type	Bullet
Product class	LITE
IR distance	≤ 80 m
AI functionality	Pro AI
Features	Support MicroSD ≤ 512GB
Features	Starlight
Features	AcuPick

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
