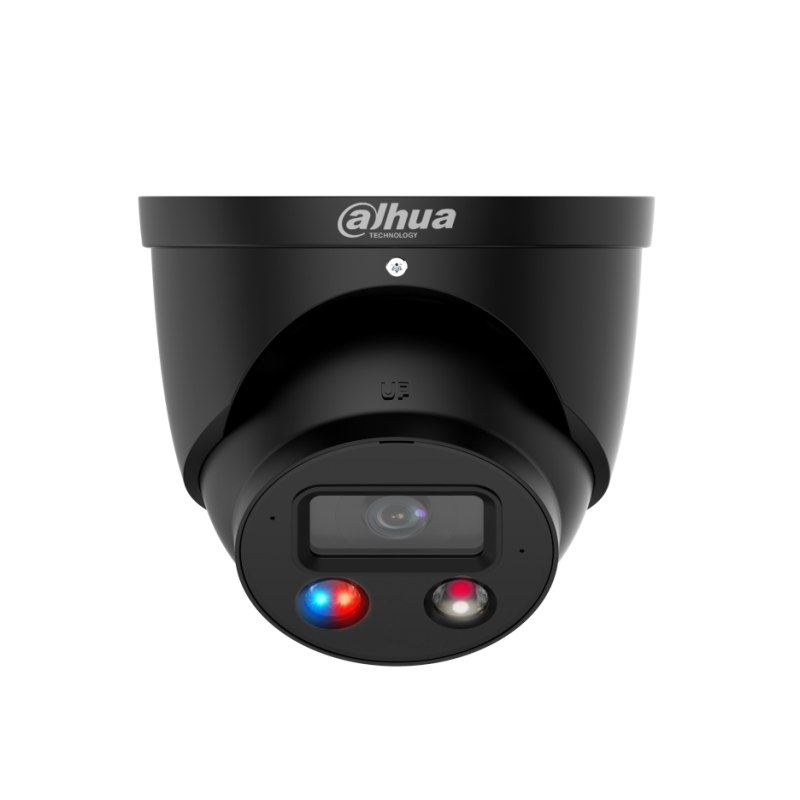

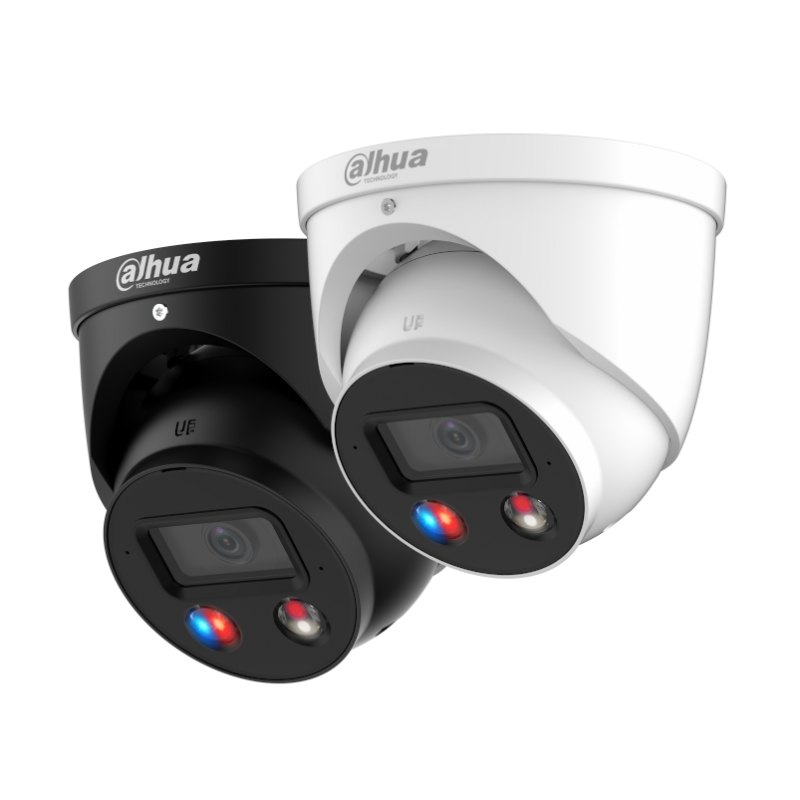

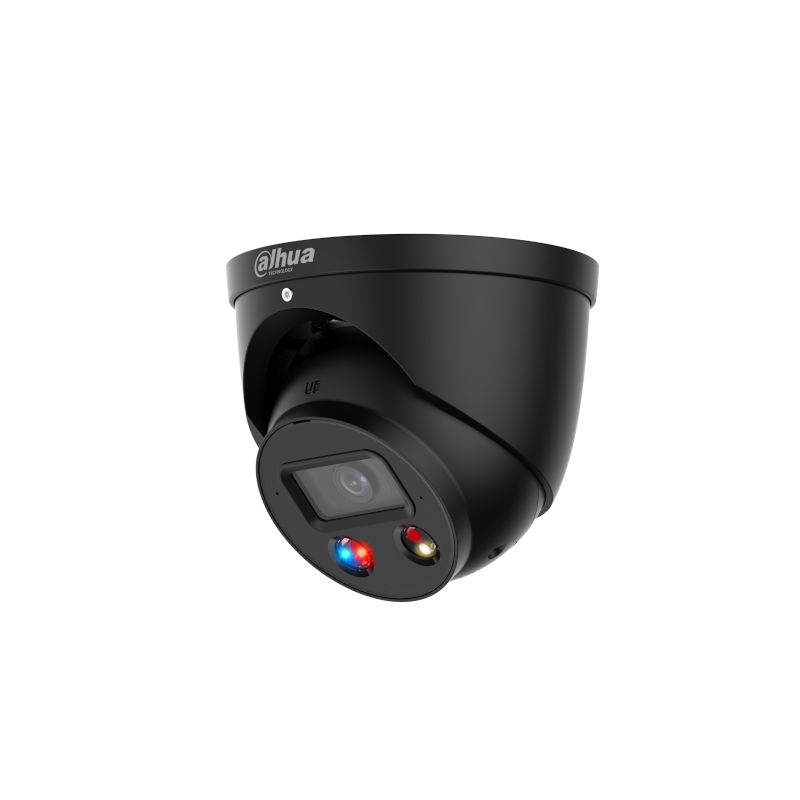

IPC-HDW3849H-AS-PV 8MP Smart Dual Illumination Active Deterrence 2.8mm Camera BLACK

IP Cameras

Product reference: CAHDW3849HASPVS5-BL

8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 ×2160)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
12 VDC/PoE power supply.
IP67.
Sound and light alarm (red and blue lights).
SMD 4.0.
Supports AI SSA and one-tap arming and disarming.
SMD area can be set in warm light areas that support triggering alarms.

At stores prices may vary

Price:

€361.79

€299.00 tax excl.

Favourite

We have 1 pcs
Delivery in 1 business days

Product information

IPC-HDW3849H-AS-PV 8MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera.

Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; 1-ch speaker; support two-way talk
IVS (Perimeter Protection). Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 4.0. Less false alarm, longer detection distance
Quick Pick. With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
AI SSA. Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search. Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Specifications

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

256 MB

RAM

2 G

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.004 lux@F1.0 (Color, 30 IRE)

0.0004 lux@F1.0 (B/W, 30 IRE)

0 lux (illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

1 (IR LED); 1 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 106°; V: 55°; D: 125°

3.6 mm: H: 85; V: 45°; D: 102°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66.0 m

(216.54 ft)

26.4 m

(86.61 ft)

13.2 m

(43.31 ft)

6.6 m

(21.65 ft)

3.6 mm

78.0 m

(255.91 ft)

22.2 m

(102.36 ft)

15.6 m

(51.18 ft)

7.8 m

(25.59 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD 4.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265 (Compression rate ≥25%)
AI H.264 (Compression rate ≥25%)

Video Frame Rate

Main stream: 3840 × 2160 @(1 fps–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR/ABR

Video Bit Rate

H.264: 3 kbps–16384 kbps;

H.265: 3 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

LDC

Yes

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S; Profile G;Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP;SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE 9/11
Chrome
Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Video encrypton;Firmware encrypton;Confguraton

encrypton;Digest;WSSE;Account lockout;Security logs;IP/

MAC fltering;Generaton and importng of X.509 ce

rtfcaton;syslog;HTTPS;802.1x;Trusted boot;Trusted

executon;Trusted upgrade

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC; PoE

Power Consumption

Basic: 4.5 W (12 VDC); 5.8 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.6 W (12 VDC); 10.1 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

Φ122.0 mm × 110.9 mm (4.80" × Φ4.37")

Net Weight

0.75 kg (1.65 lb)

Gross Weight

0.92 kg (2.03 lb)

Features

Lens	2.8
Color	Black
Resolution	4K
Camera type	Dome
Product class	LITE
IR distance	≤ 30 m
AI functionality	Lite AI
Features	Sirena ir švyturėliai
Features	Dual Illumination
Features	Build-in Mic
Features	Full-Color
Features	Support MicroSD ≤ 256 GB
