IPC-HDBW2449F-AS-IL 4MP Smart Dual Light Fixed-focal Dome WizSense Network Camera

IP Cameras

Product reference: CAHDBW2449FASIL28

4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Supports max. 256 G Micro SD card; built in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 and IK10 protection.
SMD Plus.

At stores prices may vary

Price:

€180.29

€149.00 tax excl.

Favourite

Product information

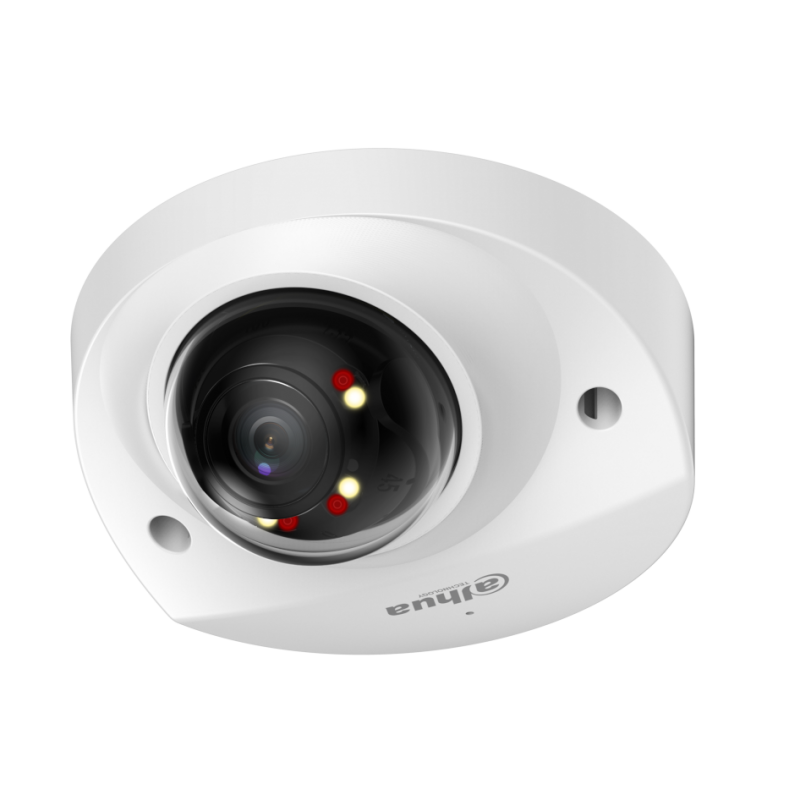

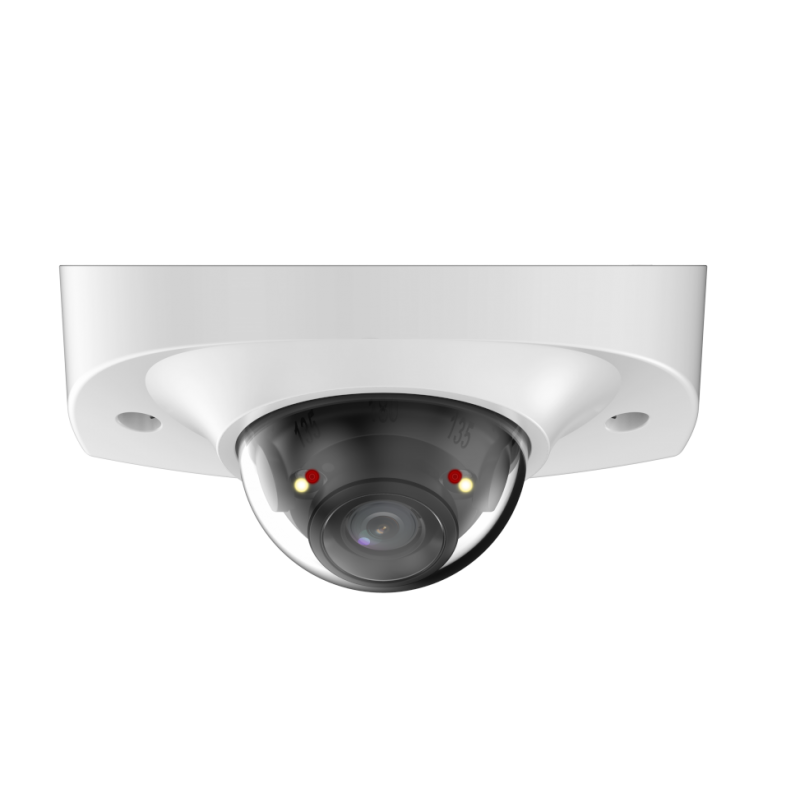

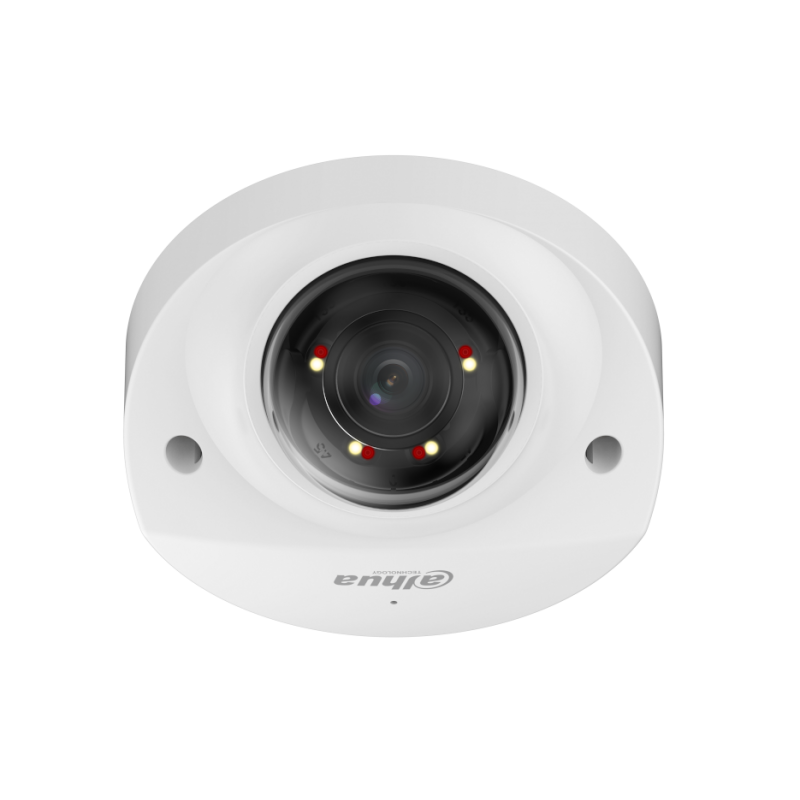

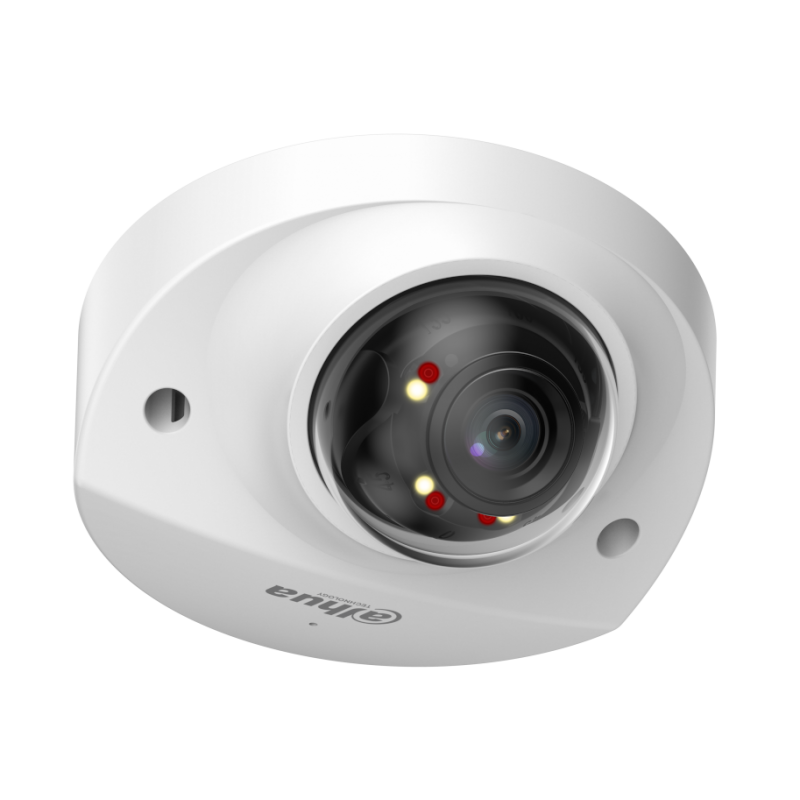

IPC-HDBW2449F-AS-IL 4MP Smart Dual Light Fixed-focal Dome WizSense Network Camera.

Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

Wizsense functions:

Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

Specifications

Camera

Image Sensor

1/2.9" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.006 lux@F1.6 (Color, 30 IRE);

0.0006 lux@F1.6 (B/W, 30 IRE);

0 lux (Illuminator on)

S/N Ratio

＞56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)

Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

4 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: -30° to 30°;

Tilt: 0° to 80°;

Rotation: 0° to 360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 101°; V: 54°; D: 120°3.6 mm: H: 83°; V: 43°; D: 100°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.1 m (3.61 ft)3.6 mm: 1.7 m (5.58 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m( 208.66 ft)

25.4 m( 93.33 ft)

12.7 m( 41.67 ft)

6.4 m

( 21.00 ft)

3.6 mm

85.4 m( 280.18 ft)

34.2 m( 112.20 ft)

17.1 m( 56.10 ft)

8.5 m

( 27.89 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD Plus

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps)

sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps;

H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Smart Dual Light

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; external alarm

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

User/Host

6 (Total bandwidth: 36 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB)

Browser

IE; Chrome;Firefox

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2.3 W (12 VDC), 2.8 W (PoE);

Max.: 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95%

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

55.0 mm × Φ108.9 mm (2.17" × Φ4.29")

Net Weight

0.41 kg (0.90 lb)

Gross Weight

0.55 kg (1.21 lb)

Features

Lens	2.8
Color	White
Resolution	4MP
Camera type	Dome
Product class	LITE
IR distance	≤ 30 m
AI functionality	Lite AI
Features	Support MicroSD ≤ 256 GB
Features	Build-in Mic

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
