IPC-HDW2449T-S-PRO 4MP WizColor Fixed-focal WizSense Network Camera

IP Cameras

Product reference: CAHDW2449TSLED28PRO

4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560×1440 (2560 × 1440) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light, and the max. illumination distance is 30 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Supports max. 256 G Micro SD card; built in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD Plus

At stores prices may vary

Price:

€180.29

€149.00 tax excl.

Favourite

We have +10 pcs
Delivery in 1 business days

Product information

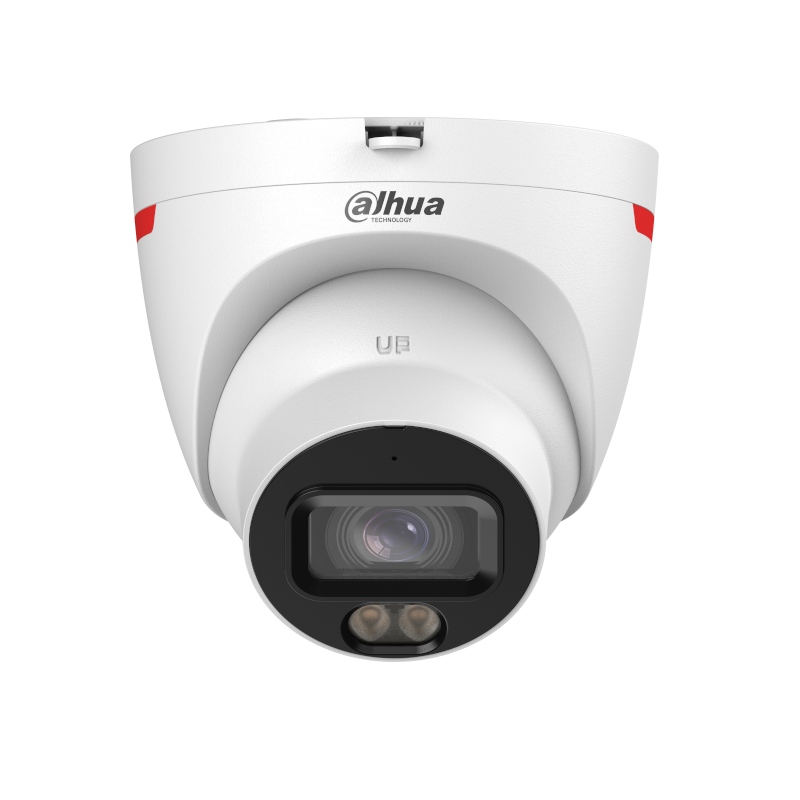

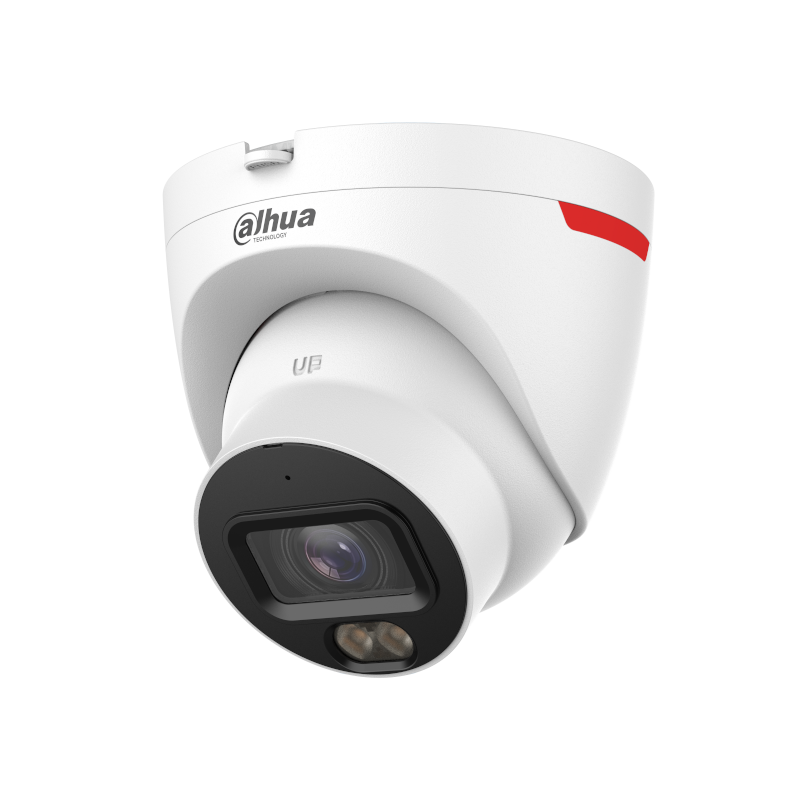

IPC-HDW2449T-S-PRO 4MP WizColor Fixed-focal Eyeball WizSense Network Camera.

Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
IVS (Perimeter Protection). Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD Plus
Smart Search. Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Specifications

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0005 lux@F1.0

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (Warm light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M16

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 112°; V: 60°; D: 134°

3.6 mm: H: 94°; V: 50°; D: 113°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.7 m (5.58 ft)

3.6 mm: 2.6 m (8.53 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

57.9 m

( 189.96 ft)

23.2 m

( 76.12 ft)

11.6 m

( 38.06 ft)

5.8 m

( 19.03 ft)

3.6 mm

70.3 m

( 230.64 ft)

28.1 m

( 92.19 ft)

14.1 m

( 46.26 ft)

7.0 m

( 22.97 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human);

SMD

SMD Plus

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps)

sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

VBR;CBR

Video Bit Rate

H.264: 32 kbps–6144 kbps;

H.265: 12 kbps–6144 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

LDC

Yes

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE; Chrome; Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Power

Power Supply

12 VDC; PoE

Power Consumption

Basic: 2.0 W (12 VDC); 2.5 W (PoE);

Max.: 5.3 W (12 VDC); 6.4 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Inner core: Metal;

Cover: Plastic

Product Dimensions

109.5 mm × Φ109.9 mm (4.31" × Φ4.33")

Net Weight

0.42 kg (0.93 lb)

Gross Weight

0.59 kg (1.30 lb)

Features

Lens	2.8
Color	White
Resolution	4MP
Camera type	Dome
Product class	LITE
IR distance	≤ 30 m
AI functionality	Lite AI
Features	Support MicroSD ≤ 256 GB
Features	WizColor
Features	Build-in Mic
