Dahua HUM4431S1-L4-AS-0280B pinhole IP camera 4MP, 2.8mm

IP Cameras

Product reference: CAHUM4431S1L4AS0280B

> 4-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 4 MP (2688 ×1520)@20 fps, and supports 3.6 MP (2560 × 1440) @25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate.

> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, external alarm and security exception.

> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in Mic.

> 12 VDC/PoE power supply, easy for installation.

At stores prices may vary

Price:

€225.06

€186.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

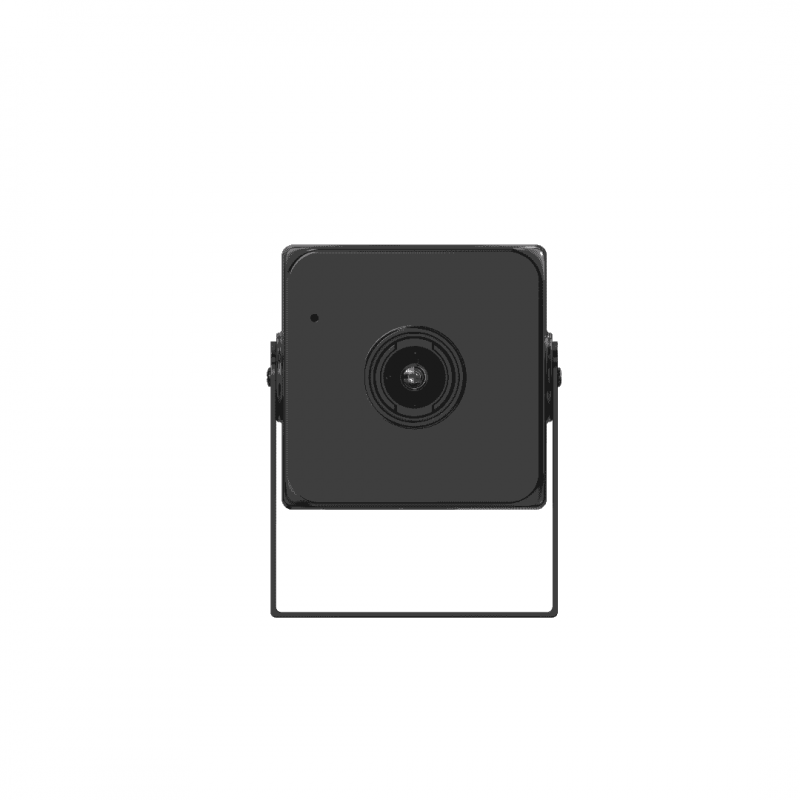

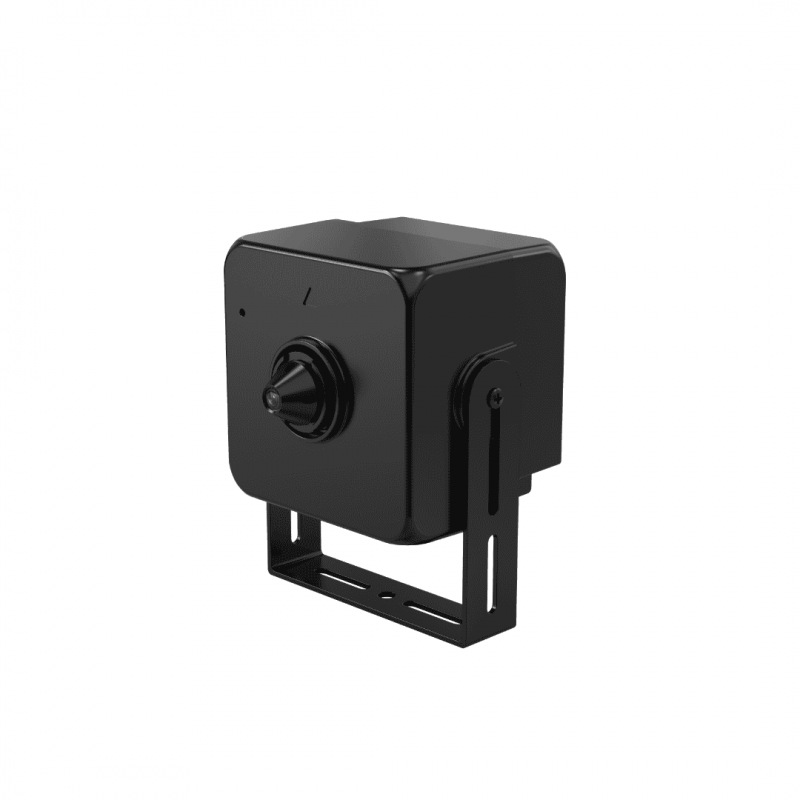

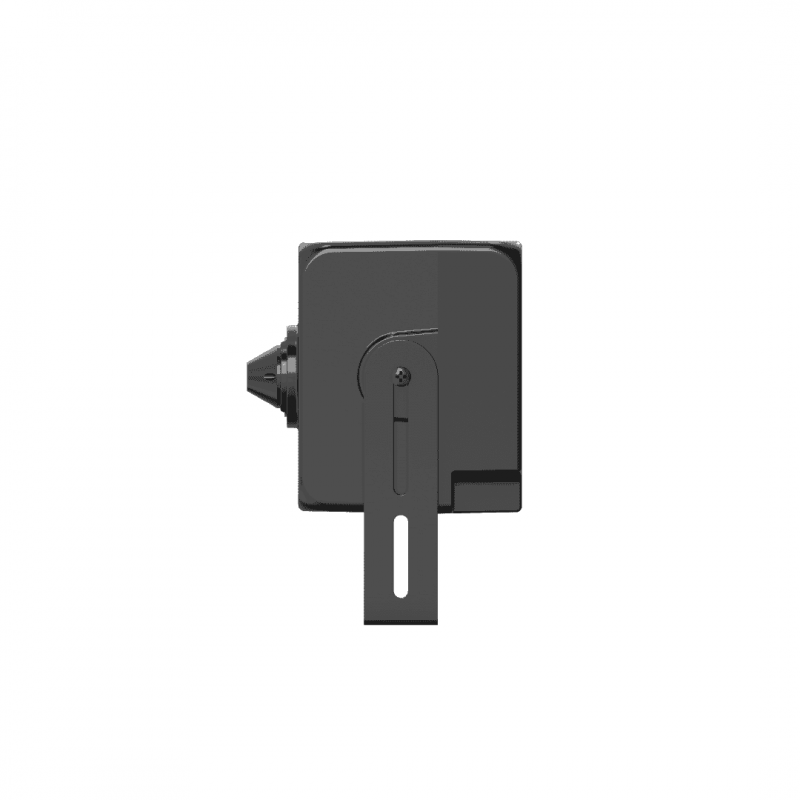

Dahua HUM4431S1-L4-AS-0280B pinhole IP camera 4MP, 2.8mm

4MP Fixed-focal Pinhole Network Camera-PoE

Smart H.265+ & Smart H.264+

With an advanced scene-adaptive bitrate control algorithm, Dahua smart encoding technology provides higher efficiency than H.265 and H.264. It ensures high-quality video while reducing storage and transmission costs.

WDR (Wide Dynamic Range)

Advanced WDR technology delivers clear image details even in environments with strong brightness contrast. Both bright and dark areas remain visible, even in backlight conditions.

Starlight

With advanced image processing and optical technologies, Dahua Starlight delivers clear, colorful video even in low-light environments. It is ideal for poorly lit areas.

Protection (Wide Voltage)

The camera supports ±30% input voltage tolerance, ensuring stable operation even in environments with unstable power supply, especially outdoors.

Cyber Security

Dahua network cameras use multiple security technologies, including authentication, access control, encrypted transmission, and secure storage. These features protect against cyber threats and unauthorized access.

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 [email protected] (Color, 30 IRE)
0.001 [email protected] (B/W, 30 IRE)

S/N Ratio

>56 dB

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Max. Aperture

F2.0

Field of View

Horizontal: 100°; Vertical: 57°; Diagonal: 114°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

61.0 m
(200.13 ft)

24.4 m
(80.05 ft)

12.2 m
(40.03 ft)

6.1 m
(20.01 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Compression

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520 @(1–20 fps )/2560 × 1440 @(1–25/30 fps )
sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

4M (2688 × 1520); 3.6 M (2560 × 1440); 3M (2304 ×1296); 1080p (1920 × 1080); 1.3M (1920 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 ×288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–6144 kbps
H.265: 3 kbps–6144 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access; motion detection, video tampering, audio detection; external alarm; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade;Session Security;Security Warning

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

User/Host

6 (Total bandwidth: 24 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS; Auto Network Replenishment (ANR)

Browser

IE
Chrome
Firefox

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Certification

Certifications

CE-LVD:EN62368-1;
CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC

Power

Power Supply

12 VDC; PoE (802.3af)

Power Consumption

Basic: 1.7 W (12 VDC); 2.7 W (PoE)

Max.(H.265 + WDR): 2.1 W (12 VDC); 3.5 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Structure

Casing

Metal

Product Dimensions

67.5 mm × 53.4 mm × 48.2 mm (2.66" × 2.1" × 1.9") (L × W × H)

Net Weight

155 g (0.34 lb)

Gross Weight

190 g (0.42 lb)

Features

Lens	2.8
Color	Black
Resolution	4MP
Camera type	Mini, pinhole
Features	Support MicroSD ≤ 256 GB
Features	Starlight
