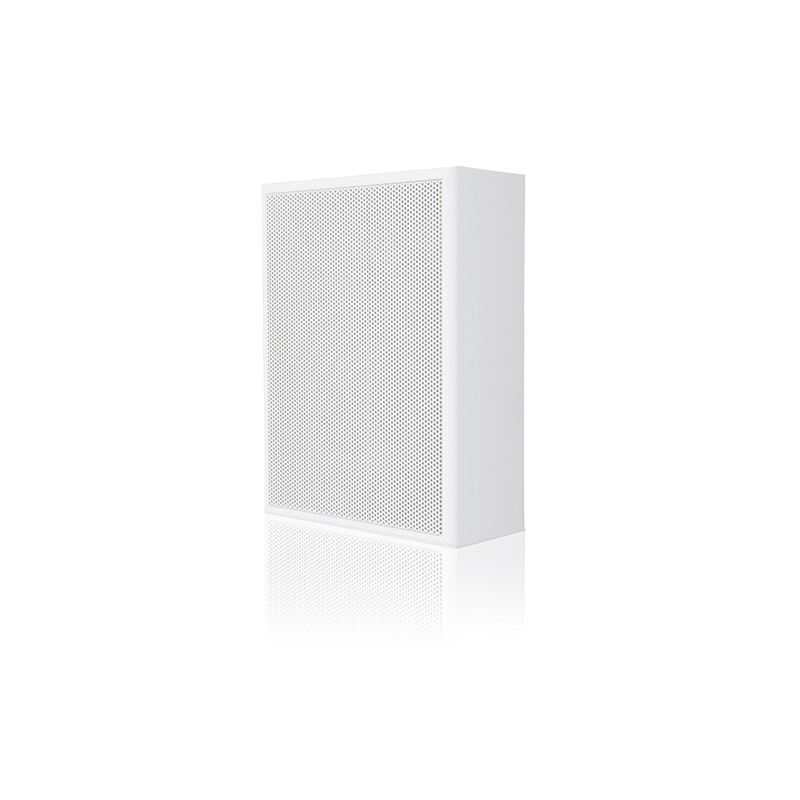

WAL 165/6 PP 6.5” 10W Wall mount loudspeaker, 99.2 dB

Loudspeakers

Product reference: PSWAL 165/10 PP

Wall loudspeakers for Voice Alarm.
Rated power 10W@100V.
SPL 99,2 (dB).
Certified EN54pt24.
Indoor use (Tyoe A) IP21.
4 power adjutments (6/3/1,5/0,75W).
MDF made rectangular cabinet.

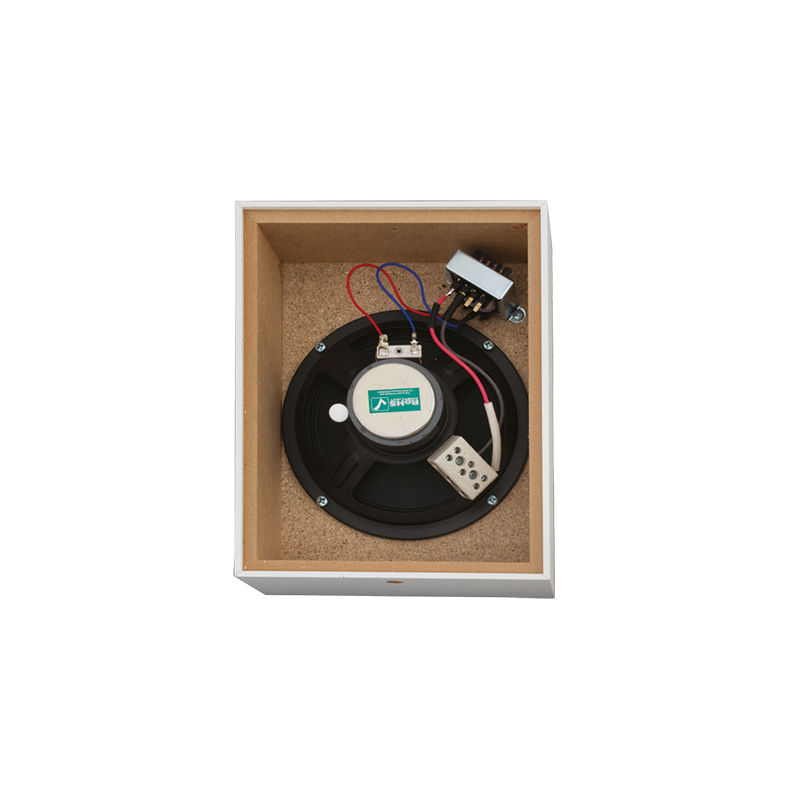

3-pin ceramic block and thermal fuse.
Dimensions 253X193X83mm.
White color RAL 9010.

Product information

The WAL 165/10 PP loudspeaker for voice evacuation systems is a compact rectangular shaped 10W loudspeaker in a wooden casing which, in addition to providing sturdiness to the device. On account of its shape, the materials it is made of, its versatility and the 165mm thick enclosure it ensures optimum frequency response, making the acoustic propagation of this device suitable for a wide variety of applications such as hotels, hostels, commercial buildings, hospitals and schools. The loudspeaker has an IP 21C protection grade; the connection unit has a ceramic (or plastic) terminal block with thermal fuse. EN54-24 certified.

Electrical specifications of the WAL 165/6 PP loudspeaker

Power (PHC): 6 / 3 / 1.5 / 0.75 W (internal selector)
SPL (Sound Pressure Level): 99.2 dB (1W @ 1m)
Frequency response: 140 Hz – 20.000 KHz (-10 dB)
Operating voltage: 70 – 100 Vrms

Mechanical specifications of the WAL 165/6 PP loudspeaker

IP protection grade (according to EN54-24 / IP Rating): 21C
Enclosure material: MDF
Dimensions: 253 x 193 x 83 mm
Weight: 1.9 Kg
Colour: White RAL 9010
Mounting type: Wall mount

Features

Speaker type

Wall Loudspeakers

Manufacturer

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.
