WAC 165/6 PP1 6.5” 6W Wall-mount loudspeaker SPL 96 dB

Loudspeakers

Product reference: PSWAC165-6PP1

Wall loudspeakers for Voice Alarm, elegant with a convex rectangular shape.
Rated power 6W@100V.
SPL 96(dB).
Certified EN54pt24.
Indoor use (Tyoe A) IP21.
4 power adjutments (6/3/1,5/0,75W).
ABS made.
3-pin ceramic block and thermal fuse.
Dimensions 330x209x84mm.
White color RAL 9010.

Product information

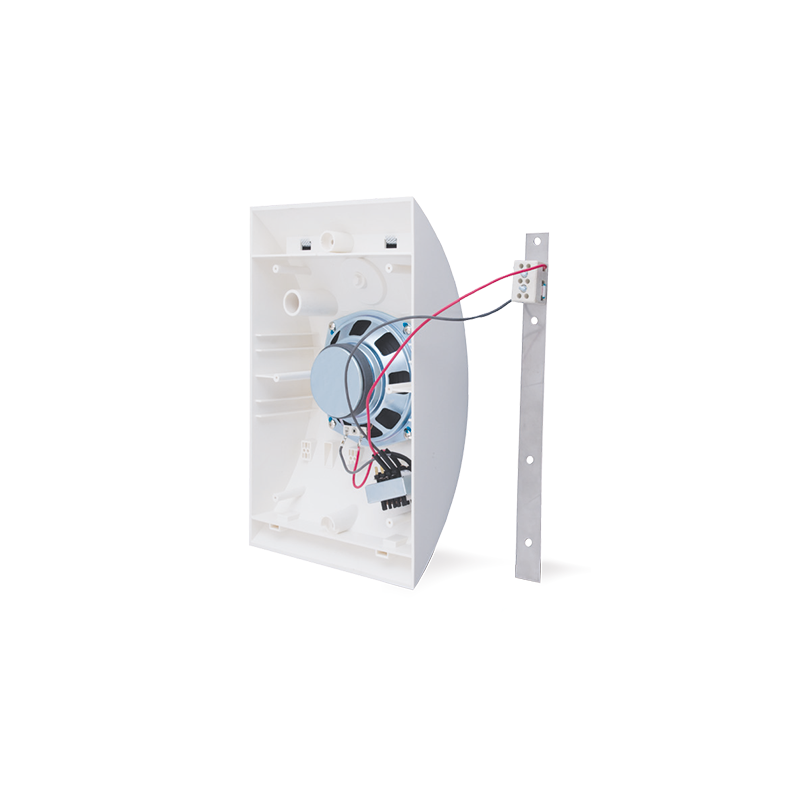

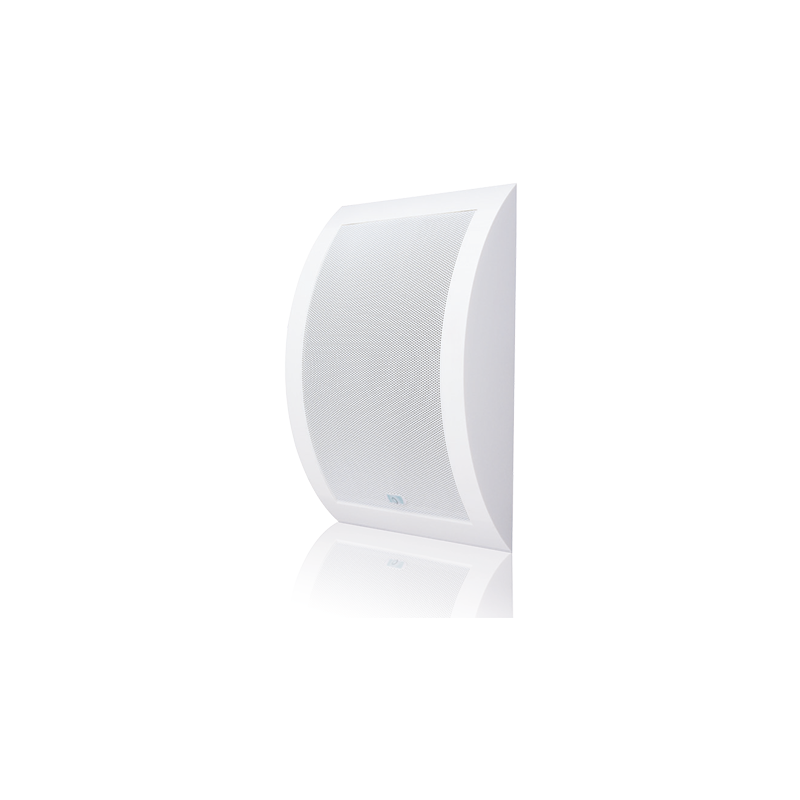

The distinguishing feature of the WAC 165/6 PP1 loudspeaker for voice evacuation systems is its elegant design (rectangular shape). Wall mounting this device offers the possibility of positioning it both horizontally and vertically. This 6W loudspeaker guarantees high quality reproduction of voice announcements and background music and is suitable for installation in places such as conference rooms, shops, hotels, offices, as well as museums and restaurants. EN54-24 certified.

Electrical specifications of the WAC 165/6 PP1 loudspeaker

Power (PHC): 6 / 3 / 1.5 / 0.75 W (internal selector)
SPL (Sound Pressure Level): 96 dB (1W @ 1m)
Frequency response: 145 Hz – 19.000 KHz (-10 dB)
Operating voltage: 70 – 100 Vrms

Mechanical specifications of the WAC 165/6 PP1 loudspeaker

IP protection grade (according to EN54-24 / IP Rating): 21C/32
Enclosure material: ABS
Dimensions: 330 x 209 x 84 mm
Weight: 1.2 Kg
Colour: White RAL 9010
Mounting type: Wall mount

Features

Speaker type

Wall Loudspeakers
