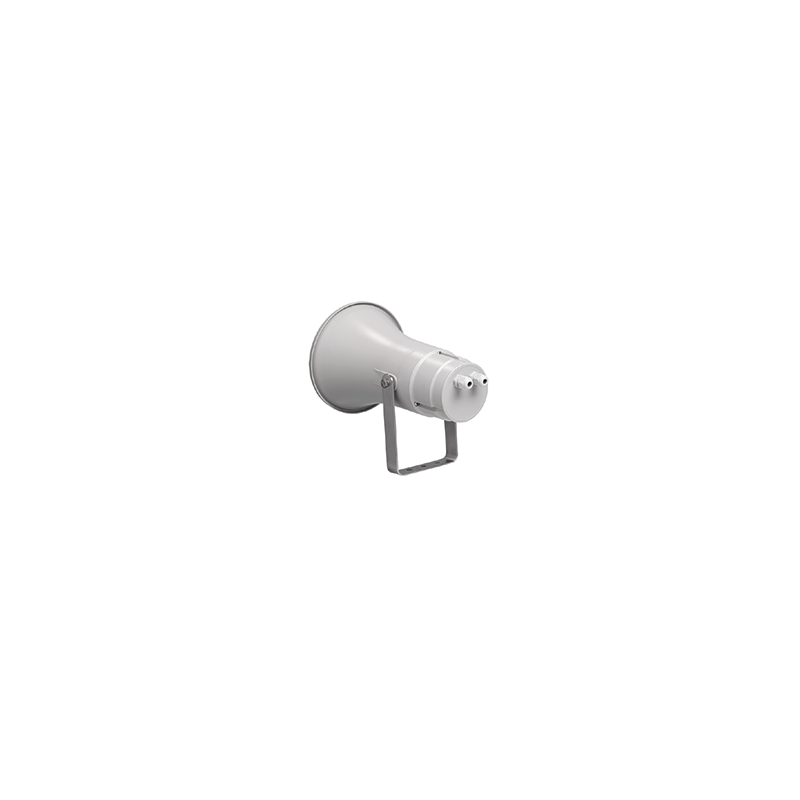

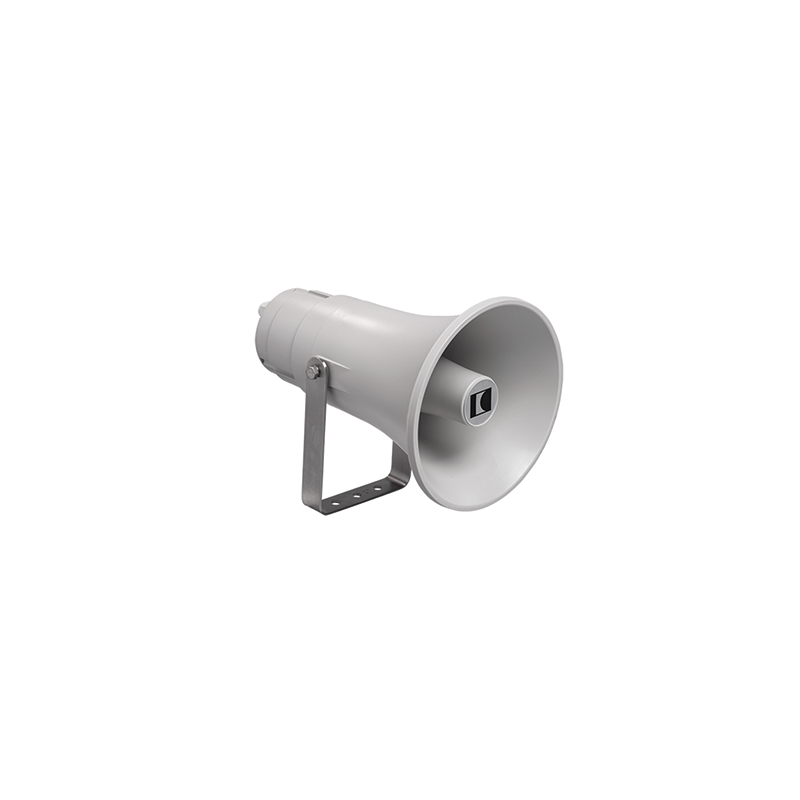

DK 30/T-EN54-PG 30W Wall or ceiling mount horn loudspeaker IP66

Loudspeakers

Product reference: PSDK30/T-EN54-PG

The 30W DK 30/T-EN54-PG horn loudspeaker for voice evacuation systems is equipped with a line transformer with 4 power settings and is EN54-24 certified.

In manufacturer warehouse
Ask

Product information

The 30W DK 30/T-EN54-PG horn loudspeaker for voice evacuation systems is equipped with a line transformer with 4 power settings and is EN54-24 certified. The ABS material which it is made of provides this loudspeaker with high impact resistance and long-term stability, also provided by a ceramic terminal block and a thermal fuse included in the product package. The package also includes a universal U-shaped stainless steel support to ensure flexible installation (wall or ceiling).

Electrical specifications of the DK 30/T-EN54-PG loudspeaker

Power (PHC): 30 / 20 / 10 / 5 (20) W (internal selector)
SPL (Sound Pressure Level): 96 dB (1W @ 1m)
Frequency response: 250 Hz – 15.000 KHz (-10 dB)
Operating voltage: 70 – 100 Vrms

Mechanical specifications of the DK 30/T-EN54-PG loudspeaker

IP protection grade: 66
Enclosure material: ABS
Dimensions: 235 x 351 mm
Weight: 2.27 Kg
Colour: Grey RAL 7035
Mounting type: Wall, ceiling

Features

Speaker type	Wall Loudspeakers
Speaker type	Sound Project and Horn Loudspeakers
Speaker type	Ceiling Loudspeakers
