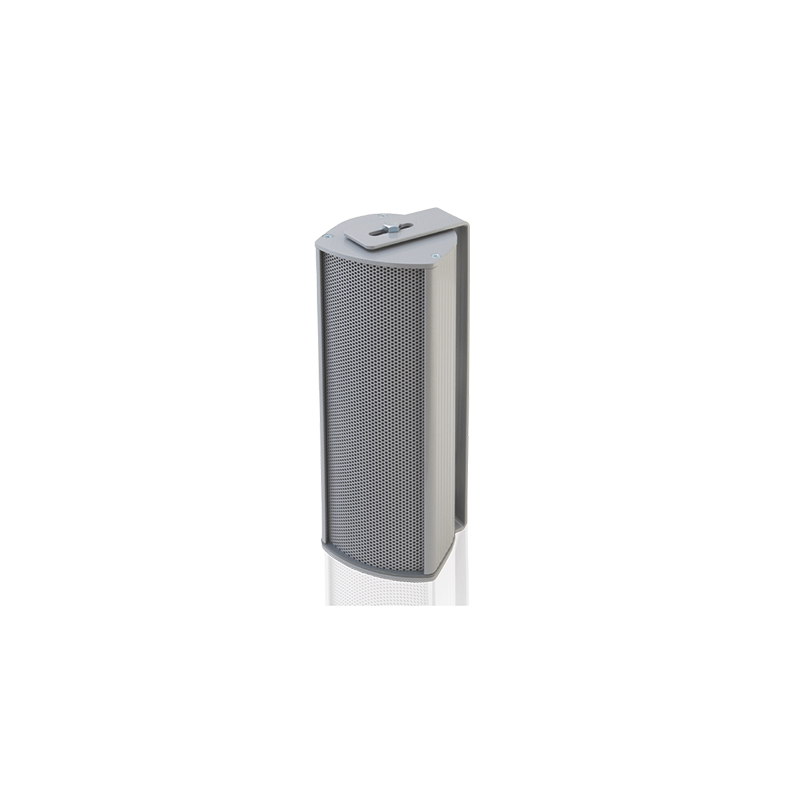

TSU 300/10 PP 10W Wall mount column loudspeaker

Loudspeakers

Product reference: PSTSU 300/10 PP

Sound column for Voice Alarm.
Rated power e 10W@100V. SPL 96 (dB).
Certified EN54 pt24.
Outdoor/indoor use (TypeB) IP65.
4 power adjutments (10/6/3/1,5W).
Wall mounting.
Aluminium housing.
3-pin ceramic block and thermal fuse.
Dimensions 285x100x92mm.
Aluminium color RAL 9006.

Product information

The TSU 300/10 PP column loudspeaker for voice evacuation systems is a 10W loudspeaker that combines elegant design with a sturdy powder-paint coated aluminium structure comprising two speakers, a ceramic terminal block and a thermal fuse. With IP65 protection class, this device is ideal for installation indoors, in places such as hotels, conference rooms and administrative buildings, but above all in semi-outdoor environments such as airports and railway stations, thanks to its technical characteristics which guarantee excellent sound propagation (reproduction of voice alarms and background music). EN54-24 certified.

Electrical specifications of the TSU 300/10 PP loudspeaker

Power (PHC): 10 / 6 / 3 / 1.5 W (internal selector)
SPL (Sound Pressure Level): 96 dB (1W @ 1m)
Frequency response: 125 Hz – 20.000 KHz (-10 dB)
Operating voltage: 70 – 100 Vrms

Mechanical specifications of the TSU 300/10 PP loudspeaker

IP protection grade (according to EN54-24 / IP Rating): 44/65
Enclosure material: Aluminium
Dimensions: 285 x 100 x 92 mm
Weight: 1.7 Kg
Colour: Grey RAL 9006
Mounting type: Wall mount

Features

Speaker type	Sound Project and Horn Loudspeakers
Speaker type	Wall Loudspeakers
