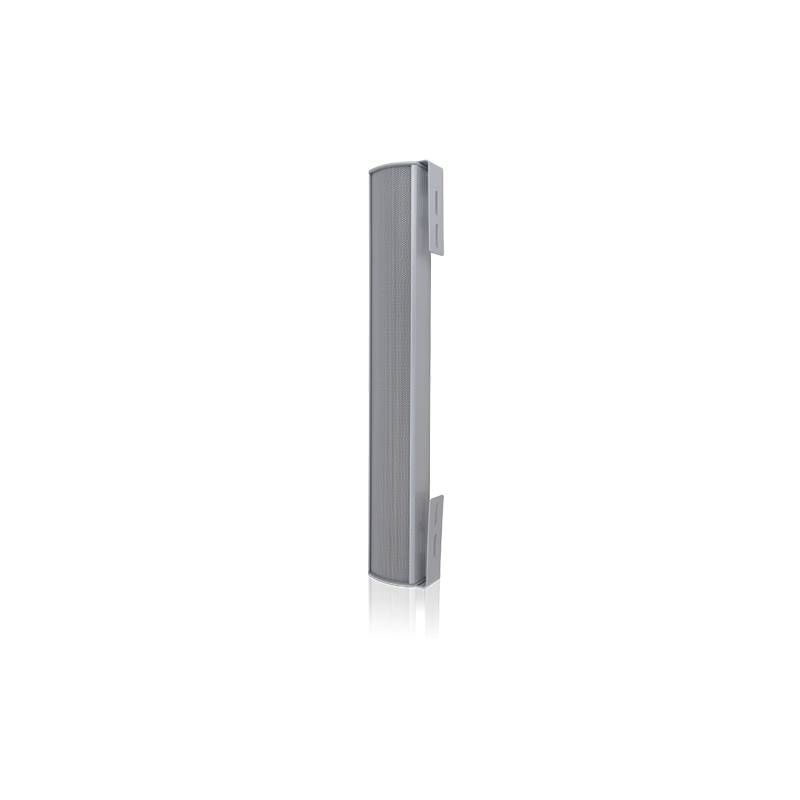

TSU 700/30 PP 30W Wall mount column loudspeaker

Loudspeakers

Product reference: PSTSU 700/30 PP

Sound column for Voice Alarm.
Rated power 30W@100V.
SPL 106 (dB).
Certified EN54 pt24.
Outdoor/indoor use (TypeB) IP65.
4 power adjutments (30/15/7,5 W).
Wall mounting.
Aluminium housing. 3-pin ceramic block and thermal fuse.
Dimensions 700x100x92mm.
Aluminium color RAL 9006.

Product information

The TSU 700/30 PP column loudspeaker for voice evacuation systems is a 30W loudspeaker that combines elegant design with a sturdy powder-paint coated aluminium structure comprising two speakers, a ceramic terminal block and a thermal fuse. With IP65 protection class, this device is ideal for installation indoors, in places such as hotels, conference rooms and administrative buildings, but above all in semi-outdoor environments such as airports and railway stations, thanks to its technical characteristics which guarantee excellent sound propagation (reproduction of voice alarms and background music). EN54-24 certified.

Electrical specifications of the TSU 700/30 PP loudspeaker

Power (PHC): 30 / 15 / 7.5 W (internal selector)
SPL (Sound Pressure Level): 106 dB (1W @ 1m)
Frequency response: 120 Hz – 13.300 KHz (-10 dB)
Operating voltage: 70 – 100 Vrms

Mechanical specifications of the TSU 700/30 PP loudspeaker

IP protection grade (according to EN54-24 / IP Rating): 44/65
Enclosure material: Aluminium
Dimensions: 700 x 100 x 92 mm
Weight: 3.7 Kg
Colour: Grey RAL 9006
Mounting type: Wall mount

Features

Speaker type	Wall Loudspeakers
Speaker type	Sound Project and Horn Loudspeakers
