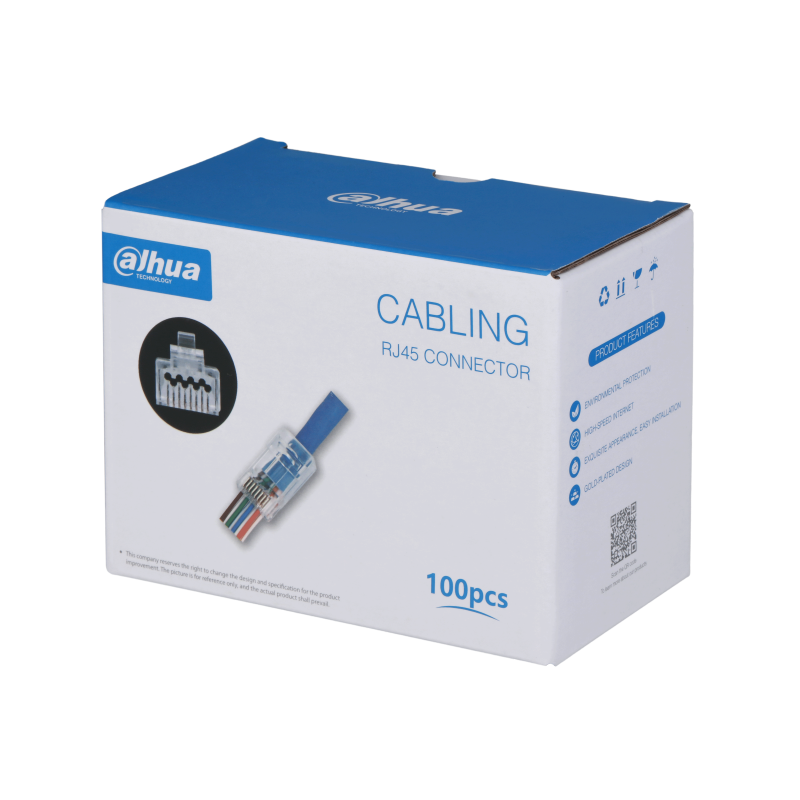

PFM976-631-PT UTP CAT6 15U" Pass Through RJ45 Connector

Other Equipment

Product reference: KSPFM976-631-PT

Unshielded CAT6 RJ-45 connector.
Designed with a through hole for cables to be fed through.
Built with trident brass sheet and 15U" gold plating.
Lifespan of 750 cycles.

At stores prices may vary

Price:

€7.50

€6.20 tax excl.

Favourite

We have 10+ qty.
Delivery in 1-2 business days

Product information

Specifications:

Material

PC + brass

Gold Plating Thickness

15U"

Flammability Rating

UL94V-2

Electrical

Operating Voltage

150 VAC RMS

Operating Current

1.5 AMP

Contact Resistance

≤ 20 mΩ

Insulation Resistance

≥1000 MΩ@500 VDC

Withstands Voltage between Terminals

1000 VDC/VAC PEAK @0.5 mA 50 Hz or 60 Hz 1 Minute

Mechanical

Retention Strength

50 N for 60 s ± 5 s

Lifespan

750 times

Insertion Force

≤ 30 N

Environmental

Operating Temperature

–25 °C to +55 °C (–13 °F to +131 °F)

Storage Temperature

–10 °C to +40 °C (+14 °F to +104 °F)

Storage Humidity

< 80%

Storage Time

12 months

Structural

Single Strand Cable Diameter

21 AWG–23 AWG

Single Strand Insulated Cable Diameter

1.09 mm–1.20 mm (0.043"–0.047")

Outer Sheath Diameter

≤ 6.4 mm (0.25")

Packaging Dimensions

120 mm × 65 mm × 90 mm (4.72" × 2.55" × 3.54")

Transport Package Dimensions

500 mm × 350 mm × 270 mm (19.69" × 13.78" × 10.63")

Packaging Method

100 pcs in 1 carton, and 50 cartons in 1 package

Net Weight

0.14 kg (0.31 lb)

Gross Weight

0.18 kg (0.40 lb)
