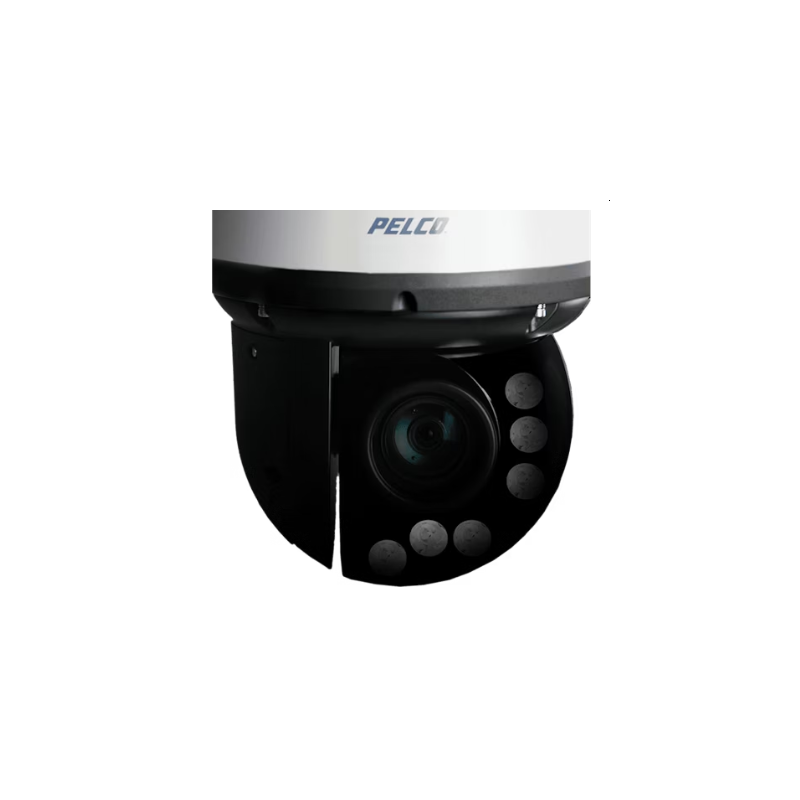

PELCO PTZ camera P2230L-ESR, 2Mp, 30x, 150IR, EIS, SPECTRA PRO series

Product information

The 2 MP 30x model allows you to see in absolute darkness. Its automated IR illumination offers proportional brightness based upon zoom, creating visible images without any light up to 150m from the camera. It comes equipped with a wider tilt range, providing the ability to see 15-degrees above the horizon for greater situational awareness. The camera’s True Wide Dynamic Range delivers clear details in both very bright and dark areas.

CAMERA/OPTICS

SOFTWARE FEATURES

• 256 presets
• 16 tours
• 4 patterns
• Field of View scan
• ±0.1° preset accuracy
• Multilingual menus (English, Spanish, Portuguese, Italian, German,
• French, Russian, Turkish, Arabic, Simplified Chinese, and Korean)
• Password protection
• 16 window blanks, configurable in size
• “Auto Flip” feature rotates camera 180° at bottom of tilt travel
• Configurable park with actions
• Proportional pan/tilt continually decreases pan/tilt speeds in proportion to depth of zoom

ANALYTICS BEHAVIORS

• Camera Sabotage: Detects contrast changes in the field of view. An alarm is triggered if the lens is obstructed by spray paint, a cloth, or a lens cap. Any unauthorized repositioning of the camera also triggers an alarm.
• Motion: Generates an alarm in a high traffic area when a person or object moves.

VIDEO

• Video Encoding: H.264 High, Main, or H.265 Main, MJPEG
• Video Streams: Up to 3 simultaneousstreams;the second and third stream isvariable based on the setup of the primary stream
• Frame Rate: Up to 60, 50, 30, 25, 20, 16.67, 15, 12.5, 10, 7.5, 5, 3, 2,1 (depending on the coding, resolution, and stream configuration)
• Scan Type: Progressive

NETWORK

• Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), ARP,ICMP,UPnP,DNS,DHCP,RTP,RTSP,NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, and 802.1x (EAP)
• Users:
  • Unicast Up to 5 simultaneous users depending on resolution settings (2 guaranteed streams)
  • Multicast Unlimited users H.264 or H.265
• Security Access: Password protected
• Secure Transmission: Transport Layer Security (TLS 1.2)
• Software Interface: Web browser view and setup
• Pelco System Integration: VideoXpert, Endura 2.0 (or later), Digital Sentry 7.3 (or later)
• Open API: Pelco API or ONVIF Profile G, Profile S, Profile Q, and Profile T
• Mobile Application: Integrated to Pelco Mobile App
• Video Analytics: Simple motion detection and camera sabotage
• Local Storage: Micro SDHC/SDXC slot (card not included), up to 2 TB; Capture 1–5–10 second video clips on camera sabotage, motion detection, or alarm input; record video continuously in the case of network outage with option to overwrite; access video through FTP protocol and ONVIF Profile G

MINIMUM SYSTEM REQUIREMENTS

Web Browser Google Chrome 61.0 (or later), Internet Explorer ® 8.0 (or later) or Firefox 3.5 (or later)

ANALYTICS

Required Systems for Pelco Analytics:

• Pelco Interface: VideoXpert and Digital Sentry, WS5200 Advanced System Management Software on an Endura 2.0 (or later) system
• Open API: The Pelco API can transmit behavior alarm data to third-party applications, available at pdn.pelco.com

PELCO’S SMART COMPRESSION TECHNOLOGY

Pelco’s Smart Compression Technology lowers bandwidth and storage requirements by up to 70%. Our technology allows the user to make intelligent decisions regarding storage savings and image quality.

Pelco’s Smart Compression Technology dynamically analyzes motion occurring within live video in real-time, to intelligently compress the information you don’t need, while retaining details with clear quality in the areas that are important in the scene. By enabling Dynamic GOP, an added feature of Smart Compression, the number of I-frames are automatically reduced in scenes with low motion. Based on the complexity of scenes and motion occurring, such as a store room that has limited entry and exit, up to 70% bandwidth savings can be achieved.

GENERAL

• Construction: Aluminum
• Cable Entry (Back Box): Pendant Through 1.5-inch NPT pendant mount
• Clock Real: time clock
• IR Wavelength: 850 nm
• IR Range: 150 m
• Operating temperature –40°C to 60°C
• Operating humidity 0 to 90% RH (condensing)

ALARM

• Unsupervised: Detects open or closed alarm state
• Input: Two alarms, 3.5 VDC maximum, 3.5 mA maximum
• Relay Output: Two outputs, ±30 VDC maximum, 150 mA maximum

AUDIO

• Input/Output: Line level/external microphone input; 1Vp-p maximum signal level
• Streaming: Embedded audio

MECHANICAL

• Variable Speed: 0.1° to 100°/sec (manual pan speed)
• Preset Accuracy: ±0.1°
• Pan Movement: 360° continuous pan rotation
• Vertical Tilt: +15° to –90° degrees
• Maximum Pan Speed: Up to 300° per second
• Maximum Tilt Speed: Up to 145° per second
• Manual Pan/Tilt Speeds: Pan 0.1° to 100°/sec manual operation; Tilt 0.1° to 50°/sec manual operation
• Preset Speeds: Pan 300°/sec; Tilt 145°/sec

ELECTRICAL

Ports:

• RJ-45 connector for 100Base-TX
• Auto MDI/MDI-X
• Autonegotiate/manual setting

Cabling Type: Cat5e or better for 100Base-TX

Input Voltage:

• 21 to 32 VAC; 24 VAC nominal
• 38 to 57 VDC; 48 VDC nominal

Input Power:

• 24 VAC: 1 A (24 VA) maximum (without IR, PTZ, and heater); 3.3 A (80 VA) maximum (with IR, PTZ, and heater)
• 48 VDC: 0.46 A (22 W) maximum (without IR, PTZ, and heater); 1.2 A (57 W) maximum (with IR, PTZ, and heater)
• 802.3bt (56 V): 0.37 A (20 W) maximum (without IR, PTZ, and heater); 1.1 A (61 W) maximum (with IR, PTZ, and heater)
