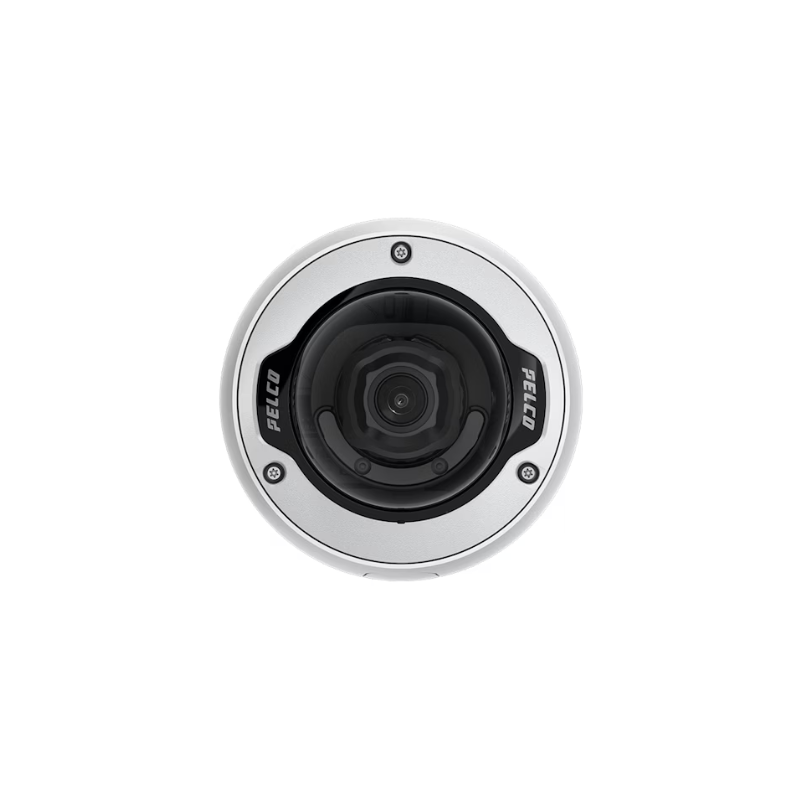

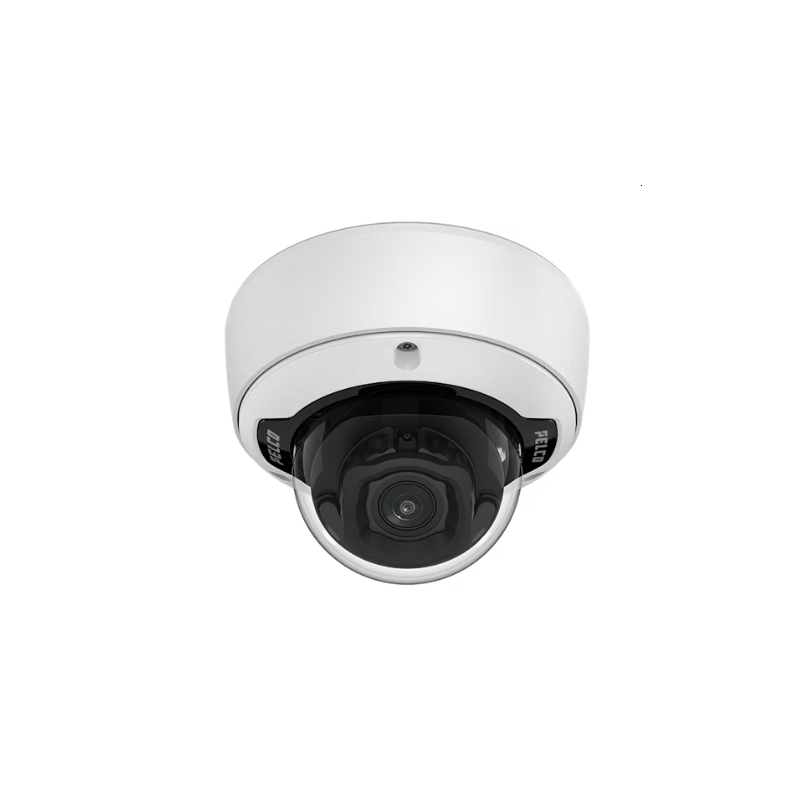

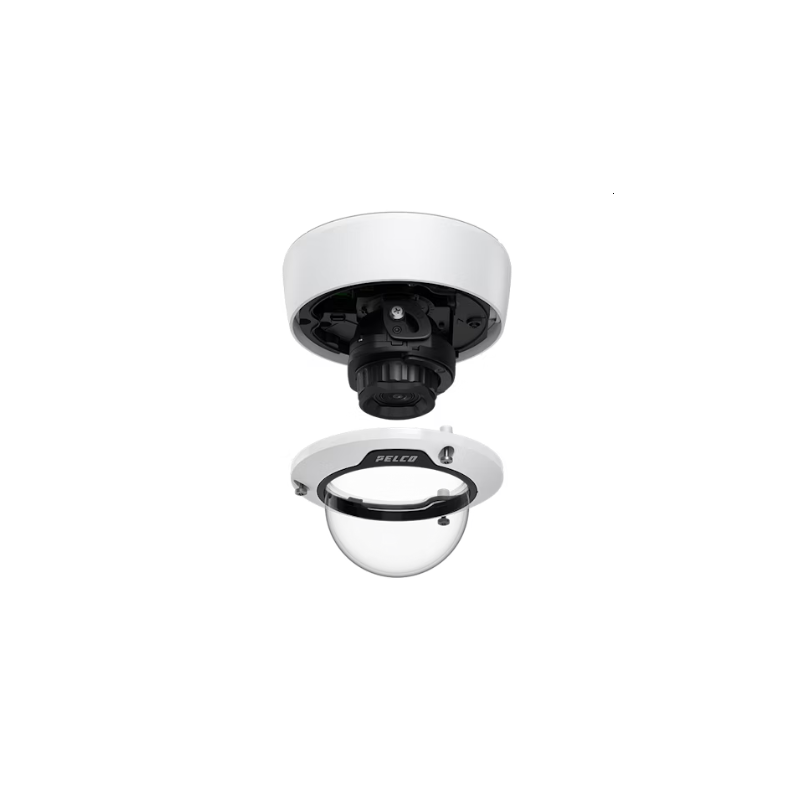

SRXP4-5V10-EMD-IR dome camera, 5Mp, 3.4-10.5mm, Sarix Pro Series 4

Product reference: CASRXP4-5V10-EMD-IR

The Sarix Professional 4 Series dome is a versatile security camera with enhanced imaging capabilities. The camera can produce high-quality video with sharp details, even in low-light conditions. Equipped with Pelco Smart Analytics, powered by Motorola Solutions, this camera can detect critical events and increase your security teams’ productivity by expediting real-time responses and forensic investigations.

  • 5 MP
  • Wide Dynamic Range up to 130db
  • Autofocus motorized remote zoom lens
  • Integrated adaptive IR illumination up to 40m
  • IP66/67 & Type 4x for environmental ruggedness
Read more
At stores prices may vary
Price:
€833.71
€689.02 tax excl.

Product information

With security challenges becoming increasingly complex, it's more important than ever to future-proof your site. Enhance your security infrastructure with the cutting-edge Sarix Professional 4 Series camera designed to capture activity in high-definition. A clear understanding of what is happening onsite elicits more informed decisions, faster responses and produces necessary evidence to support any incident requiring further review. Obtain more accurate insights and reduce the risk of missing critical events utilizing a camera that produces impeccable imaging quality.

Features

  • Crystal Clear Evidence. Produce sharp video footage to enable greater analytic accuracy, so no detail goes unnoticed, with 5 MP. The camera provides clear, detailed images, enabling better identification of individuals or incidences.
  • Low Light Visibility. Security threats are unpredictable. Decrease the chances of missing critical events without compromising image quality by adapting to environments with varying lighting conditions, using True Wide Dynamic Range (WDR) and Adaptive IR technology. Activate IR technology only when needed to optimize energy usage and savings.
  • Informative Insights. Reduce false alarm fatigue and enable faster responses with added Pelco Smart Analytics, powered by Motorola Solutions. Prevent threats from compromising your site by running on-camera AI analytics to automatically detect and classify both humans and vehicles.
  • Protect Your Assets. When it comes to security, there’s no such thing as being overprotected. Have a piece of mind knowing that the TAA & NDAA-compliant, Sarix Professional 4 Series is equipped with Pelco’s industry-leading 5-year warranty and an onboard Trusted Platform Module (TPM) and Secure Boot to enhance cybersecurity and reduce identity theft.
  • Built For Your Site. Avoid wasting time and resources ripping and replacing your existing infrastructure. The camera is built on an open system (ONVIF Profile S, G, T & M conformant) for straightforward installation and configuration.
  • Deploy Any Time At Any Place. Available in both dome and bullet variants, choose a solution that works best for your environment. Outdoor models of the camera are IP66/67 and Type 4K rated with an IK10 rating for all models. Rain, sleet or shine, the camera is ready for the challenge.

Video
Vaizdo sensorius 1/2.8” progressive scan CMOS
Formatas  4:3
WDR 130dB WDR On (83 dB WDR Off)
Camera Operating Mode Full Feature/No Video Analytics/High Framerate
Kadrų skaičius (50 Hz/60 Hz): 25 fps/30 fps
Streaming Resolutions

Primary Stream: 2592x1944, 2240x1680, 2560x1440, 1920x1080

Secondary Stream: 1600x1200, 1440x1080, 1920x1080, 1280x960, 1280x720, 800x600, 768x432, 640x480, 640x360, 512x384, 512x288, 384x288, 368x264, 384x216

Tertiary Stream: 640x360, 512x384, 512x288, 384x288, 368x264, 384x216

3D Noise Reduction Filter Supported
Lens and IR Illumination
IR Illumination Max Distance (high power 850 nm LEDs) 40 m
Minimum Illumination (at 33 ms shutter speed)

With IR: 0 lux in monochrome mode; Without IR: 0.04 lux in color mode; 0.02 lux in monochrome mode

Horizontal Angle of View

95° - 28°

Vertical Angle of View

69° - 21°

Max Aperture

F1.6

Image Control
Image Compression Method H.264, H.265, Motion JPEG, Pelco Smart Compression
Streaming Multi-stream H.264, Multi-stream H.265, Motion JPEG
Electronic Shutter Control Automatic, Manual (1/7.5 to 1/30000 sec)
Day/Night Control Automatic, Manual
Flicker Control 50 Hz, 60 Hz
Iris Control P-Iris
White Balance Automatic, Manual
Backlight Compensation Adjustable
Image Rotation  0°,90°, 180°, 270° including Corridor Mode
Privacy Zones Up to 64 zones
Network
Network 100BASE-TX
Cabling Type CAT5
Network RJ45 jungtis
ONVIF ONVIF® compliance Profile S, Profile T, Profile G, and Profile M
Security Password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1x port based authentication, FIPS 140-2 L1 (with optional camera license), onboard FIPS 140-2 L3 certified TPM Secure Boot
Protocols IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Zeroconf, ARP, HSTS
Streaming Protocols RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP
Device Management Protocols SNMP v2c, SNMP v3
Onboard Storage microSD/microSDHC/microSDXC slot – video speed class card required. Class V10 or better recommended. 1 TB card tested.
USB Port USB 2.0
Auxiliary I/O
Audio Compression Method G.711 PCM 8 kHz, Opus
Audio Input/Output Line level I/O
External I/O Terminals Alarm In, Alarm Out
Mechanical
Dimensions

Surface Mount D 156 mm × H 116 mm

In-Ceiling Mount D 174 mm × H 165 mm

Pendant Mount D 155 mm × H 169 mm

Weight 0.81 kg (surface mount), 0,80 kg (in-ceiling mount), 1,07 kg (pendant mount)
Body and housing Polycarbonate
Finish Plastic, injection molded, Pantone 427C
Adjustment Range 360° pan, 30°–95° tilt (recommended), 8°–95° tilt (maximum), ±180° azimuth
Electrical
Power source PoE: IEEE 802.3af Class 3 compliant, 12VDC Aux
IR Illuminator Behaviour IR illuminator will turn off if the temperature is 60°C (140°F) or higher.
RTC Battery Backup 3V manganese lithium
PoE 13 W max
Memory 1GB RAM, 512MB Flash
Environmental
Operating Temperature -40°C to +60°C
Storage Temperature -10°C to +70°C
Humidity 0 - 95% non-condensing

Features

Lens Motorized lens
Resolution 5MP
Camera type Dome
IR distance ≤ 40 m
Features Support MicroSD ≤ 512GB
