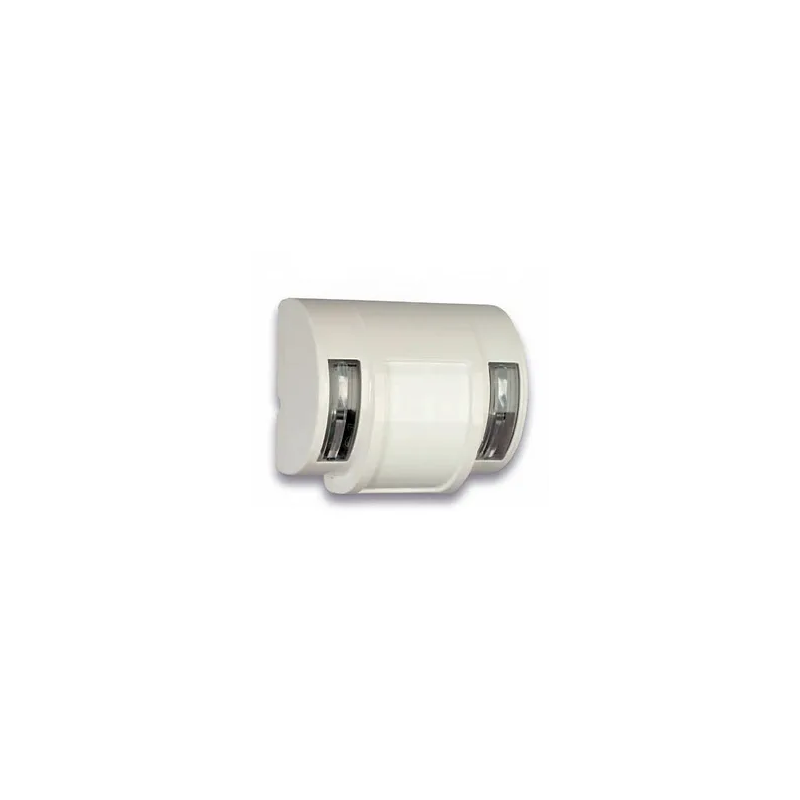

Curtain PIR Detector Patrol 301 with Quad element pyro sensor

PIR Detectors

Product reference: DAPATROL301

PATROL-301 IS A STYLISH AND RELIABLE DETECTOR TO PROVIDE THE PROFESSIONAL WINDOWS, ALL-GLASS WALLS, DOORS AND OTHER OPENINGS PROTECTION.

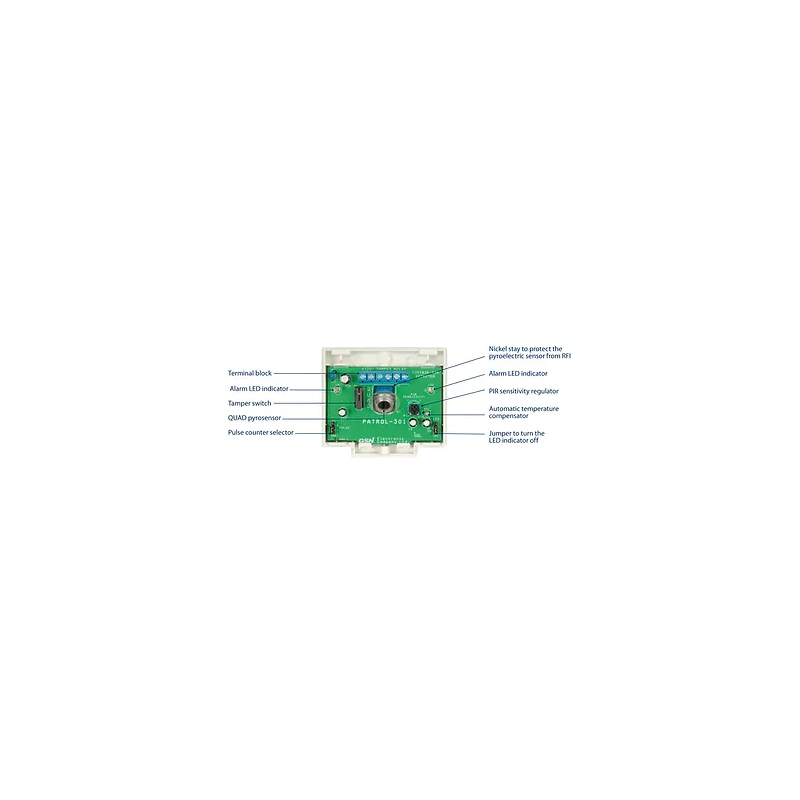

PATROL-301, equipped with the QUAD PIR sensor, creates high density detection zone, eliminating undetectable area, and allows the best possible detection of a moving person in an alarm protected object.

At stores prices may vary

Price:

€18.84

€15.57 tax excl.

Favourite

Product information

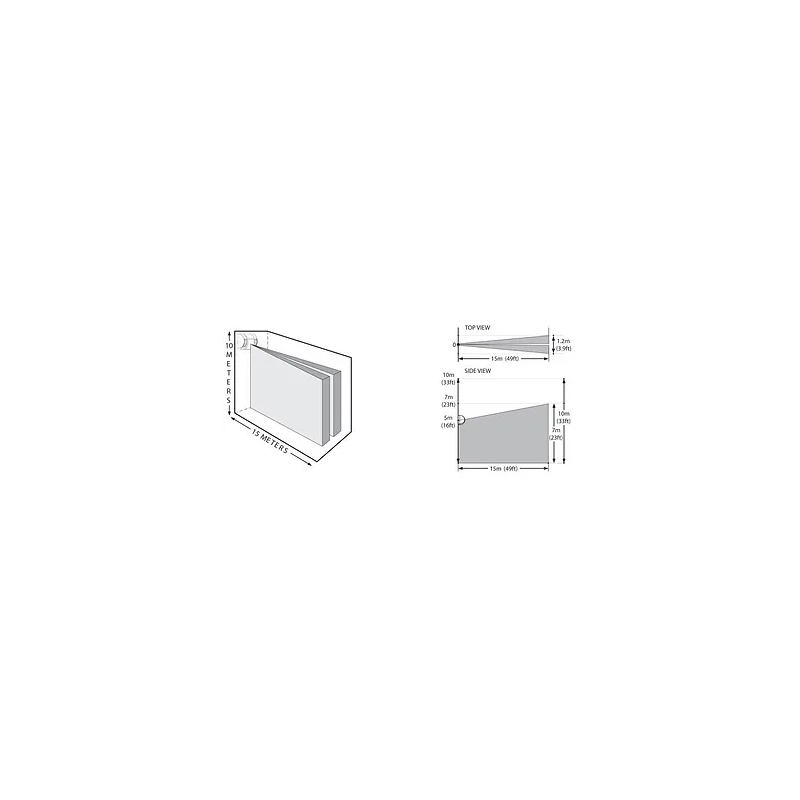

PATROL-301 creates solid curtain coverage of up to 15m length x 10m height and enables extremely accurate detection of humans in the protected area.

PATROL-301 ensures the unrivalled protection level of windows, all-glass walls, doors and other openings in the detection zone and provides reliable security with minimum amount of false alarms.

PATROL-301 is the most elegant curtain-type PIR detector at the modern security market.

Exceptional Direct and Reflected Light Protection. PATROL-301 is equipped with the original Fresnel lens, which most effectively collects IR energy from the detected area and focuses it directly onto the pyro sensor. By using special “POLY IR” lens material that reduces the negative effects of visible light, the PATROL-301 eliminates false alarms caused by exposure to direct or reflected sunlight or car headlights.

Specifications:

Detection speed range:	0.2 - 3.0m/sec;
Power input:	8.5 - 16VDC;
Current consumption:
In stand-by mode:	12.2mA;
In alarm mode with LED on:	13.2mA;
In alarm mode with LED off:	8.2mA;
Pulse mode:	1,2;
Alarm period:	3sec;
Detection range:	15meters;
Installation height:	up to 10meters;
Relay output:	NC; 60V; 120mA; 16Ω;
Warm up period:	40sec;
Reset time:	5±1sec;
Light immunity:	no less than 10000Lux;
Opening protection:	TAMPER SWITCH;
Operating temperature range:	-30ºC +50ºC;
Storage temperature range:	-50ºC +80ºC;
RFI immunity:	30V/m at a frequency range 10MHz - 1000MHz;
EMI immunity:	50000V;
Dimensions:	75mm x 66mm x 49mm;
Weight:	106 g

Features

Type	PIR
Type	Wall
Pet imune	No
