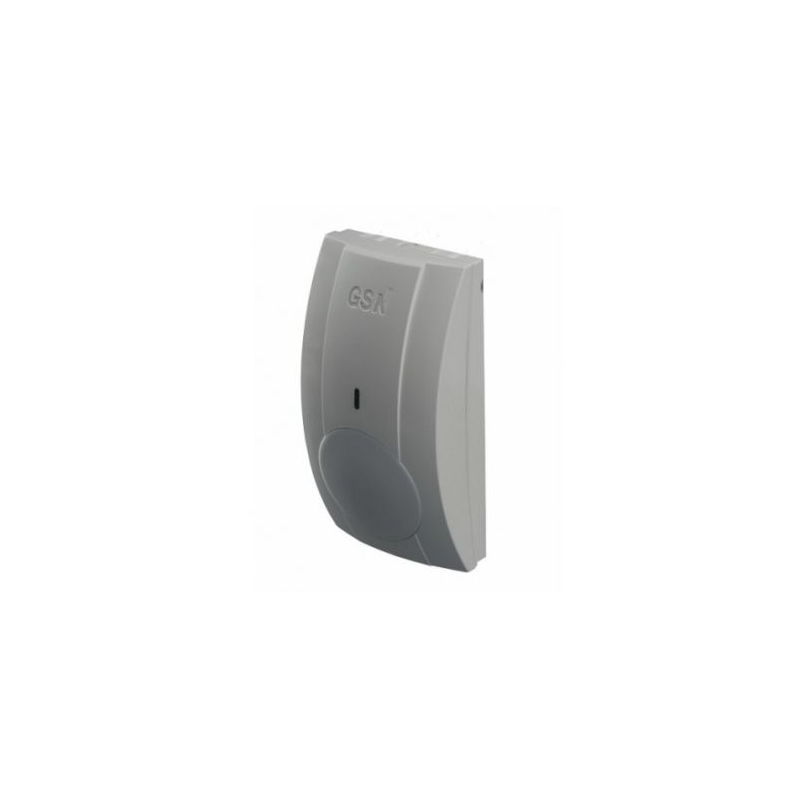

PIR detector PATROL 203 PET

PIR Detectors
Product reference: dapatrol203
  • Passive Infrared Detector With Pet Immunity Up To 20kg
  • Immune To Pets Up To 20kg
  • High-Tech Design
  • High Rfi & Emi Immunity
  • Pir Sensitivity Adjustment
  • Animal Weight Regulator 10/20kg
  • High Light Immunity
  • Hermetically Sealed Pyroelectric Sensor
  • Low Operating Temperature
  • Automatic Temperature Compensation
Read more
At stores prices may vary
Price:
€13.45
€11.12 tax excl.
Favourite

Product information

Specifications:

Input voltage 8.5-16VDC
Current consumption in standby mode 12mA
Current consumption in alarm mode 16.5mА
Warm up period 60sec
Detection range 15.6m x 120º
Detection speed range 0.3 – 3m/sec
Relay output NC; 60V; 100mA; 16Ω
Tamper output NC; 10Ω
Alarm period 3sec
Reset time 5 ± 1sec
PET mode 10/20kg
Installation height 2.0 – 2.5m
Light immunity without sunshield filter no less than 6500 Lux
Light immunity with sunshield filter    more than 30 000 Lux
Operating temperature range – 30ºC +60ºC
Storage temperature range – 50ºC +80ºC
RFI immunity 30V/м at a frequency range 30MHz-1GH
EMI immunity 50 000V
Dimension 54mm x 33mm x 99mm
Weight 75gr

Features

Type PIR
Type Wall
Pet imune Yes
