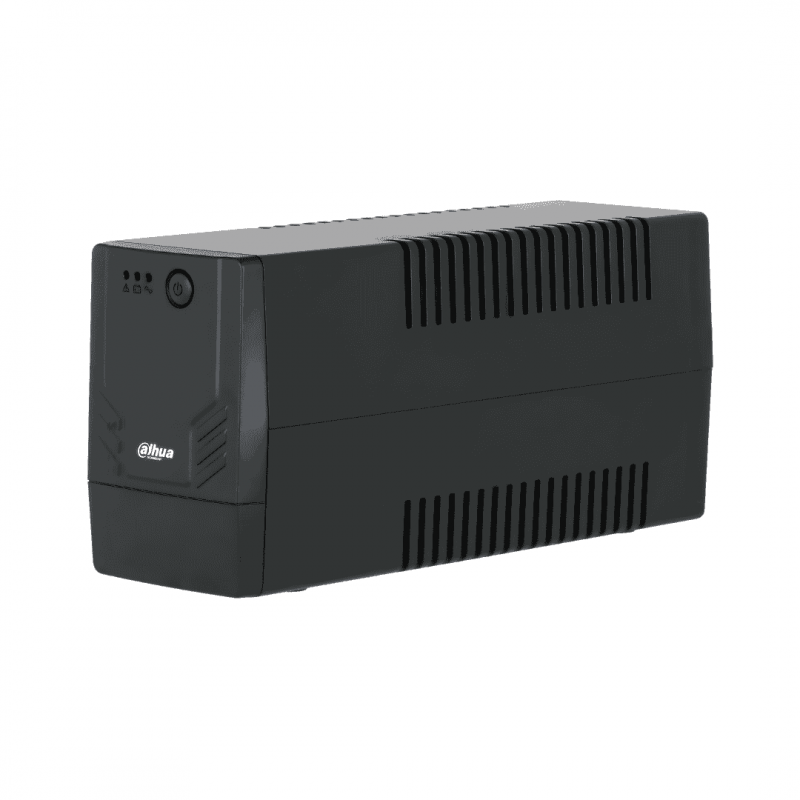

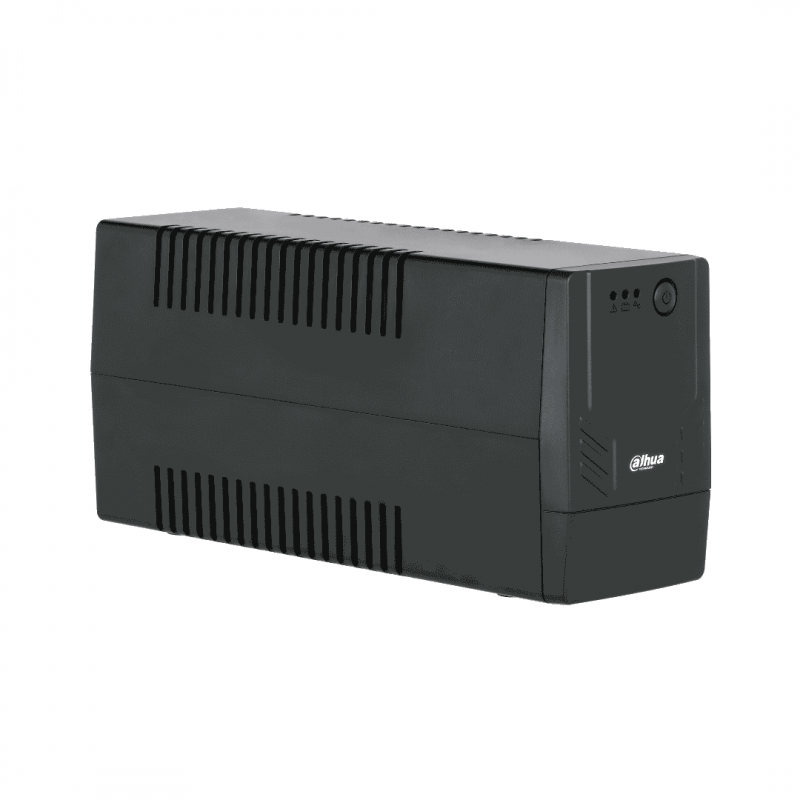

PFM3350-1000 Uninterruptible Power Supply, 1000VA, 600W, 2x Schuko

Power Supply

Product reference: KOPFM3350-1000

> Comes with a wide voltage input range of 170–280 VAC, and easily adapts to fluctuations and various grid environments.

> Operates quietly for a serene environment.

> Offers digital voltage stabilization.

> Fast charging in just 4 hours.

> Rapid switching of 4-8 milliseconds.

> Protects against overload, short circuit, overcharging, and over-discharge.

At stores prices may vary

Price:

€72.60

€60.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

PFM3350-1000 Uninterruptible Power Supply, 1000VA, 600W, 2x Schuko

The uninterruptible power supply (UPS) delivers highly stable output performance. It easily adapts to complex conditions such as fluctuations in the mains power grid and provides protection against overvoltage and overload. Designed for convenience, it features a plug-and-play setup, making it easy to install and operate.

Scene of use: suitable for indoor use, with an operating temperature range of 0°C to 40°C, ambient humidity not exceeding 90%, and no condensation allowed.

Capacity

1000 VA, 600 W

Input

Input Voltage

170–280 VAC

Input Current

4.8 A

Rated Input Frequency

50/60 Hz

Power Factor

≥0.6

Output

Output Voltage

230 VAC by default

Output Current

4.6 A

Output Power

1000 VA, 600 W

Output Frequency

50/60Hz

Switch Time

Typical 4 ms–8 ms

Output Wave

AC Mode: Pure sine wave;
Battery Mode: Simulated sine wave

Battery

Built-in Battery

Yes

Battery Type

Lead-acid battery

Qty.of Battery

1 × 9Ah

Charging Current

1 A

Limited Charge Voltage

13.7 V/pcs

Charging Time

4H–6H to 90%

Max Travel Time on Full Battery

3 min

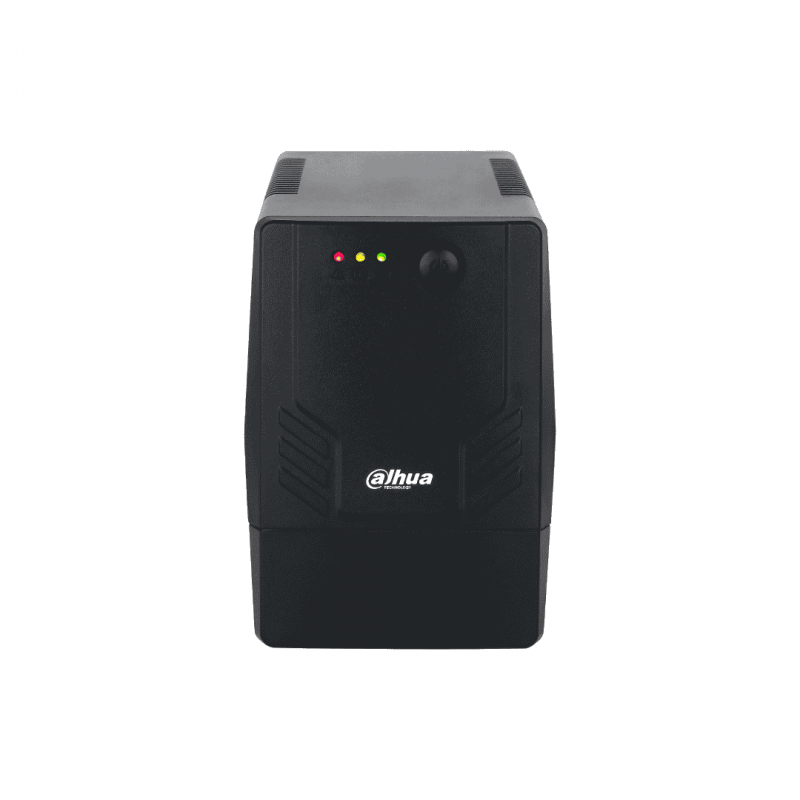

Indicators

Status Indicator Light

Battery mode: Yellow light flashes once every 10 seconds
Mains power mode: Green light solid on
Fault mode: Red light solid on

Alarm

Alarm Indicator

Battery Mode: Beeps once every 10 seconds;
Low Battery: Beeps once every second;
Overload: Beeps once every 0.5 seconds;
Battery Replacement: Beeps once every 2 seconds;
Fault: Beeps continuously

Protection

Types of Protection

Protects against overload, battery overcharge, and over-discharge

Overload Capacity

AC Mode Overload: 110% + 20%/ – 10%. The UPS shuts down after 5 minutes and reports an overload fault;
AC Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault;
Battery Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault

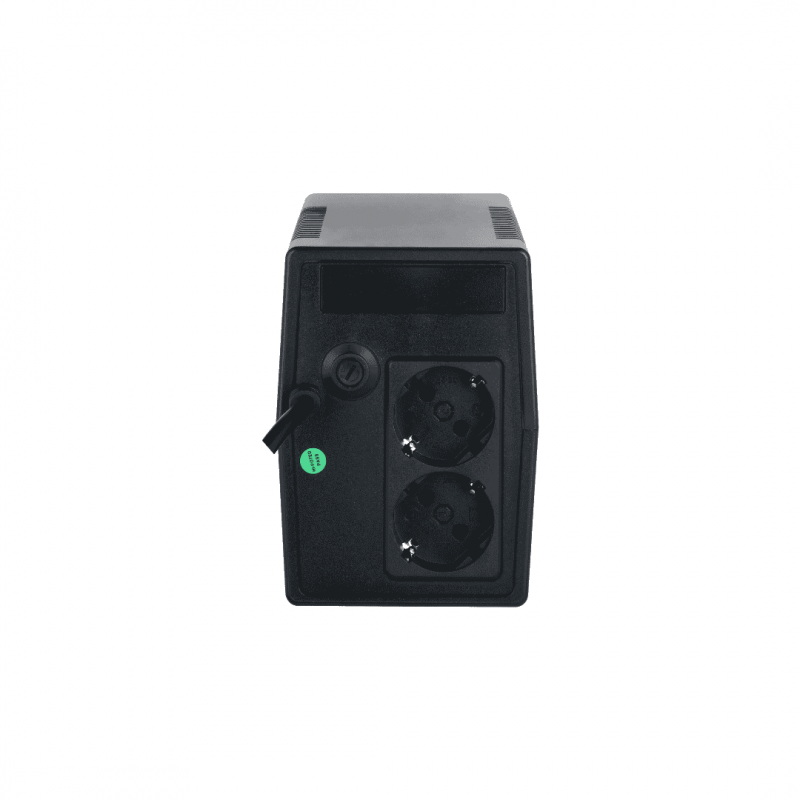

Plugs and Sockets

Input Plug

European standard

Input Cable Length

1.2 m (3.94 ft)

Socket Standard

European standard

Number of Output Sockets

Other

Built-in Fan

Structure

Product Dimensions

298.4 mm × 101.5 mm × 142.2 mm (11.75" × 4" × 5.6") (L × W × H)

Packaging Dimensions

342 mm × 142 mm × 223 mm (13.46" × 5.59" × 8.78") (L × W × H)

Casing Material

Plastic

Appearance Color

Black

Net Weight

4.9 kg (10.80 lb)

Gross Weight

5.1 kg (11.24 lb)

Environment

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

0%–90%, non-condensing

Storage Temperature

–15 °C to +55 °C (+5 °F to +131 °F)

Storage Humidity

0%–90%, non-condensing

Certifications

CE LVD: EN IEC 62040-1: 2019+A11: 2021;
CE EMC:
EN 62040-2: 2006;
EN IEC 62040-2: 2018;
EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024;
EN 61000-3-3: 2013+A1: 2019+A2: 2021
