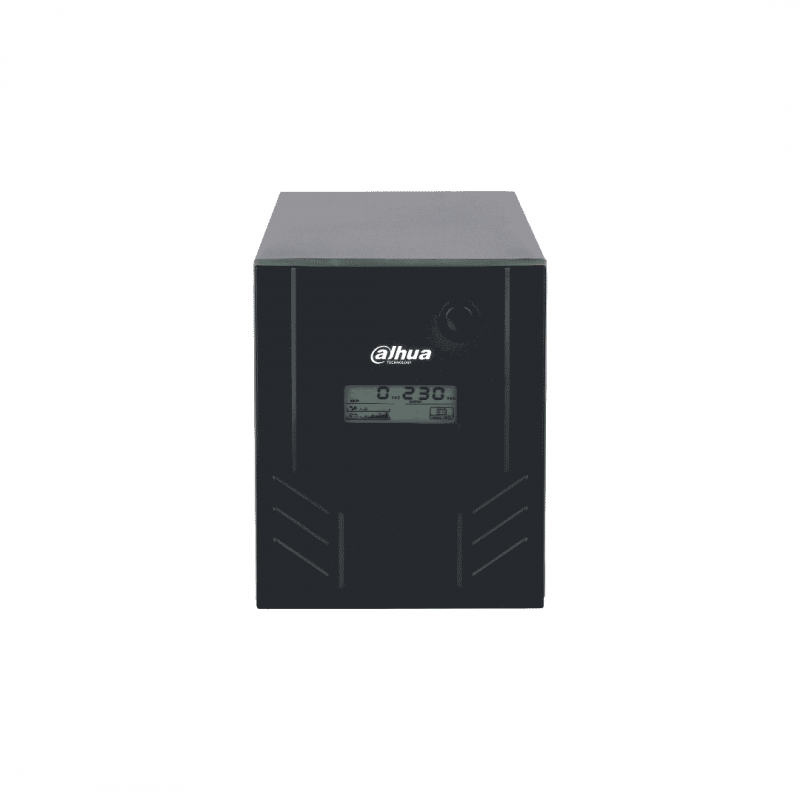

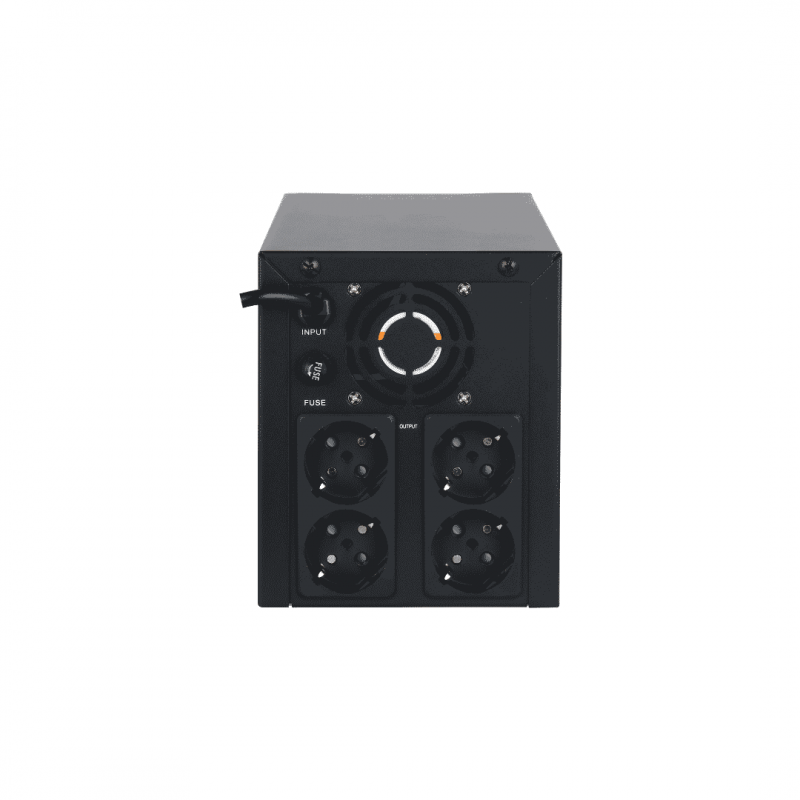

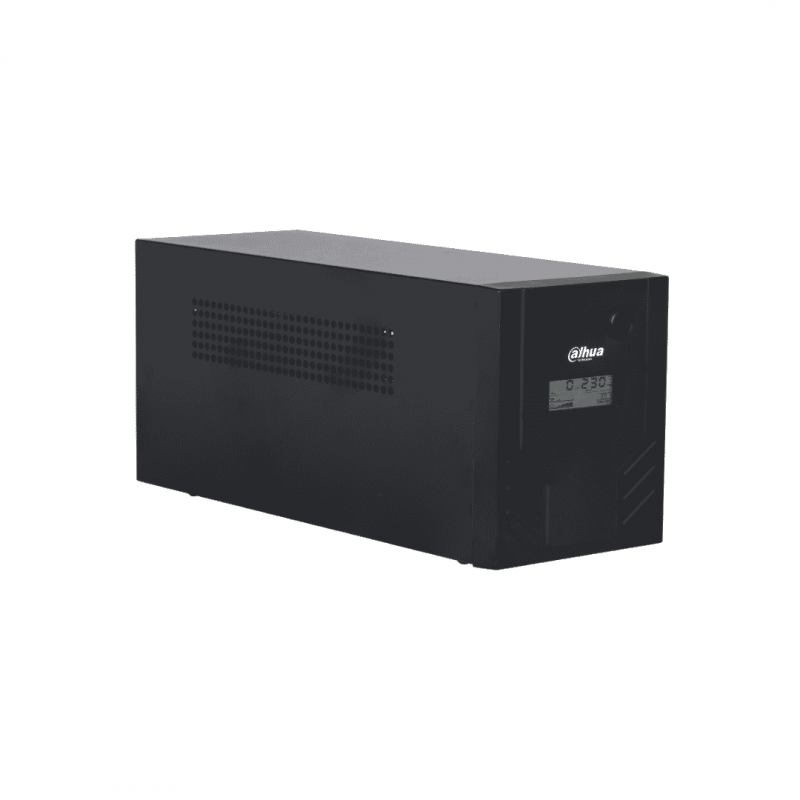

PFM3350-2000L Uninterruptible Power Supply, 2000VA, 1200W, 2x Schuko, LCD, Dahua

Power Supply

Product reference: KOPFM3350-2000L

European Standard 230V - Line-interactive 2000VA/1200W Uninterruptible Power Supply

> Comes with a wide voltage input range of 170–280 VAC, and easily adapts to fluctuations and various grid environments.

> Operates quietly for a serene environment.

> Offers digital voltage stabilization and automatically adjusts the voltage.

> Fast charging in just 4 hours.

> Rapid switching of 4-8 milliseconds.

> Protects against overload, short circuit, overcharging, and over-discharge.

At stores prices may vary

Price:

€205.70

€170.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

PFM3350-2000L Uninterruptible Power Supply, 2000VA, 1200W, 2x Schuko, LCD, Dahua

The Uninterruptible Power Supply (UPS) delivers stable and reliable performance, providing a highly consistent output voltage under various operating conditions. It easily adapts to power fluctuations and complex grid environments, while built-in overvoltage and overload protection helps safeguard connected equipment.

Designed for convenience, the UPS features true Plug & Play functionality, allowing for quick installation and immediate operation without additional configuration.

Application Scenario

The UPS is intended for indoor use in environments with temperatures ranging from 0°C to +40°C and relative humidity levels not exceeding 90% (non-condensing). It is an ideal solution for protecting computers, networking equipment, video surveillance systems, servers, and other sensitive electronic devices from power interruptions and voltage instability.

Capacity

2000 VA, 1200 W

Input

Input Voltage

170–280 VAC

Input Current

9.5 A

Rated Input Frequency

50/60 Hz

Power Factor

≥0.6

Output

Output Voltage

230 VAC

Output Current

9.2 A

Output Power

2000 VA, 1200 W

Output Frequency

50/60Hz

Switch Time

Typical 4 ms–8 ms

Output Wave

AC Mode: Pure sine wave;
Battery Mode: Simulated sine wave

Battery

Built-in Battery

Yes

Battery Type

Lead-acid battery

Qty.of Battery

2 × 9 Ah

Charging Current

1 A

Limited Charge Voltage

13.7 V/pcs

Charging Time

4–6H to 90%

Screen

Screen Status

AC Mode: Displays both INPUT and OUTPUT as 230 VAC;
Battery Mode: Displays INPUT as 0 VAC; displays OUTPUT as 230 VAC;
Fault Mode: Displays as 0

Alarm

Alarm Indicator

Battery Mode: Beeps once every 10 seconds;
Low Battery: Beeps once every second;
Overload: Beeps once every 0.5 seconds;
Battery Replacement: Beeps once every 2 seconds;
Fault: Beeps continuously

Protection

Types of Protection

Protects against overload, battery overcharge, and over-discharge

Overload Capacity

AC Mode Overload: 110% + 20%/ – 10%. The UPS shuts down after 5 minutes and reports an overload fault;
AC Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault;
Battery Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault

Plugs and Sockets

Input Plug

European standard

Input Cable Length

1.2 m (3.94 ft)

Socket Standard

European standard

Number of Output Sockets

Other

Built-in Fan

Yes

Structure

Product Dimensions

374.5 mm × 138.4 mm × 166.5 mm (14.74" × 5.45" × 6.56") (L × W × H)

Packaging Dimensions

470 mm × 195 mm × 255 mm (18.50" × 7.68" × 10.04") (L × W × H)

Casing Material

Plastic front cover + metal body

Appearance Color

Black

Net Weight

12.2 kg (26.90 lb)

Gross Weight

12.6 kg (27.78 lb)

Environment

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

0%–90%, non-condensing

Storage Temperature

–15 °C to +55 °C (+5 °F to +131 °F)

Storage Humidity

0%–90%, non-condensing

Certifications

CE LVD: EN IEC 62040-1: 2019+A11: 2021;
CE EMC:
EN 62040-2: 2006;
EN IEC 62040-2: 2018;
EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024;
EN 61000-3-3: 2013+A1: 2019+A2: 2021

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
