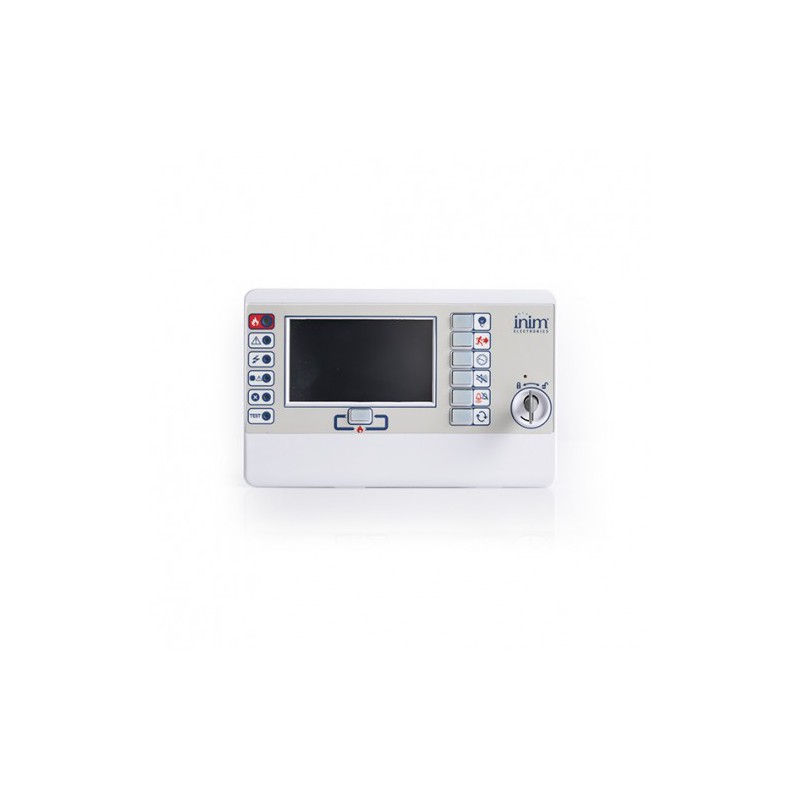

Previdia MAX and Previdia Compact panel repeater CREPE

PREVIDIA Modular Addressable System

Product reference: PSCREPE

Previdia MAX and Previdia Compact panel repeater;
1 fire-extinction channel repeater;
4.3" touchscreen display;
TCP/IP conection for networking;
HORNET+ interface;

In manufacturer warehouse
Ask

Product information

The analogue control panels from the Previdia Compact range are the perfect solution for small to medium installations, they combine the innovative features of the Previdia Max system with user-friendly operation inside a compact cabinet.

Programming from the display through the clear and intuitive user interface minimizes system activation and maintenance times, making Previdia Compact the ideal choice.

Technical specification:

- Compact analogue-addressable control panel, capable of managing 1 loop of 64 points, 1 loop of 240 points or 2 loops of 240 points (depending on the model).

- Multiprotocol, manages Inim, Apollo and Argus security protocols on the loop.

- 1.5 A or 4 A integrated power supply (depending on the model).

- Integrated battery charger of 7 Ah or 17 Ah (depending on the model).

- Sturdy metal cabinet with frontplate in plastic.

- Terminals for the HORNET+ network connection with other control panels or remote keypads integrated on board.

- On-board Ethernet connection for remote management, networking between control panels or connection to BMS monitoring software, MODBUS protocol over TCP-IP available.

- USB port for the configuration.

- Management of a micro SD card for the display of topographic maps, saving and retrieving of configurations, storing of the events log.

- 4 on-board I/O channels configurable as 1 A supervised power outputs, supervised inputs.

- On-board configurable relay.

- 4.3” colour LCD graphic touchscreen.

- Silicone function keys for basic functions.

- 30 multicoloured LEDs included (depending on the model) for signalling the status of the 30 zones, or configurable.

- Management of a gas-extinguishing channel (depending on the model) certified EN12094-1.

- Programmable from the frontplate or via the Previdia/STUDIO configuration software available on the Inim website.

- 1000 configurable zones.

- 1000 groups of outputs for activation logics.

- Logical equations for the definition of the most complex activation conditions.

- Timers for the timed management of activations, bypass operations, etc.

- Log for the last 2000 event.

- Manages up to 100 access codes.

- Customizable display with images, icons indicating the status of the various elements, text and function buttons.

- Management of evacuation matrices.
