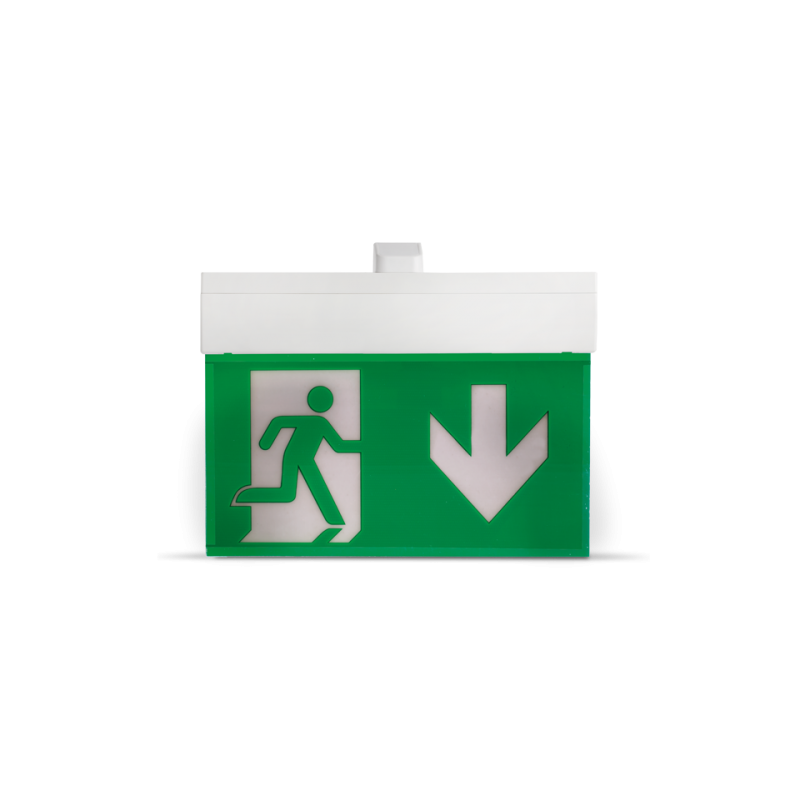

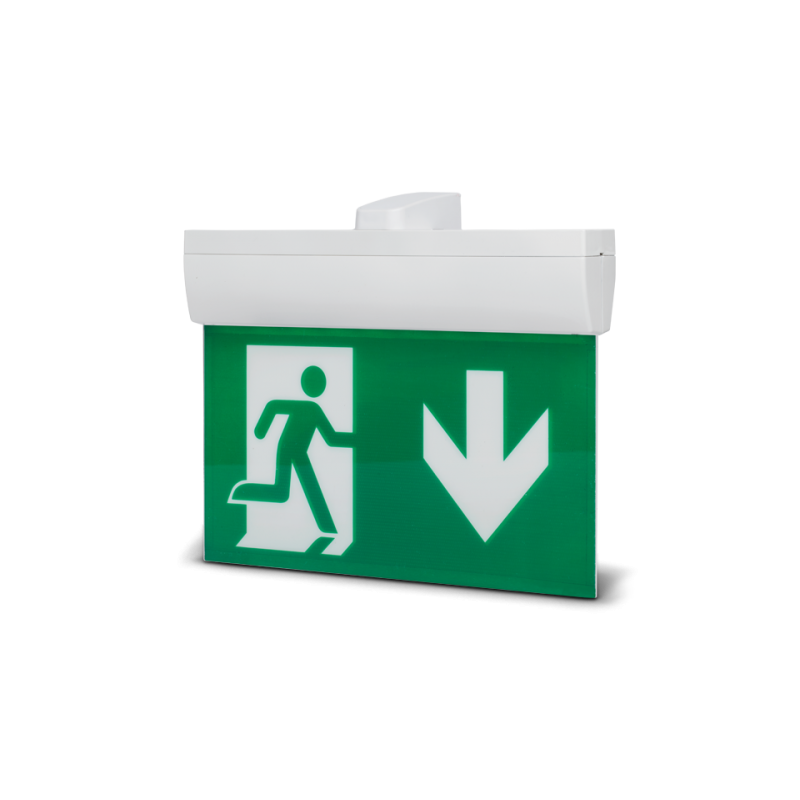

Evacuation light, powered by central battery, HP330

Product reference: PSHP330LA000040

Easily adaptable evacuation lighting;
Suitable for all installation methods;
Sign visibility distance 30 m (conforms to ISO7010 standard);
LED education time >50,000 hours, light color 6000K (cold white).
It is connected to the bus, in case of power failure it is powered by the central system battery (there is no battery in the device);
IP40;
Measurements 322x321.5x41 mm;
The evacuation badge is not included in the package.

Product information

Single bracket suits all mounting applications. Visibility distance 30 meters with international standard compliant safety signs (ISO7010)

description

Product range

HARPER 330

Product type

Signalling luminaires

Functioning type

Maintained

technical specifications

Installation

Surface, flag, ceiling, false ceiling, suspended mounting

Power supply

220/230Vac, 50-60Hz

Battery

LiFePO4 3,2V

Visibility distance

30 m

Insulation class

Color

RAL9003 white

Light source

Color temperature

6000K

Additional info

Dedicated terminal for inhibition function

Dedicated terminal for rest mode

Test button and brightness dimmer

IP grade

IP40

IK grade

IK07

Operating temperature

From 0° to 50°C

Compliant to standards

EN 60598-1, EN 60598-2-22, EN 62471

EN 1838, ISO 3864-4, ISO 7010

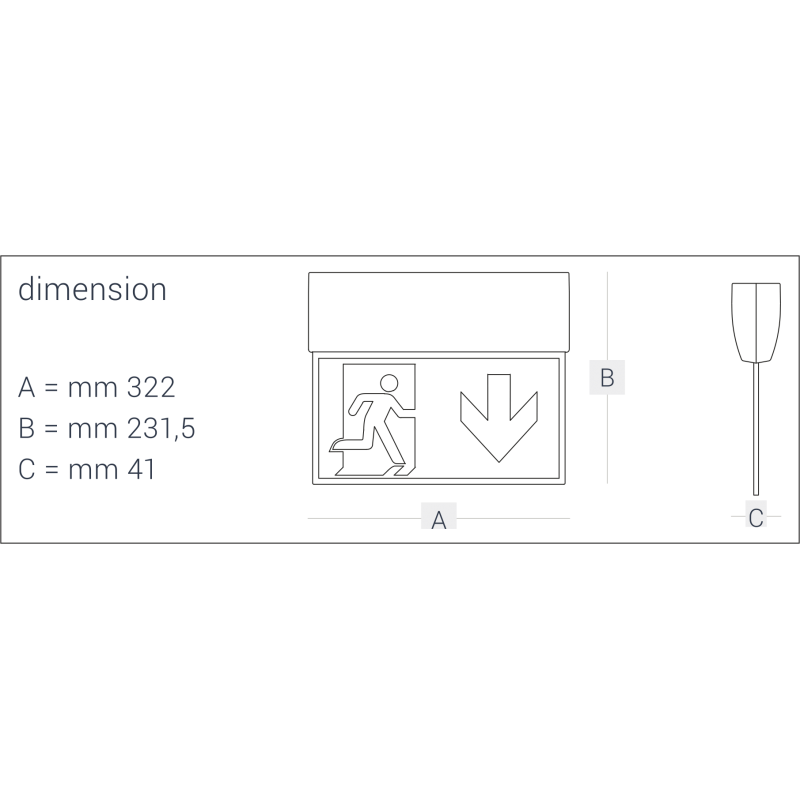

dimensions (mm)

Width

322

Height

231,5

Depth

Sertificates

Manufacturer

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.
